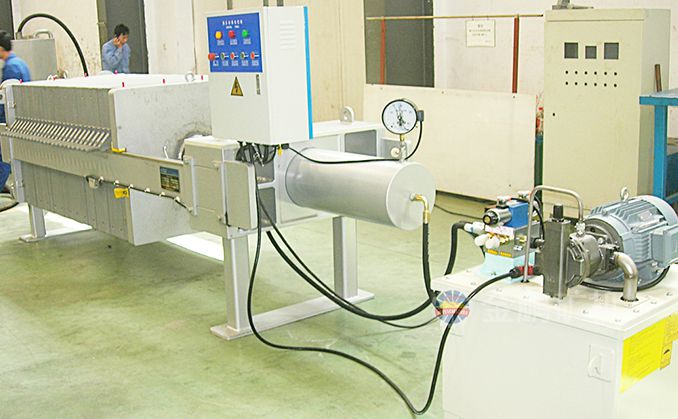

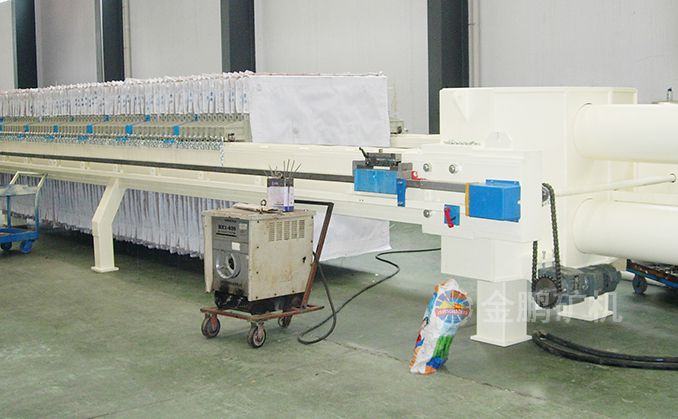

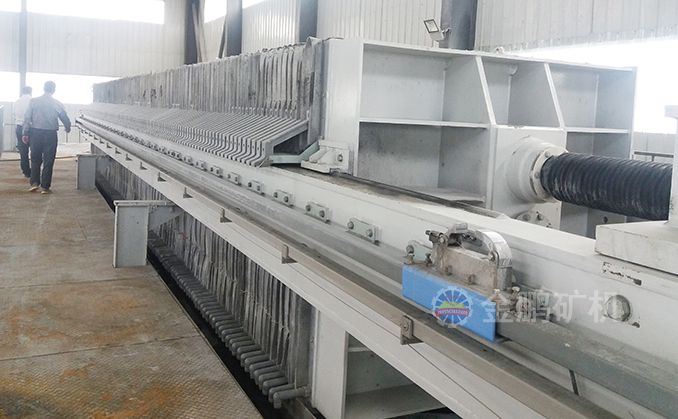

Chamber type filter press

The hydraulic chamber filter press is a kind of intermittent pressurized filter device, which specially used for the solid-liquid separation of suspension, hydraulic chamber filter press has the advantages of excellent separation effect and easy to operate, widely in edible oil, petroleum, chemical, metallurgy, medicine, dyes, food, paper, coal washing and sewage treatment and other industries.

Production capacity : 10-30m³/h

Structure

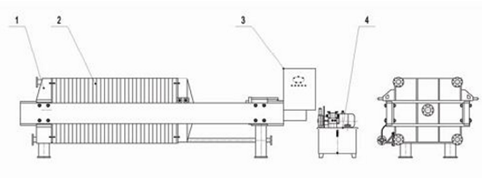

1.rack section  2. Filtering part  3. electrical control part  4. hydraulic part

Hydraulic chamber filter press is mainly composed by four parts: rack section, filtering section, hydraulic system and PLC system. When hydraulic chamber filter press works, piston inner the hydro-cylinder pull the pressing plate, which compresses the filter plate and filter medium between the head plate and end plate forming filter chamber to ensure the filtering effect of the raw materials.

The hydraulic system of hydraulic chamber filter press are composed by hydraulic station, hydraulic cylinder, piston, piston rod and havran card connected the piston rod and the pressing plate, hydraulic station is composed of motor, pump, relief valve(pressure) valve, pressure gauge, oil line and fuel tank.

Advantages

1, plate filter press for flexible adjustment of filter area, can increase or decrease the number of filter area by adjusting the frame.
2, plate and frame filter press typically covers 10-15 square meters, saving work space.
3, advanced structural design, a wide range.
4, easy to manage, easy maintenance.
5, low noise, low power consumption, green.

Parameters

Box pressure filter

model

filter area(㎡)

filter room number

Filter plate specification

filter sample thickness(mm)

filter chamber volume(m³)

filter pressure(Mpa)

anchor center(mm)

boundary dimension(LWH)mm

Motor power(kw)

weight(kg)

XMAZ800U

20

20

800×800×55

25

0.24

0.5

2265

3215×1320×1160

2.2

2073

XMAZ800U

30

30

0.37

0.8

2815

3765×1320×1160

3090

XMAZ800U

40

40

0.49

0.8

3365

4315×1320×1160

3380

XMAZ800U

50

50

0.62

1

3915

4865×1320×1160

3090

XMAZ800U

60

60

0.74

4465

5415×1320×1160

4070

XMAZ800U

70

70

0.87

1.6

5015

5965×1320×1160

4360

XMAZ800U

80

80

1

5565

6515×1320×1160

4700

XMAZ1000U

100

62

1000×1000×60

30

1.48

0.5-1.6

5020

6110×1460×1360

3

6200

XMAZ1000U

120

75

1.8

5800

6890×1460×1360

6710

XMAZ1250U

150

58

1250×1250×65

2.26

5390

6920×1850×1620

11800

XMAZ1250U

180

69

2.7

6100

7630×1850×1620

12700

XMAZ1250U

200

79

3.02

6620

8150×1850×1620

13300

XMAZ1250U

220

84

3.29

7080

8610×1850×1620

13900

XMAZ1250U

250

95

3.73

7290

9320×1850×1620

14800

XMAZ1500U

300

77

1500×1500×70

32

4.76

0.7-1.6

7450

9100×1960×1780

5.5

27000

XMAZ1500U

320

83

5.14

7870

9520×1960×1780

27690

XMAZ1500U

340

88

5.45

8220

9870×1960×1780

28380

XMAZ1500U

350

90

1500×1500×70

5.58

8360

10010×1960×1780

28730

XMAZ1500U

380

98

6.08

8920

10570×1960×1780

29760

XMAZ1500U

400

103

6.39

9270

10920×1960×1780

30450

XMAZ1500U

450

116

7.21

10180

11830×1960×1780

32170

XMAZ1500U

500

128

7.96

11020

12670×1960×1780

33890
