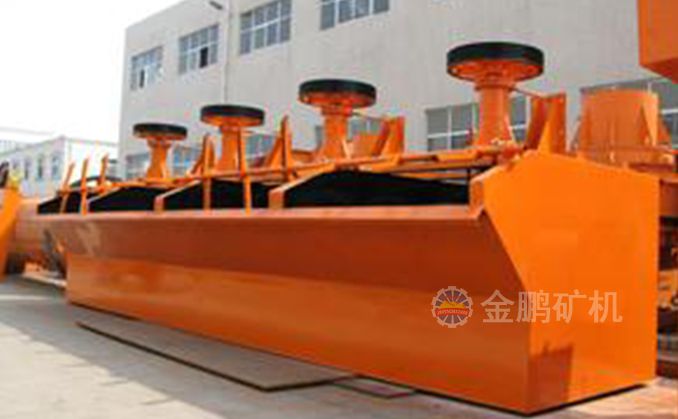

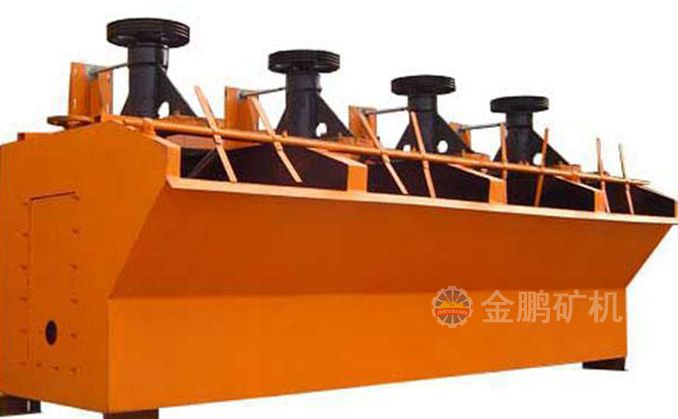

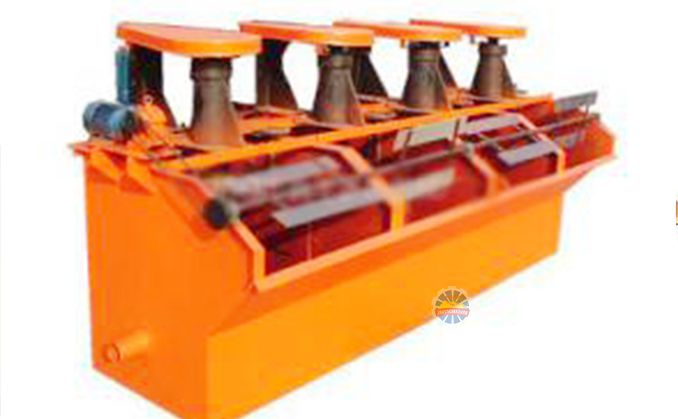

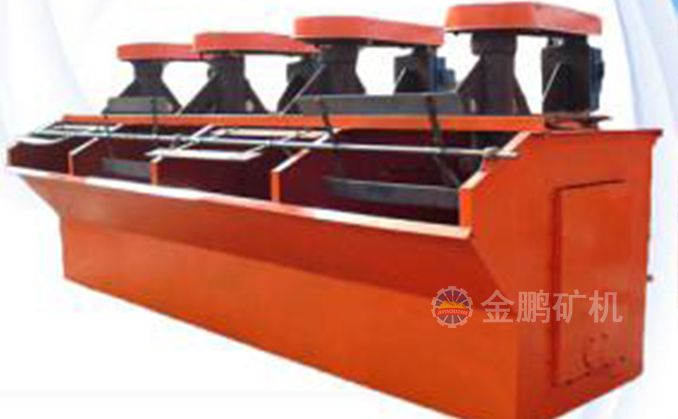

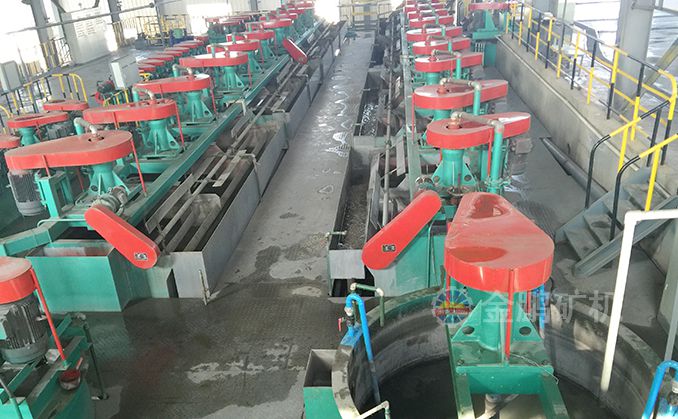

GF Flotation machine

GF flotation machineadopts creative forward tank, double side blades of water wheels, draft tube and the false bottom device, structure is simple and easy to configure. GF flotation machine ,it can be used as roughing and scavenging.

Production capacity : GF flotation machineadopts creative forward tank, double side blades of water wheels, draft tube and the false bottom device, structure is simple and easy to configure. GF flotation machine ,it can be used as roughing and scavenging.

Send Email : [email protected]

Structure


1. impeller  2. cover board  3. center cylinder  4. cell body  5. Bearing  6. electric motor

GF flotation machine worfks, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

Advantages

1. Slurry cell circulation is good, stable surface, no turn of flowers.

2. Low power consumption, compared with the same specifications similar flotation machine power savings at 15% -20%, self-slurry suction and self-air suction

3. Less damages to impeller and stator , long life to use.

Parameters

GF Flotation machine

Model

Volume(m3)

Tank size

Motor Power(kw)

Production capacity(m3/min)

Inspiratory capacity(m3/m2.min)

Scraper motor power(kw)

weight(kg)

length ×width × height(m×m×m)

GF-0.35

0.35

0.7×0.7×0.73

1.5

0.1-0.2

1.2

0.75

470

GF-0.7

0.7

0.9×0.9×0.9

3

0.1-0.4

1.2

1.1

932

GF-1.1

1.1

1.1×1.1×1.0

5

0.2-0.5

1.2

1.1

1370

GF-2

2

1.40×1.40×1.15

7.5

0.3-1.0

1.2

1.5

1750

GF-3

3

1.50×1.85×1.20

11

0.5-1.5

1.2

1.5

2230

GF-4

4

1.60×2.15×1.25

15

0.5-2.0

1.2

1.5

2585

GF-6

6

2.0×2.5×1.3

22

1.0-3.0

1.2

1.5

3300

GF-8

8

2.2×2.9×1.4

30

1.0-4.0

1.2

1.5

4130

GF-10

10

2.2×2.9×1.7

30

2.0-6.0

1.2

1.5

4500

GF-16

16

2.85×3.80×1.70

45

3.0-8.0

1.2

2.2

8320

GF-20

20

2.85×3.80×2.00

45

4.0-10.0

1.2

2.2

8670

GF-24

24

3.15×4.15×2.00

55

5.0-12.0

1.2

2.2

8970

GF-28

28

3.15×4.15×2.30

55

5.0-14.0

1.2

2.2

9480

GF-42

42

3.60×4.80×2.65

75

8.0-20.0

1.2

3

19400
