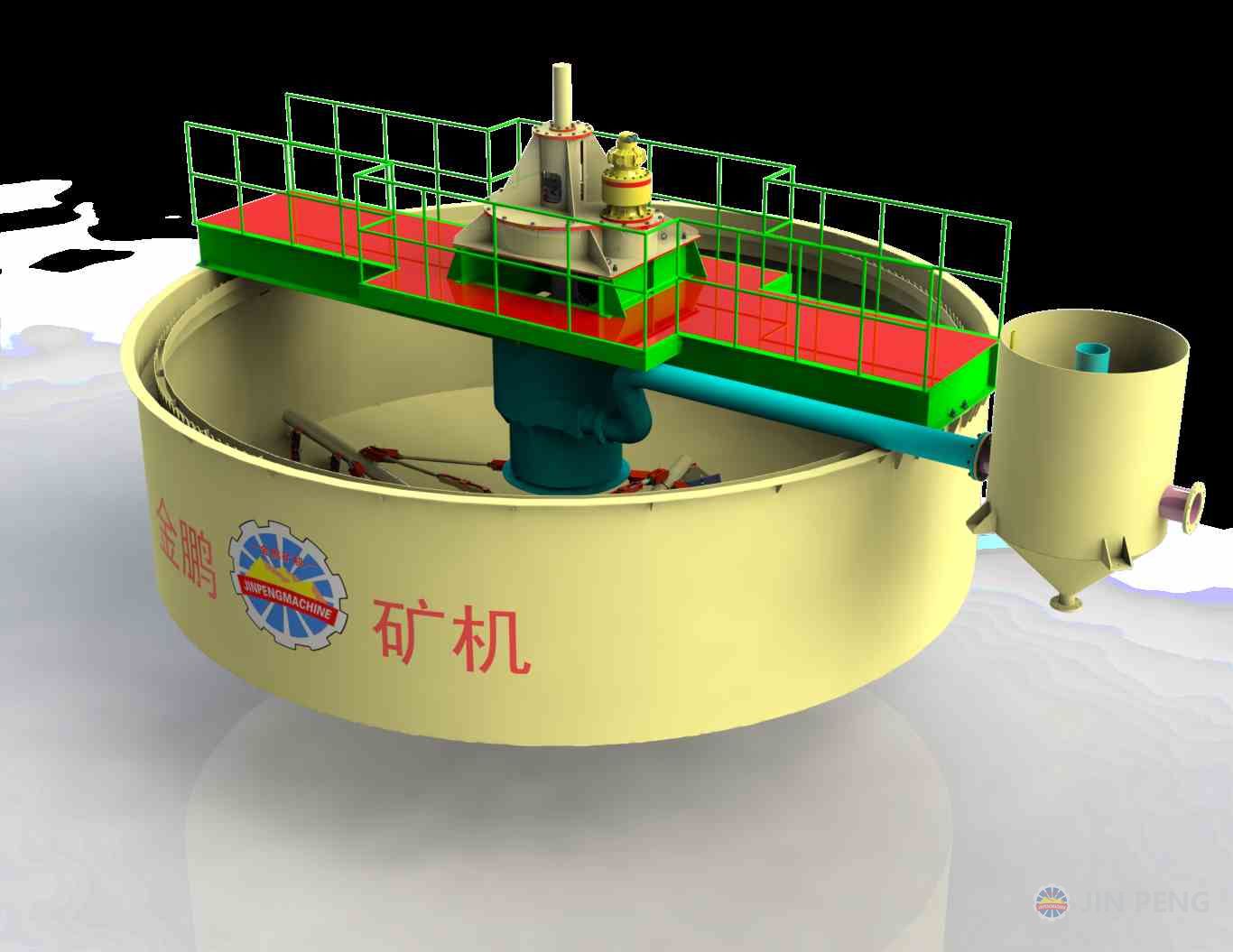

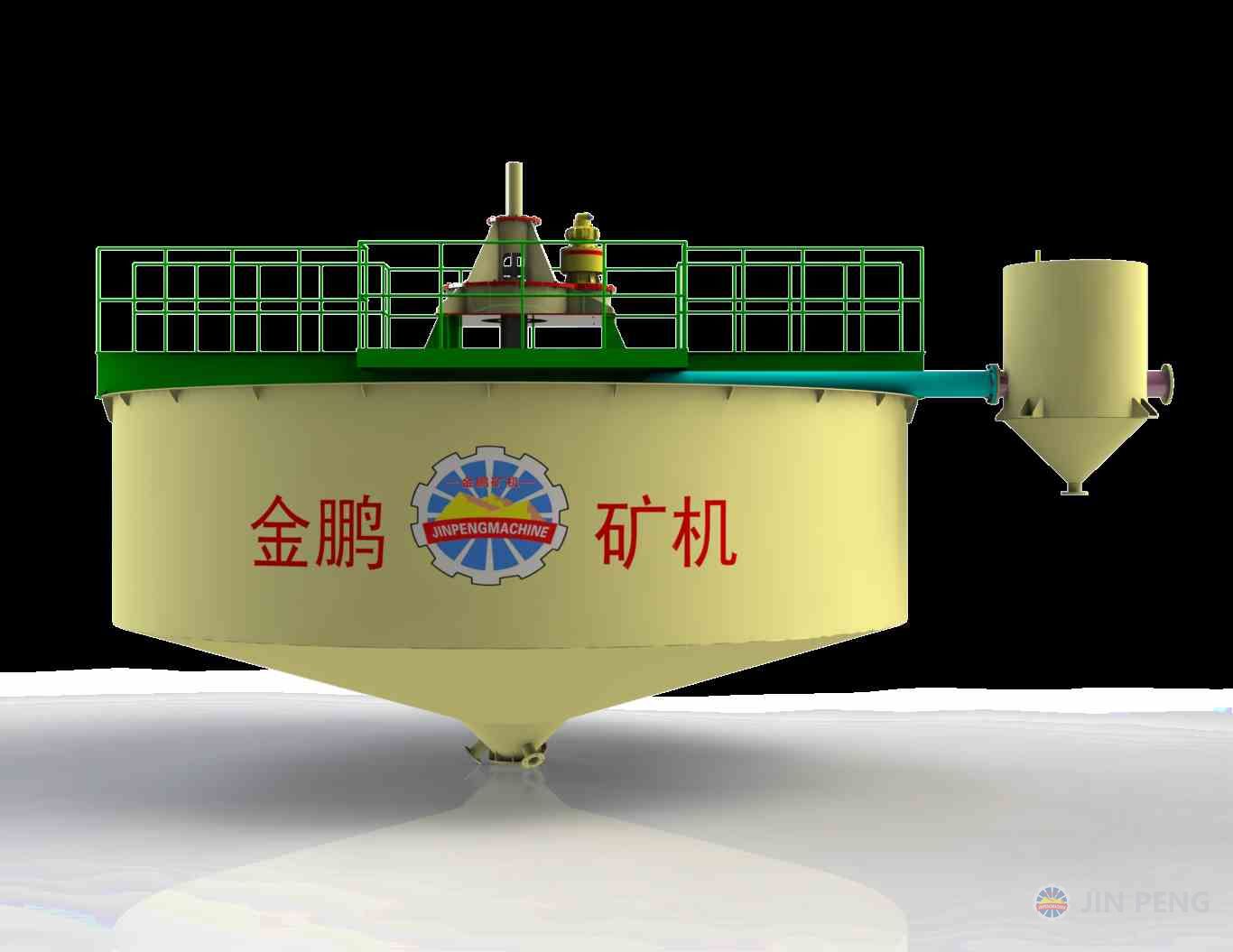

NXZ High efficacious thickener

High-efficacious Thickeners are not only sedimentation equipments but also new type dehydrating equipments with the mash percolate features. By adding flocculating agent, bigger the diameter of the deposit solid grain, speed up the deposit. The High-efficacious Thickener is usually used after floatation separator when it is applied in beneficiation process.

Scope of Application : Chemical industry, coal, building materials and water and sewage treatment industries containing solid material in the enrichment and purification of serum

Structure


Application

Thickener is mainly used for slurry adjustment and dewatering treatment in mineral processing, and for dewatering operation in chemical industry, paper making and coal preparation plant.

working principle

Thickener is a solid-liquid separation equipment based on gravity settlement. It is usually a shallow cylindrical groove with conical bottom made of concrete or metal welded plates as structural materials. The slurry with solid weight of 10%-20% can be concentrated by gravity settling of the thickener to the bottom flow slurry with solid content of 45%-55%. The thickened bottom flow slurry can be discharged from the bottom flow outlet at the bottom of the thickener by means of the rake installed in the thickener with slow running (0.2-0.35r/min). The clarifier produced by concentration (overflow) is left in the upper part of the thickener and discharged by the annular chute at the top.

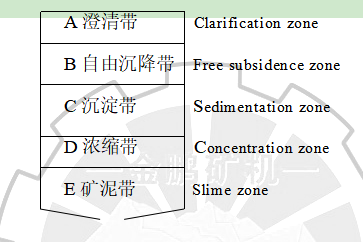

Concentration process: The pulp entering the pond gradually naturally forms five different zones. A clarification zone, B free subsidence zone, C sedimentation zone, D concentration zone and E slime zone. Concentration of pulp begins with free subsidence zone B, but the main process of concentration is in concentrate zone D.

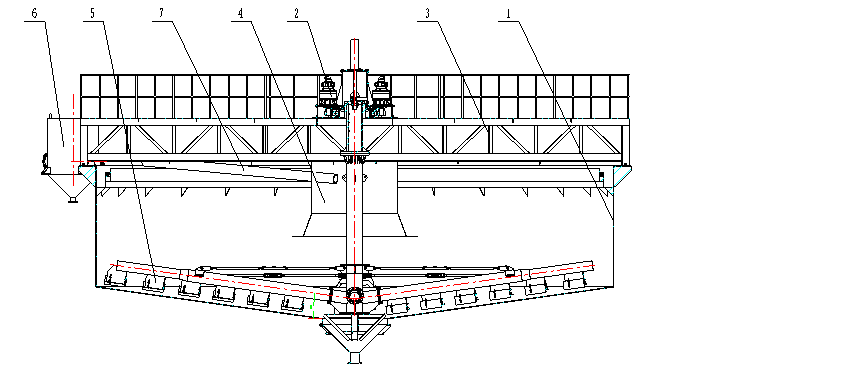

Features

  1. Shell

  2.  Hydraulic Driving Device

  3. Summer beam

  4. Flow stabilizer

  5. Rake part

  6. Degassing tank

  7. Feeding pipe


Parameters

NXZ High efficacious thickener

Model

inner diameter

death

area

Production capacity

power

weight

NXZ-6

Φ6

3100

28.27

50-100

3

5297

NXZ-8

Φ8

4762

50

100-200

7.5

16310

NXZ-15

Φ15

4510

176

260-400

7.5

24181

NXZ-16

Φ16

4545

200

400-600

5.5

28520

NXZ-18

Φ18

4545

254

650-900

5.5

30492

NXZ-24

Φ24

5343

450

1000-1500

7.5

38066

NXZ-30

Φ30

5343

706

1500-2000

7.5

46210

NXZ-45

Φ45

8033

1590

2400-3000

11

77200

NXZ-53

Φ53

6946

2206

3000-4000

15

99610

NXZ-62

Φ62

8439

3012

4500-8000

18.5

130100

NXZ-80

Φ80

9385

5025

8000-11000

22

1920360

NXZ-100

Φ100

8832

7658

15000-18000

30

2398500
