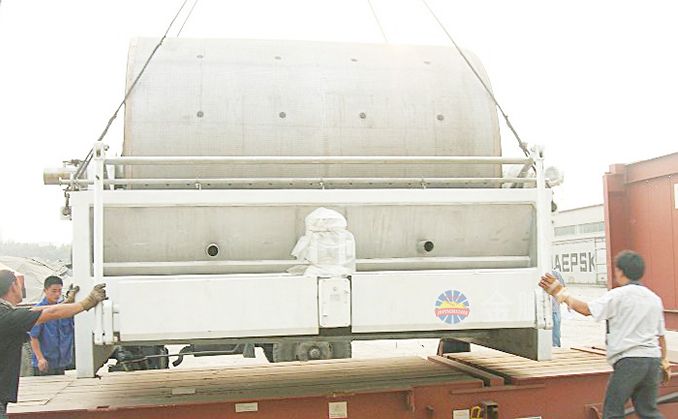

Outside the tube type filter type filter

Cylindrical external filtration type filter is normal filter realizing stepless speed change by adjusting the motor revolution.It has the advantages of simple structure, low price, convenient operation, little wearing parts etc..

Scope of Application : Ore dressing, metallurgy, chemical industry, papermaking and other departments

filter area : 3~50㎡

Principle

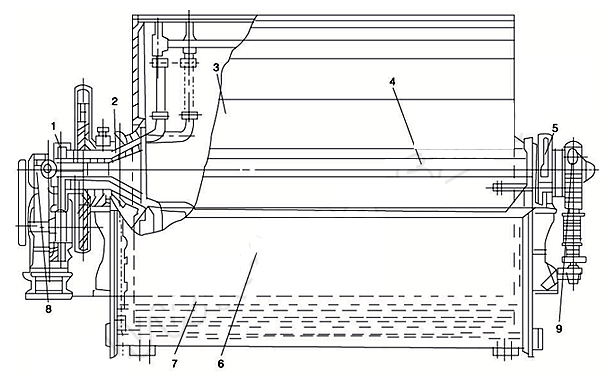

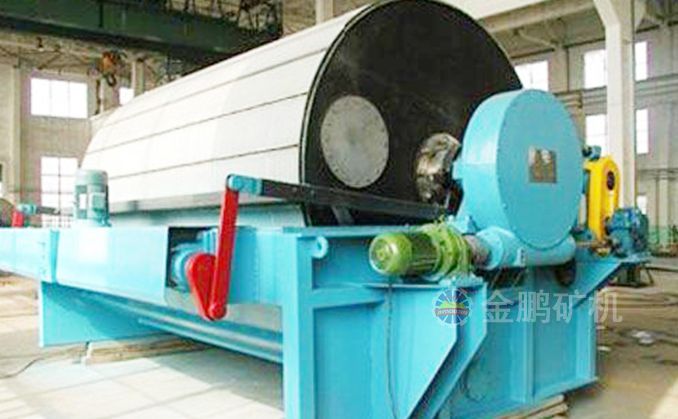

External filtration type drum vacuum filter consists of cylinder, transmission structure, allocation head, main shaft, agitation device, slurry tank, scraper and coiling device etc.

1. Left and right allocation head 2.Piping;3.Cylinder;4.Scraper;5. Main bearings;6.Slurry tank;7. Agitation device;8Transmission structure

Work Principle

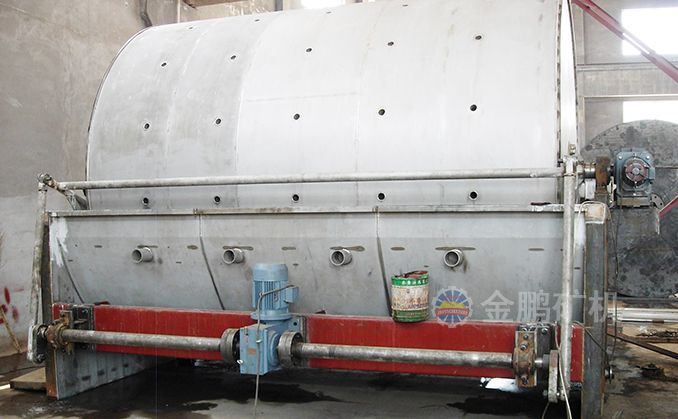

The cylinder is main part of filter. The large size cylinder is made of welded steel plate, the small size made of cast cylinder, and some old-fashioned filter cylinder made of thick wood. The filter cylinder is divided to some filtering chambers by strip along the circumferential direction. These chambers are strictly sealed without ventilation between each other. Filter plate is laid on filter chamber forming a channel for filtrate and supporting filter cloth.

The cylinder is wrapped in filter cloth in order to ensure the sealing between each chamber.

There is a pipe at one end of the cylinder body which has the same number of channels with chambers.Each channel connects with corresponding filter chamber. The transmission mechanism drives the cylinder, and could transform several speeds.

Advantages

Cylindrical external filtration type filter is normal filter realizing stepless speed change by adjusting the motor revolution.It has the advantages of simple structure, low price, convenient operation, little wearing parts etc..

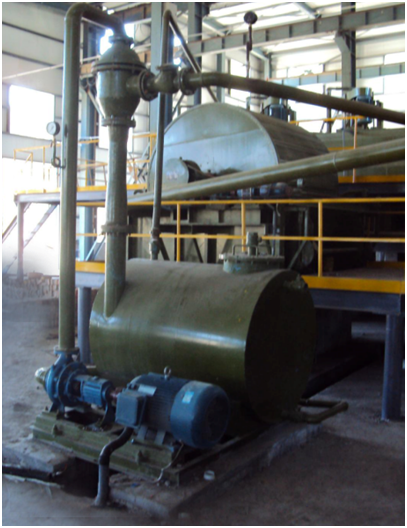

Inner Mongolia xingda 500 t/d gold mine

Parameters

Outside the tube type filter type filter

model

filter area(m2)

Cylinder size(mm)

Cylinder speed(r.p.m)

vacuum pressure( KPa)

swept volume(m3/min.m2)

Production capacity(t/h)

motor model

motor cylinder power(kw)

motor stirrer models

agitator drive power(kw)

weight(kg)

GW-3

3

φ1068×910

0.156-1.56

60-80

0.5-2

0.8-1.5

YCT132-4B

1.5

XWD0.75-4-59

0.75

2635

GW-5

5

φ1600×1060

0.156-1.56

60-80

0.5-2

1.6-2.4

YCT132-4B

1.5

XWD0.75-4-59

0.75

3760

GW-8

8

φ2000×1400

0.1-0.6

60-80

0.5-2

2.8-3.6

YCT160L-4A

2.2

Y112M-6

2.2

5455

GW-10

10

φ2000×1800

0.1-0.6

60-80

0.5-2

3.0-4.0

YCT160L-4A

2.2

Y112M-6

2.2

6017

GW-12

12

φ2000×2000

0.1-0.6

60-80

0.5-2

42434

Y112M-6

2.2

Y100L-6

1.5

6365

GW-20

20

φ2500×2650

0.14-0.54

60-80

0.5-2

3-8.0

YCT160-4B

3

XWD3-4-17

3

10600

GW-30

30

φ3350×3000

0.1-0.6

60-80

0.5-2

4.5-12

YD160M-8

2.2

XWD3-4-17

2.2

17200

GW40

40

φ3350×4000

0.1-0.6

60-80

0.5-2

6.0-16

YD160M-6

3.7

XWD4-4-17

3.7

19500

GW-50

50

φ3350×5000

0.1-0.6

60-80

0.5-2

7.5-20

YD160M-4

5

XWD5.5-7-59

5.5

21500

Note:Blast indicated pressure:10-30(Kpa),blast volume:0.2-0.4(m3/min.m2)
