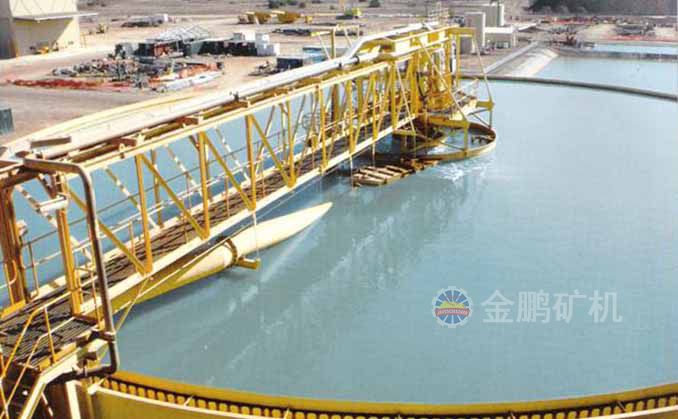

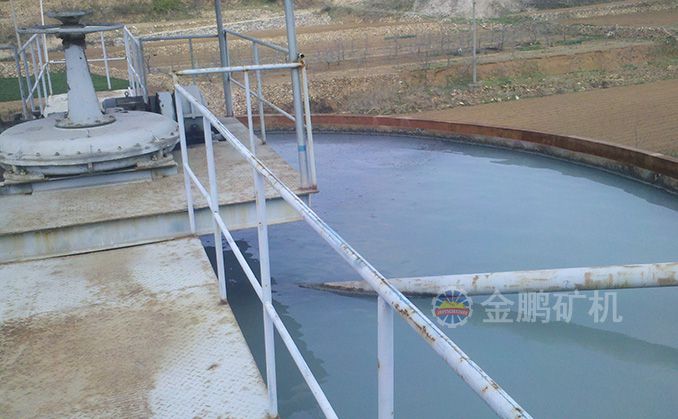

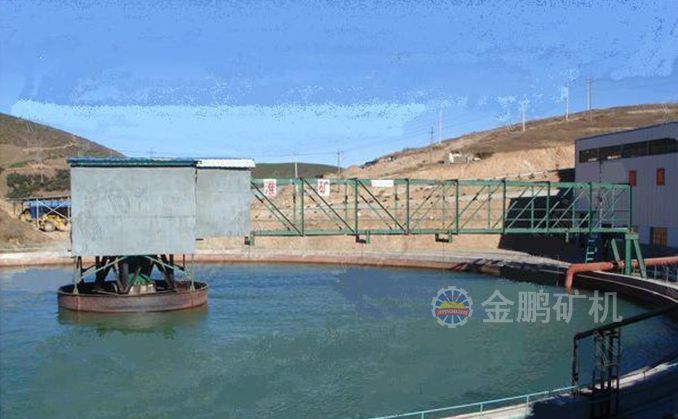

Thickener with central transmission

Central transmission thickener is applied to mechanical discharging of small radial flow live vertical flow sedimentation sink and concentrated sink. It can further separate the free water in the sludge to reduce sludge and improve the concentration of sludge. Then, it discharges the concentrated sludge out of the sink. The structure, construction condition and the characteristic are the same as that of the mud scraper.

Application material : Coal, slime, waste water, waste residue, etc

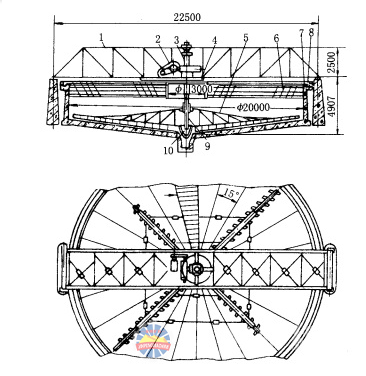

Structure

Thickener commonly is mainly composed of thickener, jialing, transmission device, jialing lifting device, feeding device, discharge device and signal safety device, etc


There is a grid on the scraping arm which is beneficial to improve the sedimentation efficiency. It's mainly used in dewatering concentrate in wet separation as the first stage of dewatering----for concentration. Generally, it's set between the concentration and filtration device, and it's also used to dewater before concentration sometimes. Meanwhile, it's also applied for dewatering in chemical industry and coal concentrate plant.

Working Principle

The water flows radially to all sides of the overflow tank through the water drum. As water slows down, the suspended objects are separated to settle down to the bottom. The upper liquid will

Thickener commonly is mainly composed of thickener, jialing, transmission device, jialing lifting device, feeding device, discharge device and signal safety device, etc


There is a grid on the scraping arm which is beneficial to improve the sedimentation efficiency. It's mainly used in dewatering concentrate in wet separation as the first stage of dewatering----for concentration. Generally, it's set between the concentration and filtration device, and it's also used to dewater before concentration sometimes. Meanwhile, it's also applied for dewatering in chemical industry and coal concentrate plant.

Working Principle

The water flows radially to all sides of the overflow tank through the water drum. As water slows down, the suspended objects are separated to settle down to the bottom. The upper liquid will be discharged from the sink through the overflow weir plate. Through the reducer drive and suspension transmission, the sludge is scraped into the central tank and will be discharged by hydro-static pressure or pump.

Advantages

1.It adopts reducer and vortex transmission with long transmission torque and high efficiency. The torque protection device ensures safe use;

2.For overloading, the sludge scraping system can be lifted manually (or electrically) and then be slowed down to scrape sludge;

3.Mud collector is set with small scraper board to stir the sludge to ensure complete discharge without congestion;

4.Simple inner structure makes it convenient for placement of hydraulic pressure and electric control system;

5.Adjusting the oil discharging of oil pump can adjust the rotary speed of the rake rack which can achieve automatic rake lifting and lowering.

Parameters

Ordinary thickener

Model

thickening pond

Deposit area(m2)

Rotation rate of rake(r/min)

Motor

Production capacity(t/d)

Tank weight(kg)

gross weight(kg)

diameter(m)

depth(m)

model

power(kw)

NZS1

1.8

1.8

2.55

0.5

Y90L-6

1.1

1.3-5.6

602

1300

NZS2.5

2.5

1.8

4.9

0.33

Y90L-6

1.1

5-10.8

1095

2355

NZS3.6

3.6

1.8

10.2

0.38

Y90L-6

1.1

5-22.4

1905

3150

NZS6

6

2.956

28

0.35

Y90L-4

1.5

14-60

6200

9000

NZS8

8

3

50.2

0.27

Y132S-6

3

25-120

11065

15460

NZS9

9

3

63.5

0.25

Y132S-6

3

32-150

12188

16682

NZS12

12

3.6

113

0.19

Y132S-6

3

50-250

24060

33131

NZS15

15

3.6

176

0.1

Y132M2-6

5.5

70-350

35269

55499

NZS18

18

3.74

255

0.2

Y160M-6

7.5

100-560

without

10139

NZS20

20

4.4

315

0.2

Y160M2-8

7.5

200-1440

24500

NZS24

24

4.716

452

0.1

Y180L-8

11

200-1440

28984
