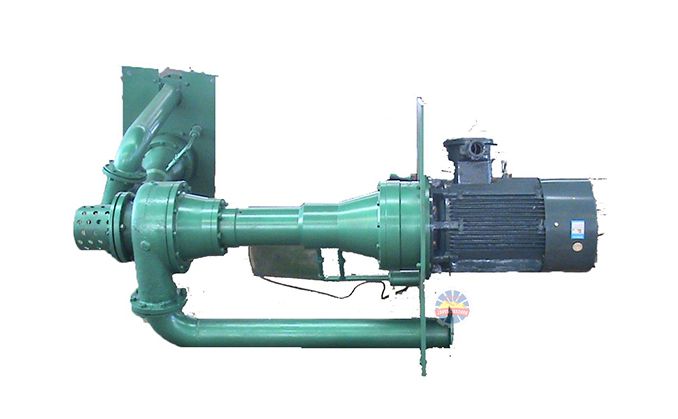

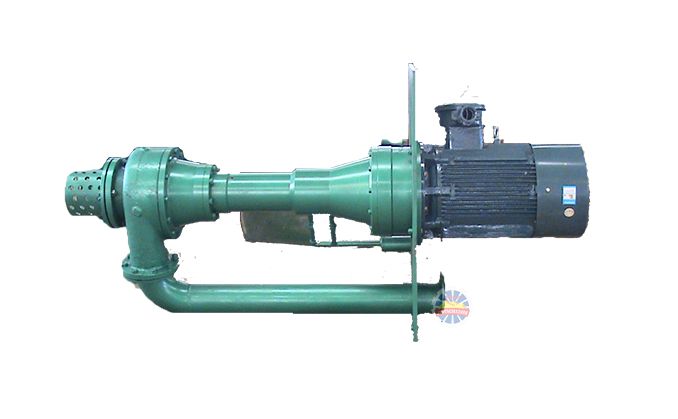

Vertical sand pump

Semi-submersible centrifugal vertical sand pumps are applied for pumping of abrasive slurries (pulps) with high content of solids (up to 25%* by volume), density of pumped slurry up to 1300 kg/m3*, pH value from 6 to 8, maximum size of pumped solids not more than 10 mm and temperature of pumped slurry up to 70 °С.

Scope of Application : Suitable for all kinds of mining, chemical, power, building materials, agricultural and other industry abrasive or corrosive slurry

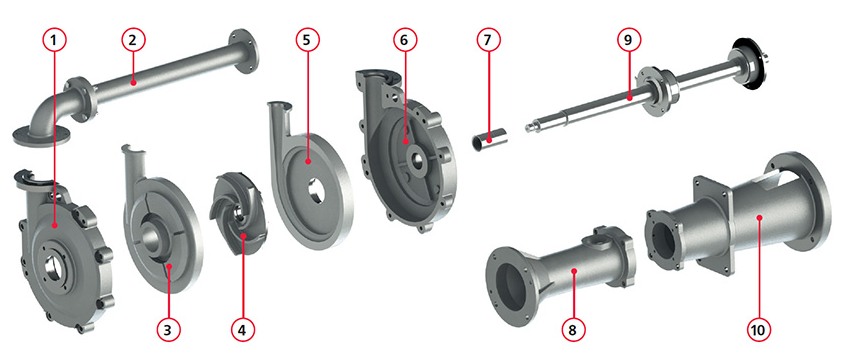

Structure


1. Cover plate; 2. Discharge pipe; 3. Cover plate liner insert; 4. Impeller; 5. Frame plate liner insert; 6. Frame plate; 7. Shaft sleeve; 8. Spacer; 9. Shaft with bearing assembly; 10. Bearing housing

APPLICATIONS

Mining, metallurgy, potash industries, thermal energy (combined heat and power stations and state regional power plants), hydromechanization, oil sand processing, mining and processing of sand-and-gravel.

Advantages

1、Sturdy and durable, long service life;

2、Smooth operation, high efficiency;

3、 low wear rate;

4、corrosion resistance is better.

Product Parameters

Vertical sand pump

Model

Flow

(m³/h)

Lift

m

Suction diameter

mm

Spit caliber

mm

Drive motor

Weight

(kg)

Model

Power(kw)

1PSC

12

14

50

25

Y100L2-4

3

215

2PSC

47

19

60

50

Y160M-4

11

553

3PSC

54

26

90

80

Y180L-4

22

450
