thickener with peripheral rack transmission

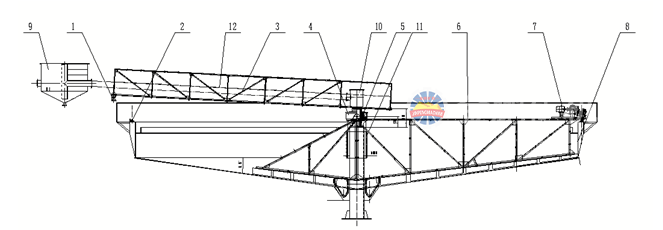

Structure

This equipment is mainly composed the following components:

1.Rack bracket  2.The steel rack track  3.feed rack  4.holder  5.current collecting equipment  6.moving beam  7.transmission mechanism  8.box-hat  9.buffer tank  10.deaerating tank  11.feeding vertical tube  12.Flocculant adding device

This product has obtained national utility model patent certificate.

Patent No. ZL 2015 2 0692813.1

The patentee：YanTai JinPeng Grop

working principle

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

Advantages

Traditional type, higher safety factor, high stability

application

The machine is suitable for dealing with large capacity and light density products. Mainly used for condensing concentrate and dewatering the tailings. It can be also used for condensing and cleaning the pulp with solid particles in coal, chemical, building materials and sewage treatment system.

Parameters
