Spare Parts & Reagent

Home > Spare Parts & Reagent > Pump

Pump

Jinpeng Pump includes Glue pump, AH-HH Horizontal slurry pump, Vertical sand pump, Underwater impurity pump, Feeding pump of filter press.

Detail

Glue pump

A slurry pump is a type of centrifugal pump, lobe pump or peristaltic hose pump in physics principle that increases the pressure of liquid and solid particle mixture (aka slurry), through centrifugal force (a rotating impeller) and converts electrical energy into slurry potential and kinetic energy.Slurry pumps are widely used to transport corrosive/abrasive and high concentration slurry in many industries such as Gold, Silver, Iron ore, Tin, Steel, Coal, Titanium, Copper, Mineral sands, Lead and Zinc.

Lift : 11.5-38m

Flow : 12-400M³/h

Product Parameters:

Glue pump

Model

Lift

M³/h

Flow

m

Impeller diameter

mm

Motor model

Motor power

kw

Weight

kg

25PMJ

12-18

11.5-14

195

Y100L2-4

3

127

2PNJ

27-50

19-22

277

Y160M-4

11

400

2PNJ

27-50

36-40

277

Y180M-4

18.5

400

4PNJ

80-136

28-30.5

360

Y200L-4

30

460

4PNJ

95-160

40-43

360

Y250M-4

55

460

6PNJ

250-400

33-38

490

Y315S-6

75

1070

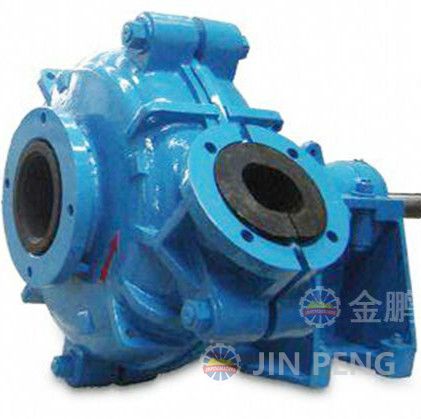

AH-HH Horizontal slurry pump

AH type slurry pump are cantilever, horizontal centrifugal slurry pump, which are used for delivering the fine particle and corrosive slurry for metallurgical, mining, coal, petroleum & chemical, transportation, river and channel dredging, building material and municipal projects, etc

Production capacity : 226.8 m3/h

Scope of Application : Mining, pumping slurry


Features:

Grease lubrication, single-stage, single-suction, cantilevered, horizontal, wear resistant layer and bearing layer can be separated, double casing structure.


High efficiency, wear resistant, stable performance, interchangeability of parts

Series AH(R), the lining and impeller can be made of wear metal or rubber.

The discharge outlet of the centrifugal slurry pump can be adjusted with rotation interval of 45 degrees; the pumps can be operated in series and driven with belt.

The shaft seal can adopt expeller type shaft sealing, gland packing assembly and mechanical sealing.

Slurry pump AH series pump spares are compatible with the famous Pump.


Type notation:

For example: 2/1.5BK-AHR

2-------Suction diameter

1.5-------Discharge diameter

KB-------Frame type

AHR------ Slurry pump type


Specification:

Discharge Diameter:25~450mm

Flow Capacity:6.5~5000m3/h

Head:5~55m

Material:A05 , A31 , A33 , A49 , etc


Product Parameters:

AH-HH Horizontal slurry pump

Model

Power(KW)

Flow

(m³/h)

Lift

speed

Efficiency

Gross weight(kg)

1.5/1B-AH

2.2-15

3.6-20

5-68

1200-3800

40

91

2/1.5B-AH

2.2-15

7-48

7-62

1200-3200

45

118

3/2C-AH

4-30

21-86

12-65

1300-2700

55

191

4/3C-AH

5.5-30

50-150

9-45

1000-2000

71

263

4/3D-AH

7.5-60

68-160

10-52

1000-2200

71

363

6/4D-AH

22-120

72-360

12-56

800-1550

65

626

6/4E-AH

18.5-120

93-385

12-63

800-1600

65

728

8/6E-AH

110-300

360-820

10-61

500-1100

72

1473

8/6R-AH

45-560

360-820

10-61

500-1140

72

1836

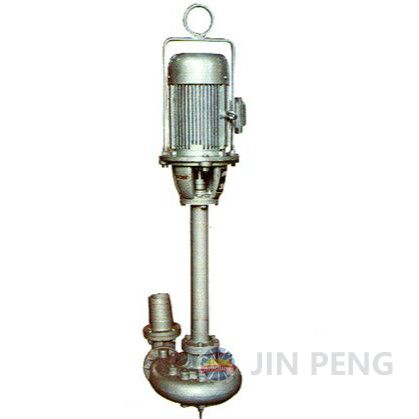

Vertical sand pump

Semi-submersible centrifugal vertical sand pumps are applied for pumping of abrasive slurries (pulps) with high content of solids (up to 25%* by volume), density of pumped slurry up to 1300 kg/m3*, pH value from 6 to 8, maximum size of pumped solids not more than 10 mm and temperature of pumped slurry up to 70 °С.

Scope of Application : Suitable for all kinds of mining, chemical, power, building materials, agricultural and other industry abrasive or corrosive slurry.


APPLICATIONS:

Mining, metallurgy, potash industries, thermal energy (combined heat and power stations and state regional power plants), hydromechanization, oil sand processing, mining and processing of sand-and-gravel.


Advantages:

1、Sturdy and durable, long service life;

2、Smooth operation, high efficiency;

3、 low wear rate;

4、corrosion resistance is better.


Product Parameters:

Vertical sand pump

Model

Flow

(m³/h)

Lift

m

Suction diameter

mm

Spit caliber

mm

Drive motor

Weight

(kg)

Model

Power(kw)

1PSC

12

14

50

25

Y100L2-4

3

215

2PSC

47

19

60

50

Y160M-4

11

553

3PSC

54

26

90

80

Y180L-4

22

450


Underwater impurity pump

Underwater impurity pump is applied in metal mining, nonmetal mining, coal, chemical, papermaking, agriculture, food industries, etc. It is applied to waste water operation, like slurry, thick liquid, suspension, etc.

Scope of Application : Coal, electric power, metallurgy, mining, building materials, environmental protection and other departments.


Structure:

Underwater impurity pump is applied in metal mining, nonmetal mining, coal, chemical, papermaking, agriculture, food industries, etc. It is applied to waste water operation, like slurry, thick liquid, suspension, etc.


Product Parameters:

Underwater impurity pump

Model

Flow(m³/h)

Lift(m)

Speed (r/min)

Motor Power(kw)

Impeller diameter(mm)

Outlet diameter(mm)

Efficiency(%)

40PV-SP

10.1~20.9

10.3~20.9

1420

2.2

188

40

30~38

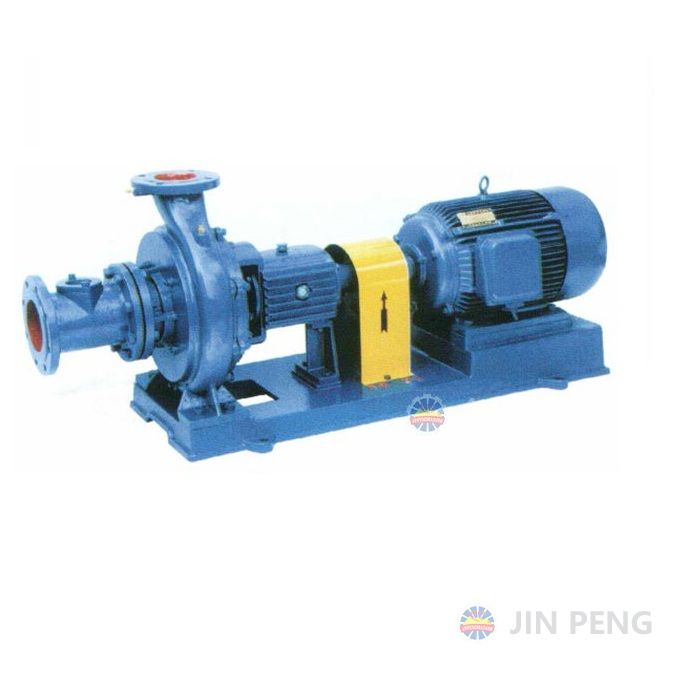

Feeding pump of filter press

Feed pump of filter press has compact structure, less vibration,high efficiency,mechanical seal,all parts touched with water can be made of stainless steel.

Scope of Application : Demand for product material variety, suitable for different medium.


Product Parameters:

Feeding pump of filter press

Model

Flow(m³/h)

Lift(m)

Speed(r/min)

Power belts

(kw)

matching filter press(㎡)

50ZJE65-22

20-70

30-65

1450

22

40-60

50ZJE75-30

20-70

35-75

1450

30

40-70

50ZJE76-37

20-100

30-76

1450

37

60-120

65ZJE80-45

35-125

35-80

1450

45

60-120

80ZJE65-45

40-140

30-65

1450

45

80-150

80ZJE75-55

50-160

35-75

1450

55

80-150

100ZJE75-75

70-245

30-75

1450

75

100-200

100ZJE80-90

50-280

35-80

1450

90

100-200

125ZJE70-90

80-300

30-70

1450

90

150-250

150ZJE75-110

80-330

35-75

1450

110

150-300
