High-efficiency reformed thickener

Compared with the ordinary thickener, efficient thickener have a large production capacity (processing capacity can be increased several times).

Application material : Material, coal slime, waste water, waste residue, etc

Scope of Application : Metallurgy, mining, coal, chemical industry, building materials, environmental protection and other departments

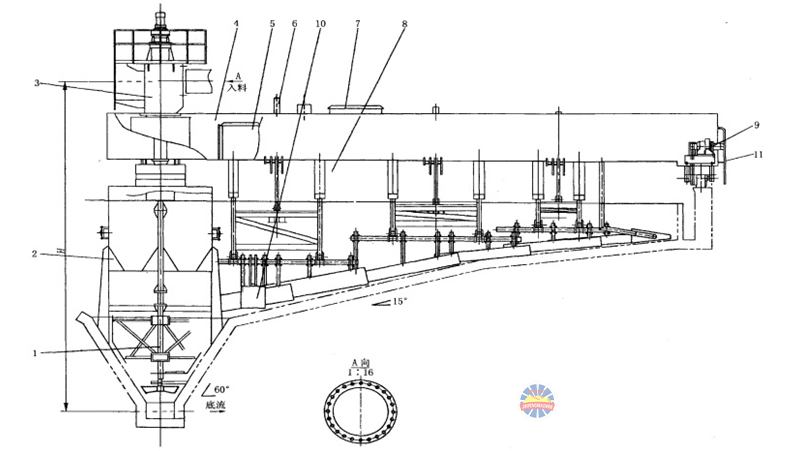

Structure


1.The lower part of the mixing plant  2.The middle of the mixing plant  3. The head of the mixing plant  4. bridge body  5. hydraulic system  6. Wall lifting device  7. Electric control cabinet  8. Scraping set device  9. Drive around  10. dynamometric device  11. escalator

The vertical axis rotates driven by motor, and pulp by feeding device flows into the tank center feed mixing barrel.Solid material in the bottom of the tank by the scraper moves out of center; clarified overflow through the tranquil flow device flows out from the ring external overflow weir.

Advantages

Out overflow weir instead of inner overflow weir increases the sedimentation area and not easy to block.

Oblique feeding instead of horizontal feeding solves the blockage problem.

A tranquil flow device reduces material flow rate, so that the overflow becomes more uniform with lower turbidity.

Parameters

High-efficiency reformed thickener

Model

thickening pond

Deposit area(m2)

Motor

Production capacity(t/d)

Tank weight(kg)

gross weight(kg)

diameter(m)

depth(m)

Model

Power(kw)

NZSG2.5

2.5

1.8

4.9

Y90L-6

1.1

5-22.4

1095

2355

NZSG3

3

1.8

7

Y100L-6

1.5

5-23.3

1633

3167

NZSG3.6

3.6

1.8

10.2

Y100L-6

1.5

5-25

2097

3680

NZSG-5

5

2.956

16

Y90L-4

1.5

16-90

5160

8031

NZSG-6

6

2.956

28.3

Y90L-4

1.5

98

5769

9200

NZSG-7

7

3

38.5

Y112M-6

2.2

140

8548

13361

NZSG-8

8

3

50.2

Y132S-6

3

185

12966

19289

NZSG-9

9

3

63

Y132S-6

3

210

15439

21960

NZSG-12

12

3.6

113

Y132S-6

3

370

25589

34823

NZSG-15

15

3.6

176

Y132M2-6

5.5

580

35800

58800

NZSG-18

18

3.74

255

Y160M-6

7.5

960

51000

75600

NZSG-20

20

4.4

315

Y160M2-8

7.5

1400

62000

83550

NZG-24

24

4.716

452

Y180L-8

11

≥1400

83700

115840
