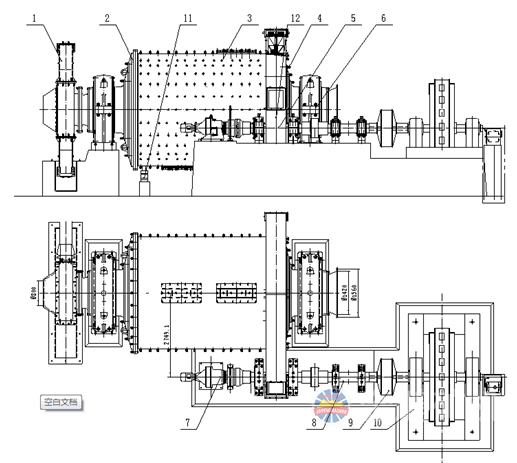

1.Joint feeder 2. feed inlet 3. Barrel 4. discharge hole 5. Power Train 6. Bearing 7. Slow speed transmission device 8. intermediate shaft 9. air clutch 10. electric motor 11. jack system 12. Spray lubricating device

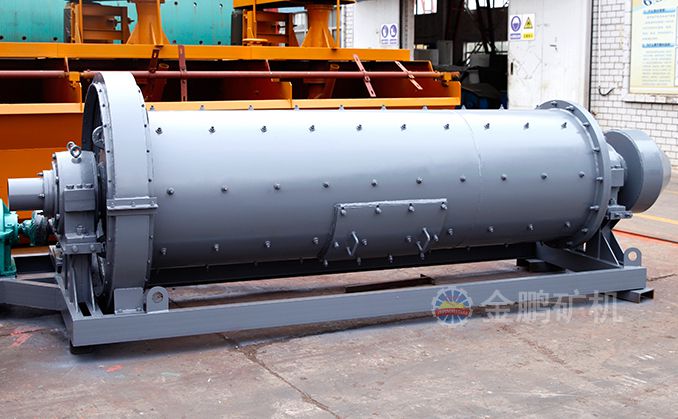

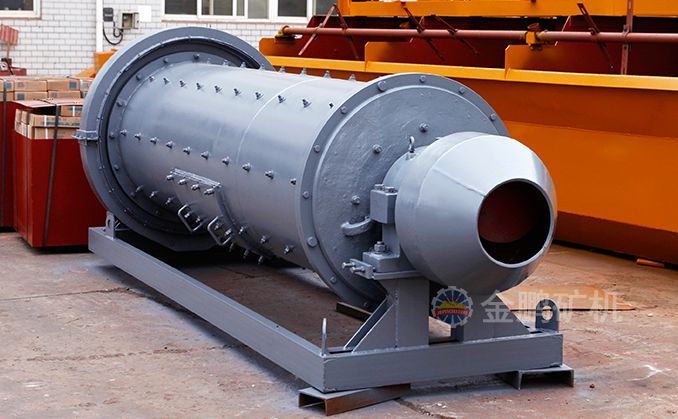

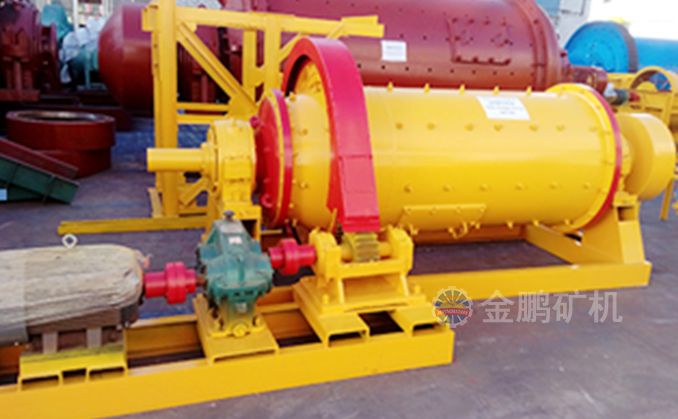

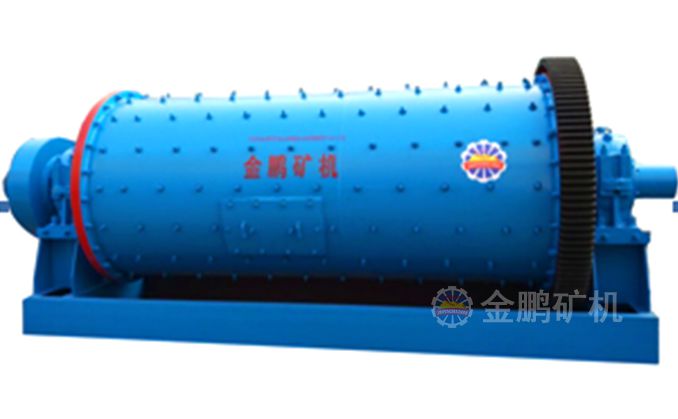

Scope of Application : Metallurgy, mining, building materials, chemical industry, etc
Effective volume : 0.45-87m³
1.Joint feeder 2. feed inlet 3. Barrel 4. discharge hole 5. Power Train 6. Bearing 7. Slow speed transmission device 8. intermediate shaft 9. air clutch 10. electric motor 11. jack system 12. Spray lubricating device

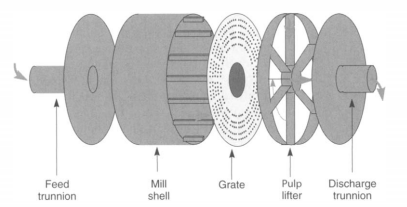

1. Bush bearing is replaced by rolling bearing, friction resistance being greatly lowered down,easy to start and energy saving.it's energy is lower 10%-15% than the old one.
2. The capacity is larger: for the outlet disk and the checked liner are adopted,the capacity is higher 20% than the cone ball mill.
3. Easy to construct: for one-fiece frame is used, it's easy for the facilitating and equipment installation.
| Wet ball mills | |||||||||||
| Model | barrel | Motor | boundary dimension | Effective volume(m3) | Max loading ball(t) | weight(kg) | |||||
| digmeter(mm) | length(mm) | speed(r/min) | Model | Power(kw) | length | width | height | ||||
| (mm) | (mm) | (mm) | |||||||||
| MQG 0918 | 900 | 1800 | 39.2 | Y225M-8 | 22 | 4196 | 2336 | 2015 | 0.9 | 1.92 | 5340 |
| MQG 1212 | 1200 | 1200 | 31.3 | Y250M-8 | 30 | 4500 | 2104 | 1733 | 1.1 | 2.4 | 11438 |
| MQG 1224 | 1200 | 2400 | 31.3 | Y280M-8 | 45 | 5764 | 2104 | 1733 | 2.4 | 4.6 | 13200 |
| MQG 1515 | 1500 | 1500 | 30.9 | JR115-8 | 60 | 6094 | 2743 | 2170 | 2.5 | 5 | 13120 |
| MQG 1530 | 1500 | 3000 | 30.9 | JR117-8 | 80 | 6800 | 2743 | 2170 | 5.08 | 8.6 | 19166 |
| MQG 1545 | 1500 | 4500 | 30.9 | JR127-8 | 130 | 9085 | 3091 | 2170 | 6.57 | 11.3 | 22147 |
| MQG 2122 | 2100 | 2200 | 24.05 | JR128-8 | 155 | 7750 | 4450 | 3533 | 6.6 | 16 | 42500 |
| MQG 2130 | 2100 | 3000 | 24.05 | JR137-8 | 210 | 8330 | 4450 | 3533 | 9 | 20 | 44260 |
| MQG 2145 | 2100 | 4500 | 24.05 | JR138-8 | 245 | 9933 | 4450 | 3533 | 13 | 23.5 | 50348 |
| MQG 2430 | 2400 | 3000 | 22.5 | JR138-8A | 280 | 8823 | 5113 | 3894 | 12.1 | 22.5 | 58328 |
| MQG 2436 | 2400 | 3600 | 22.5 | JR138-8B | 320 | 9455 | 5113 | 3894 | 14.5 | 26 | 61308 |
| MQG 2727 | 2700 | 2700 | 21.6 | JR138-8B | 320 | 8643 | 5722 | 4674 | 15.3 | 30 | 83145 |
| MQG 2736 | 2700 | 3600 | 21.6 | JR1510-8 | 400 | 10463 | 5942 | 4674 | 18.4 | 36 | 89120 |
| MQG 2745 | 2700 | 4500 | 21.6 | TDMK500-32 | 500 | 11471 | 5907 | 4674 | 23 | 45 | 109318 |
| MQG 3236 | 3200 | 3600 | 18.5 | TDMK630-36 | 630 | 12442 | 7030 | 5150 | 25.6 | 51 | 144241 |
| MQG 3245 | 3200 | 4500 | 18.5 | TDMK800-36 | 800 | 13975 | 7030 | 5150 | 32.8 | 65 | 153390 |
| MQG 3639 | 3600 | 3900 | 17.3 | TDMK1000-40 | 1000 | 15000 | 7200 | 6300 | 36.2 | 75 | 168800 |
| MQG 3645 | 3600 | 4500 | 17.3 | TDMK1250-40 | 1250 | 15200 | 7750 | 6300 | 41.8 | 90 | 179900 |
| MQG 3650 | 3600 | 5000 | 17.3 | TDMK1400-40 | 1400 | 17600 | 7750 | 6300 | 46.4 | 96 | 183000 |
| MQG 3660 | 3600 | 6000 | 17.3 | TDMK1600-40 | 1600 | 17000 | 8800 | 6500 | 55.7 | 120 | 204000 |
| MQG 4060 | 4000 | 6000 | 16.2 | TDMK1700-30 | 1700 | 17400 | 9500 | 7600 | 69.8 | 137 | 214000 |
| MQG 4560 | 4500 | 6000 | 15..3 | TDMK2300-30 | 2300 | 17800 | 10500 | 7600 | 87 | 158 | 294000 |
