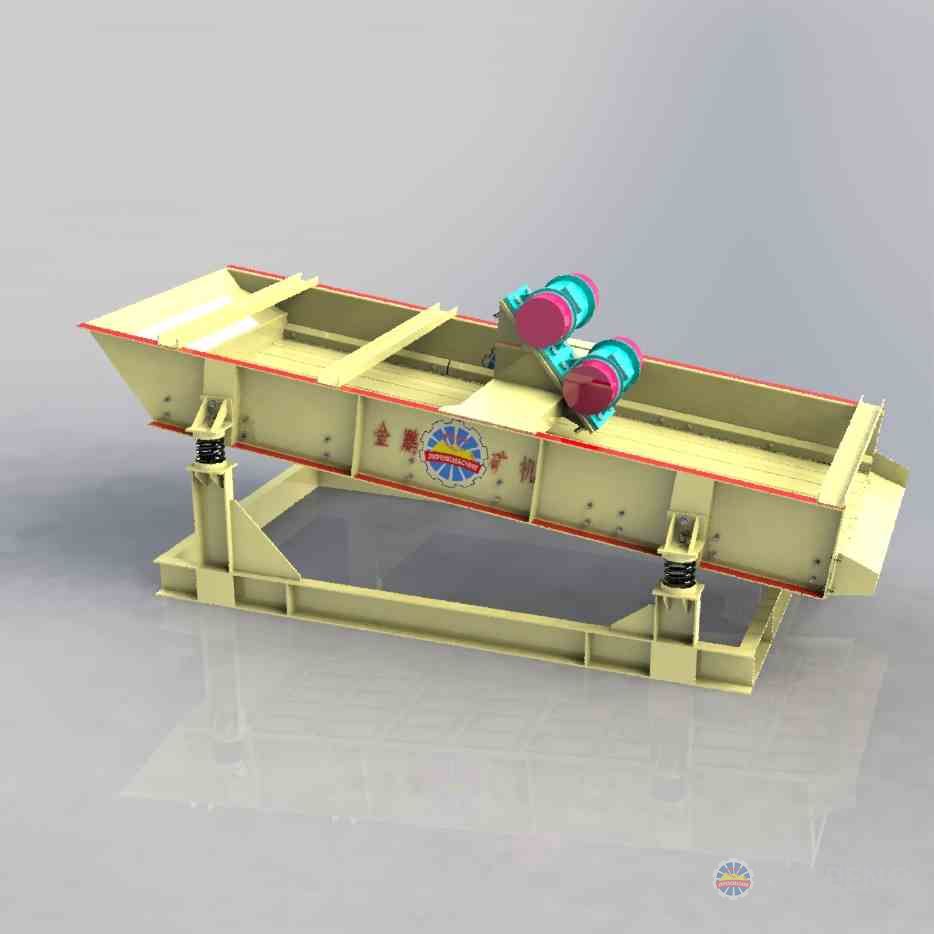

DZS Linear screen

The product is widely used in dewatering, desliming and dense medium mineral separation.

Max area : 1.5×3.6㎡

Scope of Application : Dewatering, desliming, liquid and removing heavy medium heavy medium separation

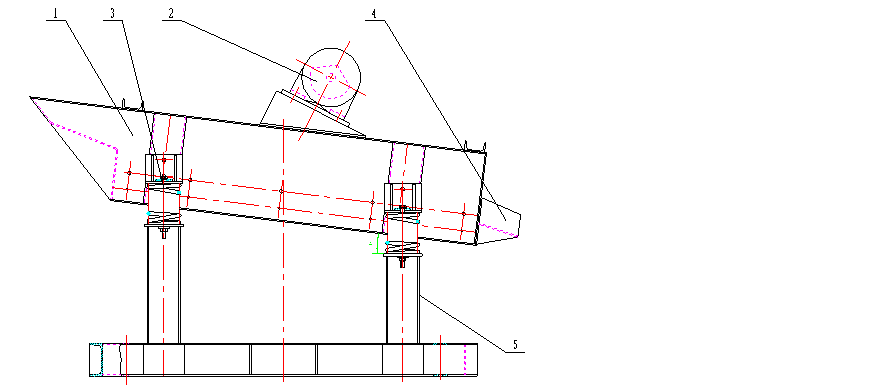

Structure



1.Screen frame    2. Vibrating motor   3.Spring   4.Discharge port  5. Support

The product adopts double eccentric shaft, the two shafts have opposite directions but same speed, so that the centrifugal force produced by the two shafts is offsetted in the same line.



Advantages

1. Low energy consumption.

2. High screen efficiency.

3. Angle adjustable.

4. Low load for transfer and no need for special treatment.

Parameters

Linear screen

Model

Area(m2)

amplitude(mm)

Dynamo model

Dynamo power(kw)

Rotate speed(r.p.m)

Weight(kg)

DZS0410

0.4×1.0

2~4

YZO-3-6

0.25

960

650

DZS0412

0.4×1.2

2~4

700

DZS0415

0.4×1.5

2~4

760

DZS0612

0.6×1.2

3~5

865

DZS0718

0.7×1.8

3~5

YZO-10-6

1

960

1027

DZS0815

0.8×1.5

4~6

YZO-18-6

1.1

960

1053

DZS0918

0.9×1.8

4~6

YZO-20-6

2

960

1086

DZS0922

0.9×2.2

4~6

YZO-20-6

2×1.5

960

1164

DZS1018

1.0×1.8

4~6

YZO-16-6

2×1.1

960

1215

DZS1020

1.0×2.0

YZO-16-6

2×1.1

960

1280

DZS1225

1.25×1.25

4~6

YZO-20-6

2×2

960

1326

DZS1530

1.5×3.0

4~6

YZO-36-6

2×3

960

1875

DZS21530

1.5×3.0

4~6

960

2056

DZS1536

1.5×3.6

4~6

960

1935
