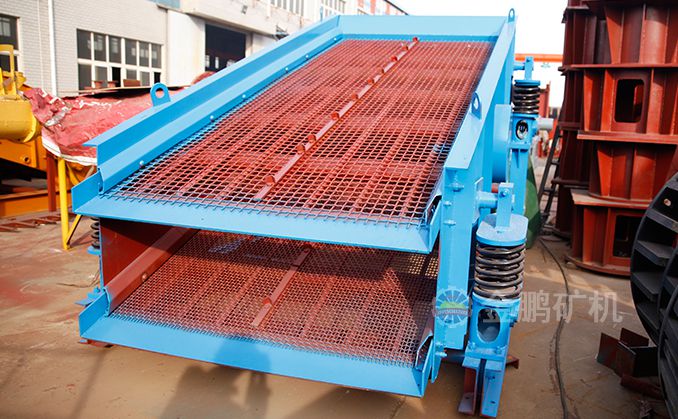

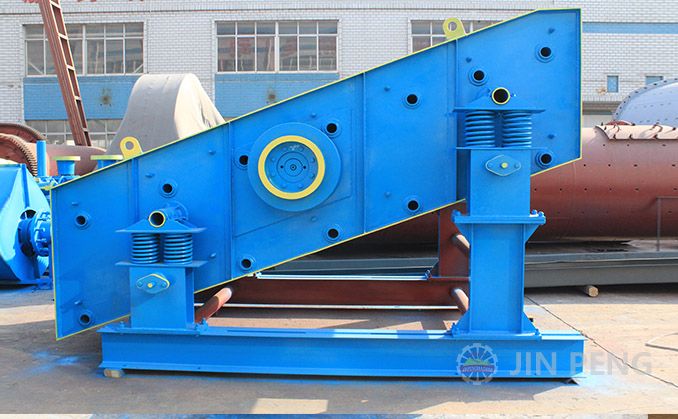

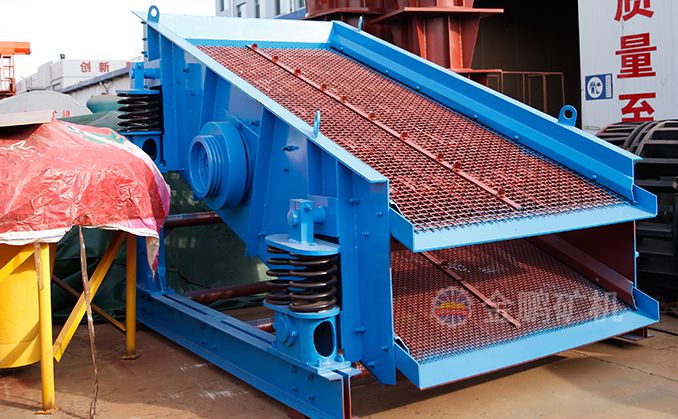

YA circular vibrating screen

This series vibrating screen with simple structure, and easy to maintenance, reliable to operation, and screen efficiency high. It can desliming, dehydration and removing medium operation for medium-grained material for mining, coal, electricity, construction and chemical materials. And installation of rubber screen is preferred for grading cokes material.

Production capacity : 1-1700t/h

Scope of Application : Screening of fine grained material

Structure

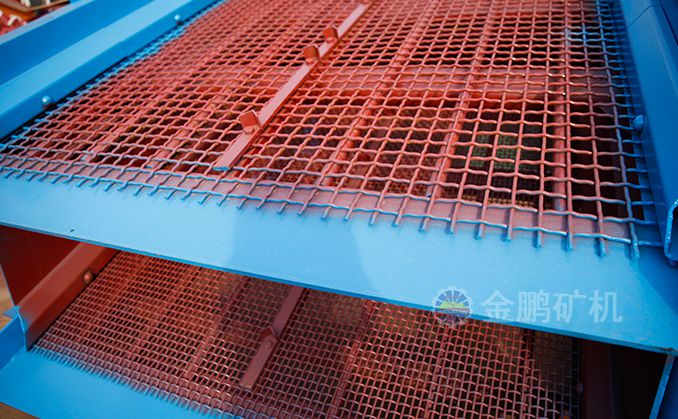

The motor spread to vibrator through the V belt, because the rotation of eccentric shaft causing vibration, making the screen deck do circular tracking movement, thereby make mineral rolling and vibrating on the surface of screen. The large on the surface of the screen, the size of the material less than screen pore will fall under the screen to achieve the purpose of screening.


Advantages

1. Improve your product purity - Eliminate oversized material from your powders and liquids

2. Increase your production - Double your throughput with half the size. These vibrating screens achieve a higher throughput per unit mesh area compared to conventional vibrating screens and can achieve throughput rates up to 60,000 kg/hour

3. Reduce your down-time - The Russell Compact Sieve can be easily stripped down and cleaned without tools

4. Eliminate dust and fumes - Enclosed screening means total containment

5. Fits into smaller spaces - These vibrating screens can fit easily into existing installations and areas of limited headroom

6. Lowers noise levels - A solid rubber suspension gives the machine a quiet operation - typically as low as 70dBA

7. Operating and cleaning is quick and easy, making this range of vibrating screens perfect for all processing industries. A wide range of sizes and options means the machine can be tailored to suit your exact needs.

Parameters

YA   Circular vibrating screen
ModelsifterMax   particle(mm)Production   capacity(r/h)Motorweight(kg)
tierarea(㎡)obliquity(°)Modelpower
YA122412.92010060~200Y132S-45.54256
2YA122425160
3YA122435320
YA123614.32020080~240Y160M-4114905
2YA123625311
YA153014.52020080~240Y160M-4114675
YA153615.420200100~350Y160M-4115137
2YA153625.420400100~350Y160L-4155624
YAH153615.420400160~650Y160M-4115625
2YAH153625.420400160~650Y160L-4156045
YA154216.520200110~385Y160L-4155515
2YA154226098
YA154817.220200120~420Y160L-4155918
2YA154826321
YAH154817.220400200~780Y160L-4156842
2YAH154827404
YA183616.520200140~220Y160M-4115205
2YA18362Y160L-4155946
YAH183616.520400220~900Y160M-4115900
2YAH18362Y160L-4156353
YA184217.620200140~490Y160L-4155829
2YA184226437
YAH184217.620400450~800Y160L-4156352
2HAY184227037
YA184818.620200150~525Y160L-4156289
2YA184826624
YAH184818.620400250~1000Y160L-4157122
2YAH184827740
YA214811020210180~630Y180M-418.59033
2YA21482Y180L-42210532
YAH214811020400270~1200Y180M-418.510430
2YAH21482Y180L-42211190
YA2160112.620200230~800Y180M-418.59926
2YA21602Y180L-42211249
YAH2160112.620400350~1500Y200L-43012490
2YAH2160213858
YA2448111.520200200~700Y180M-418.59834
YAH2448111.520400310~1300Y200L-43011830
2YAH2448213012
YA2460114.420200260~780Y200L-43012240
2YA2460213583
YAH2460114.420400400~1700Y200L-43013096
2YAH2460214455
