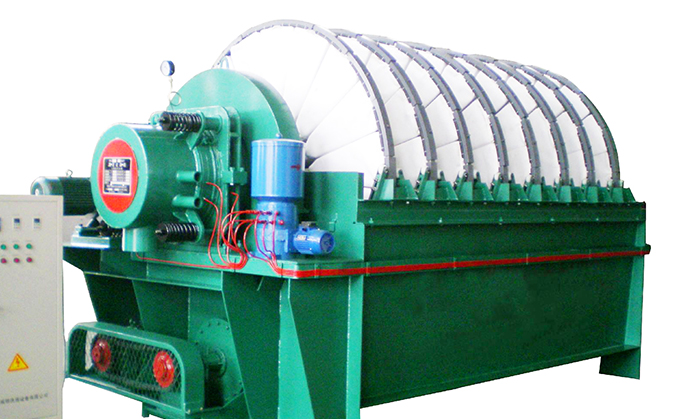

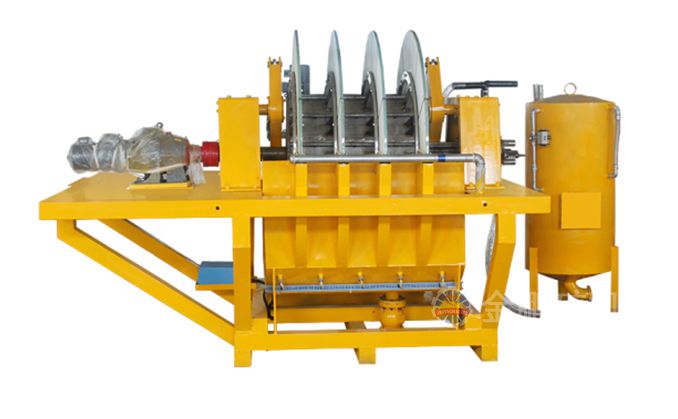

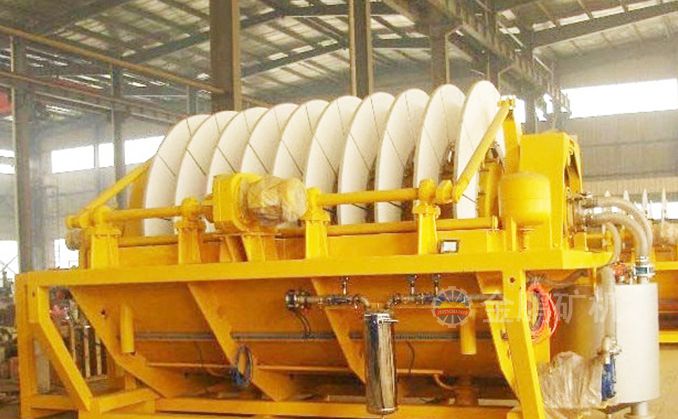

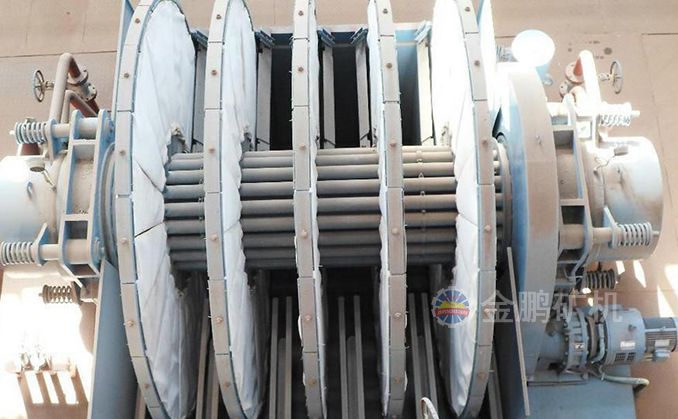

Disc type vacuum filter

Disk Vacuum Filter makes use of the pressure difference to separate the solid particles and liquid through the porous medium, such as filtration fabric and board. And the disk type vacuum filter uses the vacuum as the filtering power to separate the solid and liquid.

filter area : 9~116㎡

Structure

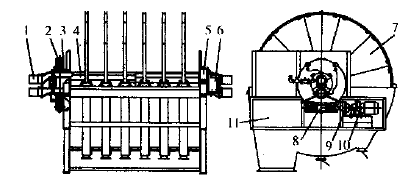

1.Distribution of the left head  2. worm wheel  3. worm gear case  4. center shaft  5. bearing pedestal  6. Distribution of the right head  7. fanning strip  8. Worm  9. Coupling  10. reduction gears  11. cell body

When working,the filter disc circles in the slurry tank. With the help of pressure difference generated by vacuum pump, the particle is absorbed on the cloth of the disc and forming a filter cake with a certain thickness. Filtrate will discharge from the central shaft through the filter cake and cloth, and the filter cake will fall down under the pressure of the scarper and blower, and then drop into the discharging filter cake tank.



Advantages

Small occupied area ,low power consumption

High vacuum degree, low concentration of filtrate and high filter efficieny

Can be recycled to use, reduce the emission

Easy installation and maintenance

Highly atumatic, reduce labor cost

Reliable structure and long lifepan

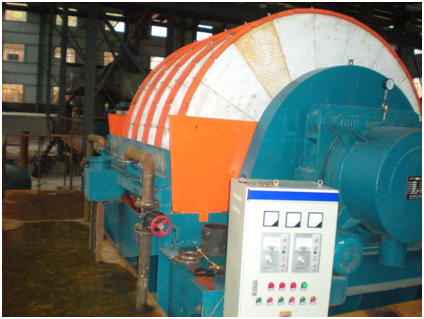

1500t/d Iron ore dressing plant,Guangxi guilin


Parameters

Disc type vacuum filter

model

filter area(m²)

Disc diameter(mm)

 filter plate number

Number of each filter plate of fan

Motor power

weight (T)

spindle motor

Mixing motor

GPT10-2

10

2100

2

20

4

5.5

10.4

GPT15-3

15

2100

3

20

4

5.5

11

GPT20-4

20

2100

4

20

4

5.5

11.6

GPT25-5

25

2100

5

20

4

5.5

12.2

GPT30-6

30

2100

6

20

4

5.5

12.8

GPT35-7

35

2100

7

20

4

5.5

13.4

GPT40-8

40

2100

8

20

4

5.5

14

GPT48-4

48

3100

4

20

5.5

7.5

18

GPT60-5

60

3100

5

20

5.5

7.5

21

GPT72-6

72

3100

6

20

7.5

7.5

24

GPT84-7

84

3100

7

20

7.5

7.5

27

GPT96-8

96

3100

8

20

7.5

7.5

30
