Max height : 0-2.5m

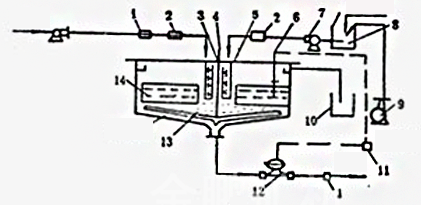

1、concentration meter;2、flowmeter;3、Rakes shaft drive and ascension;4、mixing agitator;5、Mortar and flocculant mixed cone;6、Dense phase interface sensor;7、Adjustable speed flocculant pump;8、Flocculant storage tank;9、overflow liquid pump;10、overflow liquid tank in the middle;11、Dense phase interface with the underflow concentration control interlocking flow meter;12、Bottom flow pneumatic diaphragm pump13、rake;14、hang plate
1. High-efficiency
2. Easy to maintain
3. Low consumption, energy saving
4. Reasonable design
5. Specification easy identification
High-efficiency thickener auto-control devic | |||
model | Matching thickener model | motor power(kw) | Max height control(m) |
GJK-33 | GX-3.6 | 3 | 0-2.5 |
GJK-375 | GX-3.6 | 7.5 | 0-2.5 |
GJK-311 | GX-3.6 | 11 | 0-2.5 |
GJK-575 | GX-5.18 | 7.5 | 0-2.5 |
GJK-511 | GX-5.18 | 11 | 0-2.5 |
GJK-5185 | GX-5.18 | 18.5 | 0-2 |
GJK-1245 | GX-12 | 45 | 0-2.5 |
GJK-1255 | GX-12 | 55 | 0-2.5 |
