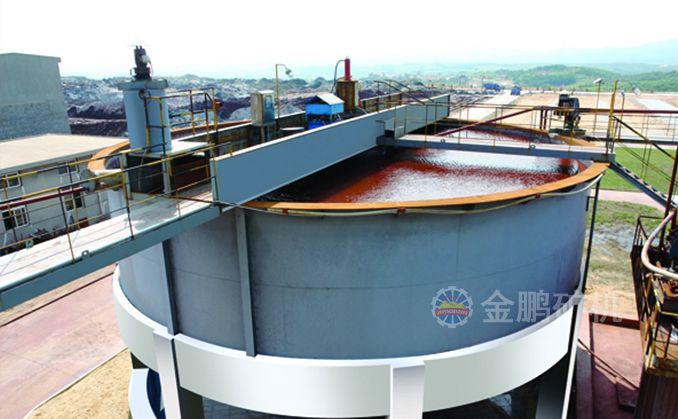

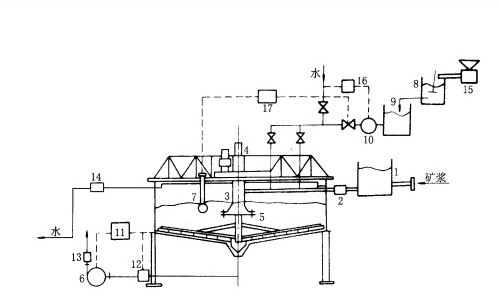

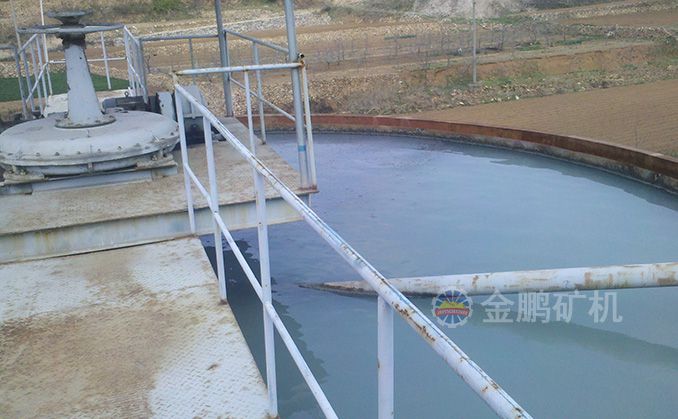

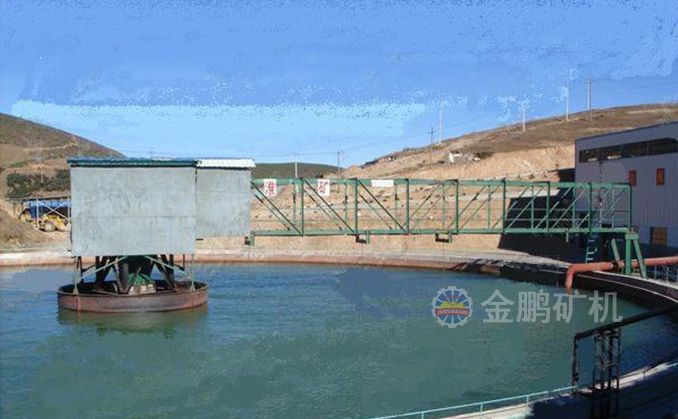

Structure
The thickener is mainly composed of two major parts including circular
thickening tank and rake-type mud scraper: The solid particles suspended in the
slurry in the thickening tank is settled by the gravity effect, after that, the
clear water is on top, which makes the solid-liquid separation. The slurry
deposited at the bottom of the thickening tank is continuously scraped to the
center of the tank bottom by rake-type mud scraper and discharged by the outlet,
and the clean water overflows from the top edge of the thickening tank.
Advantages
Produced by introducing American technology. New mechanical structure
strengthens the flocculation on solid particles of the flocculants. Flocculant
adding system can be provided, as well as the automatic control systems of
flocculant adding and highefficiency thickener.
Parameters
High-efficiency thickener |
model | GX-3.6 | GX-5.18 | GX-9 | GX-12 | GX-15 | GX-18 | GX-20 |
|
inner diameter(m) | 3.6 | 5.182 | 9 | 12 | 15 | 18 | 20 |
cell body height(m) | 1.7 | 2.15 | 3.56 | 3.723 | 3.6 | 4.4 | 4.4 |
Deposit area(m2) | 10 | 21 | 63.6 | 112 | 176 | 254 | 318 |
Rotation rate of rake(r/min) | 1.1 | 0.8 | 0.3 | 0.267 | 0.2 | 0.13 | 0.13 |
lift height(m) | 0.2 | 0.3 | 0.35 | 0.35 | 0.4 | 0.4 | 0.4 |
Drive motor | model | Y100L-6 | Y132M1-6 | XWD6-43 | XWD6-47 | Y160L-6 | Y180L-6 | Y180L-6 |
power(kw) | 1.5 | 4 | 4 | 4 | 11 | 15KW | 15KW |
Lift motor | model | XWD4-87 | XWD4-87 | XWD3-43 | XWD3-43 | Y132M2-6 | Y132M2-6 | Y132M2-6 |
power(kw) | 0.75 | 0.75 | 0.75 | 0.75 | 5.5 | 5.5 | 5.5 |
tank weight(kg) | 2829 | 5341 | 15980 | 25102 | 31635 | 49694 | 59365 |
gross weight(kg) | 6650 | 10460 | 23680 | 39321 | 55202 | 65992 | 81238 |
Corollary equipment
1.Flocculant adding device
Product Parameters：
model | motor model
| motor power(kw) | weight(kg) |
XNJ-15 | 110SZ52 | 0.185 | 106 |

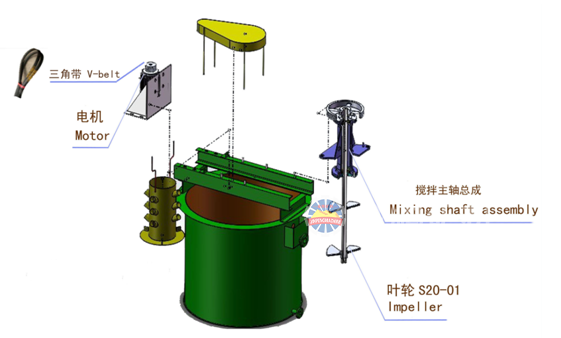

2.Flocculant mixing:
Product Parameters
model | Specification | Effective volume | Impeller diameter | Impeller speed | motor model
| motor power
| weight |
XBJ1.0×1.75 | Φ1000×1750 | 1.1 | 450 | 133 | Y132S-8 | 2.2 | 530 |
XBJ1.5×1.5 | Φ1500×1500 | 2.2 | 518 | 320 | Y132S-6 | 3 | 1260 |
3.Flocculant Automata quantity control device
Product Parameters：
pipe diameter | working pressure (Mpa) | Max flow(kg) | measurement accuracy(%) | temperature(℃) | power(kw) | Metering pump motor power(kw) |
DN15-25 | ≤1.6 | 600 | ±0.5 | 0-40 | ≤40 | 1.5 |
