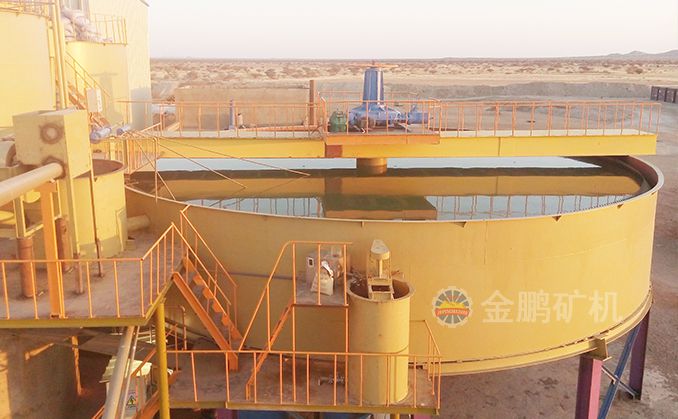

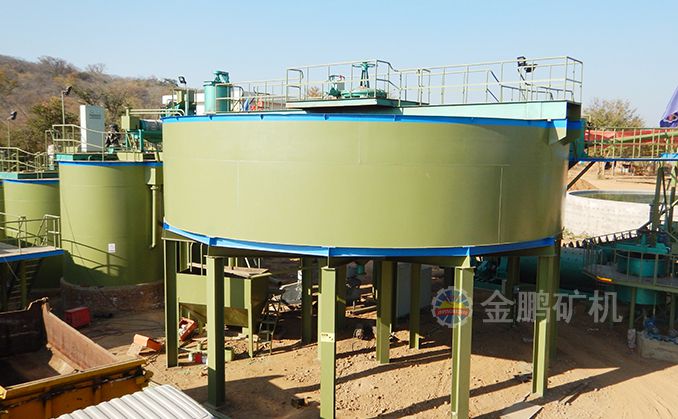

Mono-layer scrubbing thickener

Single center drive washing thickener is researched on on the basis of my company many years practice experience and become the center of the transmission type of thickener.In many mining enterprises have been applied in the implementation, and brings to the enterprise the objective economic benefits.

Scope of application : Mining ore dressing, metallurgy,Tailings pulp thickening and dense process when processing

Production capacity : 22-2000t/d

working principle

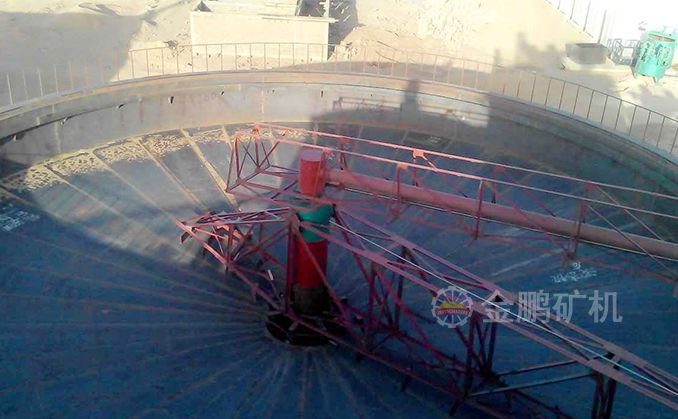

Single center drive washing thickener stir pulp by using the impeller rotating at the bottom of dense groove, making the ore grain and medicament can fully contact.To ensure the heavy mineral particles can completely in the groove by its own gravity settling at the bottom of concentrate, achieve the goal of stratification.At the same time, the lower part of the layered minerals part out from under the thickener, resulting in getting high concentration slurry.


Advantages

1, single center drive washing thickener handling solids flocculating ability;

2, single center drive thick washer machine automatic control system of flexible;

3, single center drive washing thickener machine service life is long;

4, single center drive washing thickener pulp large quantity.

Parameters

Single washing thickener

型号

thickening tank(m)

Desilting Area(m3)

rotate speed
(min)

Motor

Rake Height(mm)

Production capacity(T/d)

Tank weight(kg)

Gross weight(kg)

Diameter

depth

Model

power(KW)

NZS3

3.6

1.8

10.2

3

Y90L-6

1.1

350

22.4

1730

3150

NZS6

6

2.95

28.3

3.7

Y90L-4

1.5

280

14-62

4032

9071

NZS8

8

3.318

50.2

4.57

Y132S-6

3

350

25-140

11065

17037

NZS9

9

3

63.5

4.57

Y132S-6

3

350

32-150

12188

19002

NZS12

12

3.5

113

5.26

Y132S-6

3

250

≤250

24060

33131

NZ15

15

4.4

176

10.4

Y132M-6

5.5

400

≤350

26000

37200

NZ20

20

4.4

314

10.4

Y132M-6

5.5

400

≤960

水泥壳

24504

NZ30

30

5.112

707

16

Y160M-63

7.5

400

≤1570

水泥壳

34460

NZ-12Q

12

3.5

113/224

5.26

Y132S-6

3

250

480

水泥壳

12750

NZ-15Q

15

4.4

176/800

10.4

JTC752A-44

5.2

400

800

水泥壳

32400

NZ-20Q

20

4.4

314/1400

10.4

JTC752A-44

5.2

400

14400

水泥壳

43218

NZ-24Q

24

4.4

452/2017

10.4

XWED7.5-106-1/121

7.5

400

2000

水泥壳

60000
