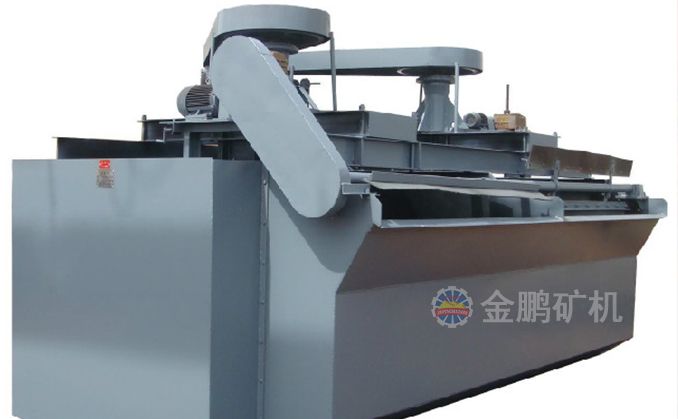

SF Flotation machine

Flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.

Production capacity : 0.2-24 m³/min

Applicable material : non-ferrous metals, ferrous metals and non-metallic mineral sorting

Structure


SF Flotation machine

1. belt wheel  2. aspirating tube  3. center cylinder  4. principal axis  5. cell body  6. cover board  7. Impeller  8. honeycomb duct  9. false bottom  10.  the upper blade  11.the lowerblade  12. impeller disk

When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

Advantages

1.Large air-absorption capacity and low power consumption

2.Long service life of vulnerable parts

3.Suitable for flotation of large particle size materials

4.Can compose a joint flotation unit with JJF flotation cell

Parameters

SF Flotation machine

Model

Effective volume(m³)

Production capacity

(m³/min)

Impeller diameter(mm)

Impeller revolutions(r/min)

Motor power(kw)

2 tanks weight
(kg)

Agitator

Scraper blade

SF-0.37

0.37

0.2-0.4

300

352-442

1.5

0.55

940

SF-0.7

0.7

0.3-1.0

350

336

3

1.1

1940

SF-1.2

1.2

0.6-1.2

450

312

5.5

1.1

2800

SF-2.8

2.8

1.5-3.5

550

280

11

1.5

4240

SF-4

4

2--4

650

235

15

1.5

5200

SF-6

6

3--6

760

191

30

2.2

6000

SF-8

8

4--8

760

191

30

1.5

8584

SF-16

16

5.0-16

850

169-193

45

1.5

14830

SF-20

20

5.0-20

730

186

30X2

1.5

19646

BF Flotation machine

Model

Effective volume(m³)

size(mm)

Impeller diameter(mm)

Impeller rotational speed(m/s)

 Entrained-air volume

 (m³/㎡.min)

Motor

Production capacity(m³/min)

Single tank weight
(kg)

Model

Power(kw)

BF-0.15

0.15

550×550×600

200

6

0.9-1.05

Y112M-6

2.2

0.06-0.16

270

BF-0.25

0.25

650×600×700

250

Y100L-6

1.5

0.12-0.28

370

BF-0.37

0.37

740×740×750

286

7.2

Y90L-4

0.2-0.4

470

BF-0.65

0.65

850×950×900

300

7.35

0.9-1.10

Y132S-6

3

0.3-0.7

932

BF-1.2

1.2

1050×1150×1100

450

7.02

Y132M2-6   Y132M1-6

5.5/4

0.6-1.2

1370

BF-2.0

2

1400×1450×1120

500

7.5

Y160M-6

7.5

1.0-2.0

1750

BF-2.8

2.8

1650×1650×1150

550

8.06

Y180L-8

11

1.4-3.0

2130

BF-4.0

4

1900×2000×1200

650

8

Y200L-8

15

2.4-4.0

2585

BF-6.0

6

2200×2350×1300

700

7.5

Y225S-8

18.5

3.0-6.0

3300

BF-8.0

8

2250×2850×1400

760

Y225M-8

22

4.0-8.0

4130

BF-10

10

2250×2850×1700

7.52

5.0-10

4500

BF-16

16

2850×3800×1700

850

8.7

Y280S-8 Y280M-8

37/45

8.0-16

8320

BF-2020
2850×3800×200010.0-208670
BF-2424
3150×4150×2000920Y280M-84512.0-248970
