Circular Flotation Machine

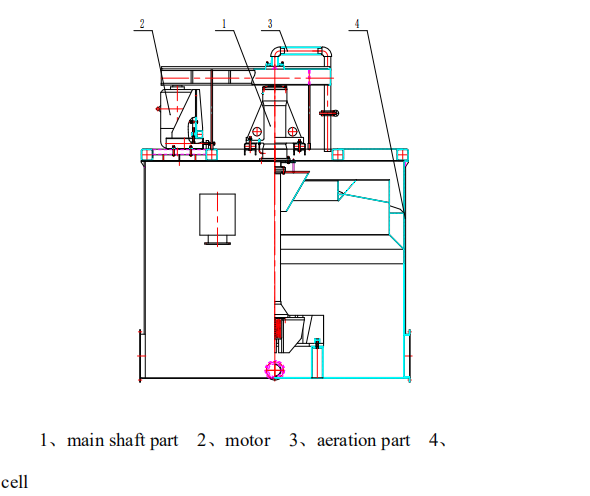

The structure of forced-air circular flotation cell is shown in the following figure. Those cells can be adopted as rougher, scavenger and cleaner.

Type : Flotation Separator

Detail

Application Scope

The structure of forced-air circular flotation cell is shown in the following figure. Those cells can be adopted as rougher, scavenger and cleaner. The capacity of a single flotation cell can be up to 680m3.



Main Features



>> Layout Plan





>> Dimension of flotation cells

ModelMajor Dimensions (mm)
ABCDEFGHIJ
KYF-523003200230085024504900120040038281200
KYF-1030003578266085031966392120040041881200
KYF-3039905116369590042008400110060052101100
KYF-50487057204170940500010000128060056801240
KYF-70522064604860940540010800142080063801240
KYF-1006050695042481240620012400130080065701400
KYF-1306720734054001200692013840140080069201400
KYF-1607200763052001258740014800140080072001400
KYF-20077008650608012507916158321600100076161280
KYF-320908010150748013009100182001800110090001400



>> Technical Data

ModelEffective Volume
m3
Motor Power
Kw
Min. Inlet Air Pressure
kPa
Aeration Rate
m3/m2.min.
KYF-5511150.05-1.4
KYF-101022200.05-1.4
KYF-303045310.05-1.4
KYF-505075330.05-1.4
KYF-707090410.05-1.4
KYF-100100132460.05-1.4
KYF-130130160500.05-1.4
KYF-160160160520.05-1.4
KYF-200200220560.05-1.4
KYF-320320280640.05-1.4
