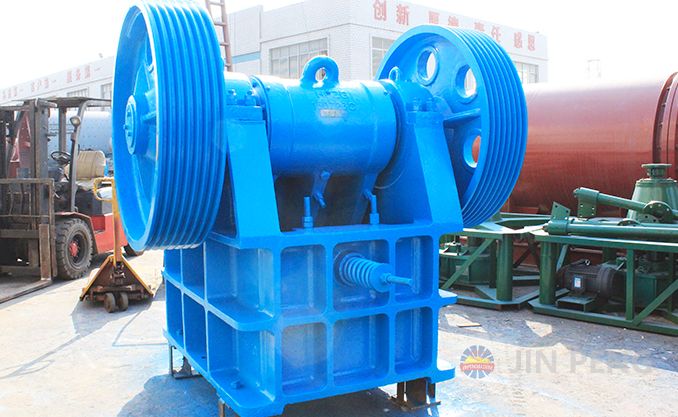

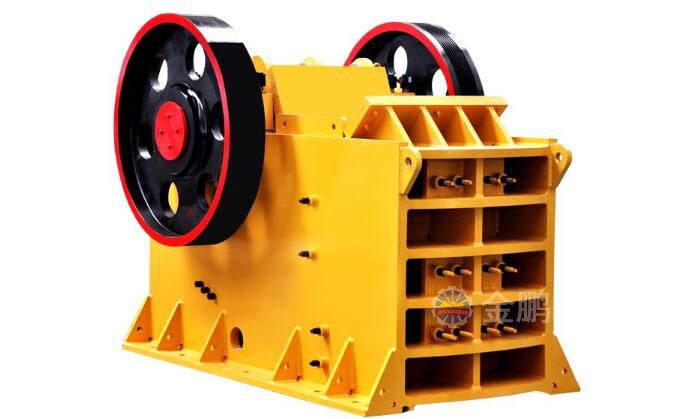

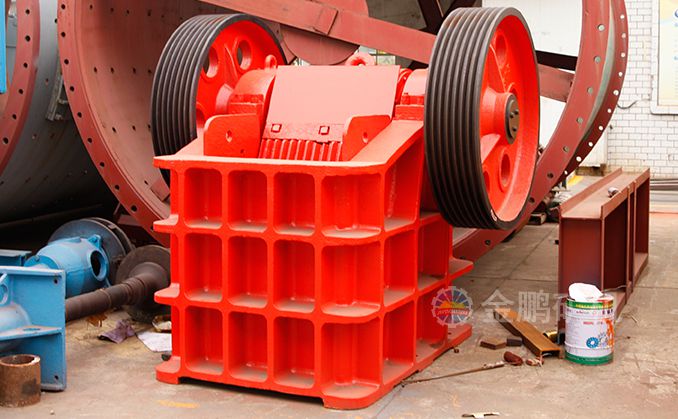

ZG-PE(X)jaw crusher

Jaw crusher works though the periodic movement of moving jaw by broken material usually used in coarse crushing stage has feature blew: High production capacity, Great breaking ratio, broken high efficiency

Scope of Application : Ballast, mining, coal mining, dry powder mortar, concrete mixing station, power plant desulfurization, quartz sand, etc

Production capacity : 1-192t/h

Max particle : 80-630mm

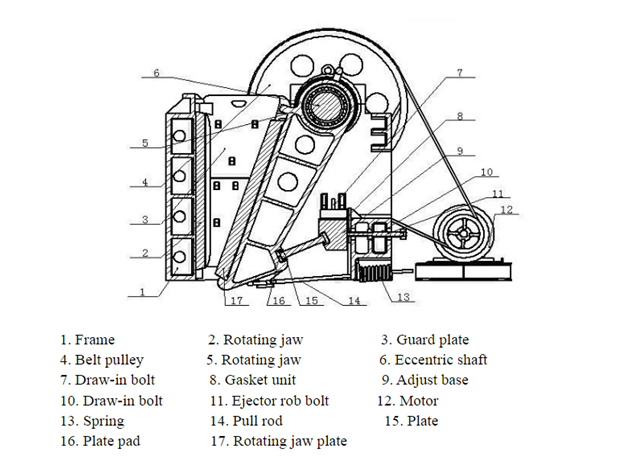

Structure

Jaw crusher is composed of frame, rotating jaw, eccentric shaft, jaw plate and plate knee, etc. The motor drives the eccentric shaft through V-belt, making the movable jaw do periodic movement according to the well timed track. The material is crushed in this process.   The frame adopts whole cast steel structure or welding steel plate. Guard plates are installed on the left and right side of the frame, preventing the side frame wearing.  Rotating jaw adopts moulding cast steel, which has movable jaw plate at front, the above part hang on the frame by the eccentric shaft and rotating shaft, the under part bear on the plate. Belt pulley with fly wheel and trough are installed at both side of eccentric shaft.  The other side of plate knee bear on the adjust base. The plate supports the movable jaw, also it can cut off itself for safety when the load is increased, protecting the other part of the components. One spare plate is with the machine, which is used at the discharging opening.  Adjust base is installed in the side trough of the frame, close to the adjust block. When the discharging opening need adjust, turn right of the screw nut with the spanner. Adjust base rise, the discharging opening becomes Small, otherwise, small instead.

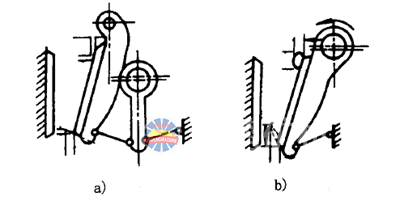

Two forms :  a)Simple swinging type      b)complicated swinging type

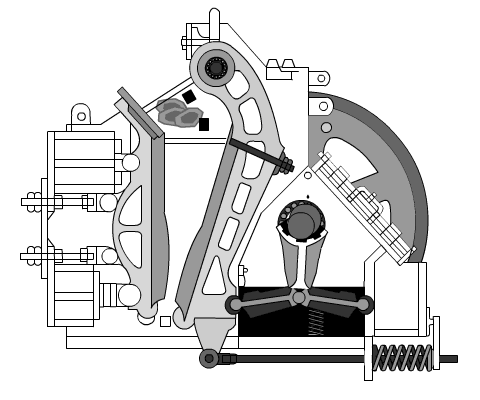

Principle


The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet

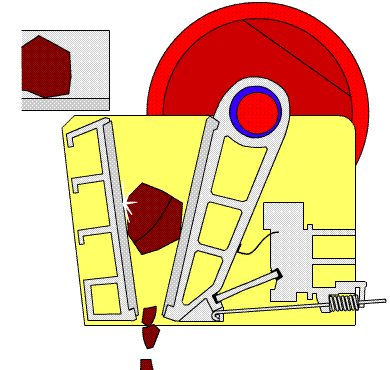

Working Principle of Jaw Crusher:


Characteristics of Jaw Crusher:

-High ratio of crushing,

 -Even final size, -Simple structure,

 -Reliable working condition,

 -Easy maintenance,

-Low operating cost


Parameters


Model

Input Measure(mm)

Output Adjustment Range(mm)

Max particle(mm)

production capacity(T/h)

Eccentric wheel speed(r/min)

Dynamo power(KW)

Boundary dimension

(mm)

Weight(kg)

PE-100×150

100×150

5-20

80

0.5-2

300

2.2

525×535×605

230

PE-150×250

150×250

10-40

125

2-6

300

5.5

875×745×935

1100

PE-200×350

200×350

10-50

160

6-10

300

7.5

1080×1060×1088

1600

PE-250×400

250×400

20-60

210

8-16

300

15

1108×1090×1392

1850

PE-250×500

250×500

20-80

210

13-21

300

18.5

1360×1450×1440

3100

PE-400×600

400×600

40-100

350

14-36

275

30

1650×1748×1520

5800

PE-500×750

500×750

50-120

400

30-80

250

45

1900×1876×1821

9000

PE-600×900

600×900

75-200

480

56-192

250

55-75

2280×2245×2320

18700

PEX-150×750

150×750

10-40

120

8-25

320

15

1210×1572×1045

2800

PEX-200×1000

200×1000

15-40

160

12-50

330

22

1860×1385×1200

5200

PEXS-250×750

250×750

20-60

210

10-745

320

22

1520×1728×1380

5000

PEX-250×1000

250×1000

20-50

210

15-50

330

30

1550×1990×1370

6500

PEXS-250×1200

250×1200

20-60

210

20-70

320

45

1530×2285×1625

9000

ZG-PE-250×400

250×400

20-60

 200

8-16

300

15

1430×1316×1296

2800

ZG-PE-250×500

250×500

20-80

210

13-21

285

18.5

1425×1420×1417

3300

ZG-PE-400×600

400×600

40-100

350

14-36

275

30

1700×1732×1656

6500

ZG-PE-600×900

600×900

75-200

460

56-192

250

55

2240×2150×2400

15400

ZG-PEX-150×750

150×750

10-40

120

8-25

320

15

1210×1572×1045

3500

ZG-PEX-250×750

250×750

20-60

210

10-45

320

22



1751×1400×1515

4900

ZG-PEX-250×1000

250×1000

20-50

210

15-50

330

30

1550×1990×1370

6800

ZG-PEX-250×1200

250×1200

20-60

210

20-70

320

45

1670×2190×1430

9000

PE-750×1060

750×1060

100-200&
