Scope of Application : Pregnant solution purification

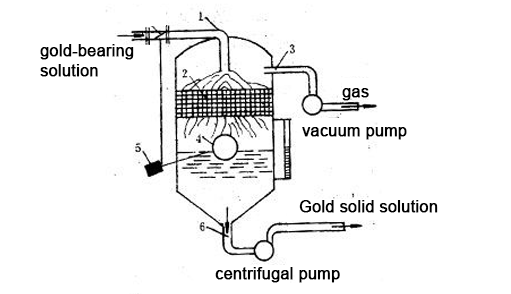

1. liquid inlet 2. wooden grid 3. exhaust port 4. Drogue 5. counter weight 6. liquid outlet

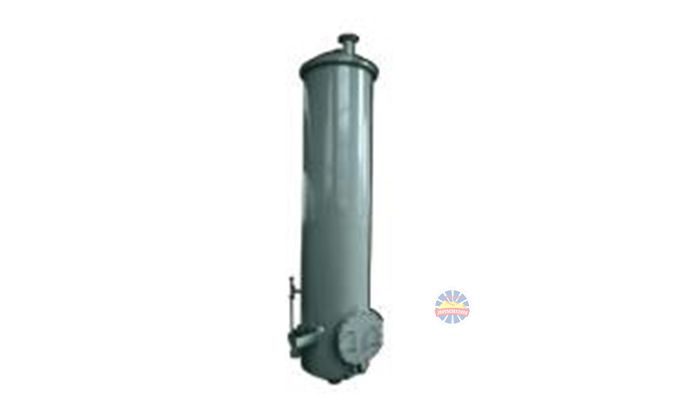

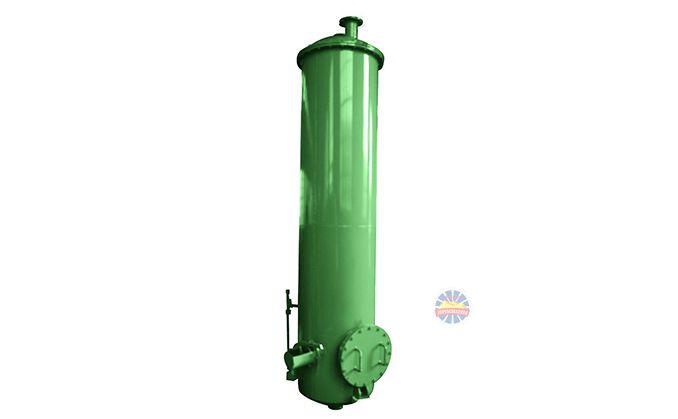

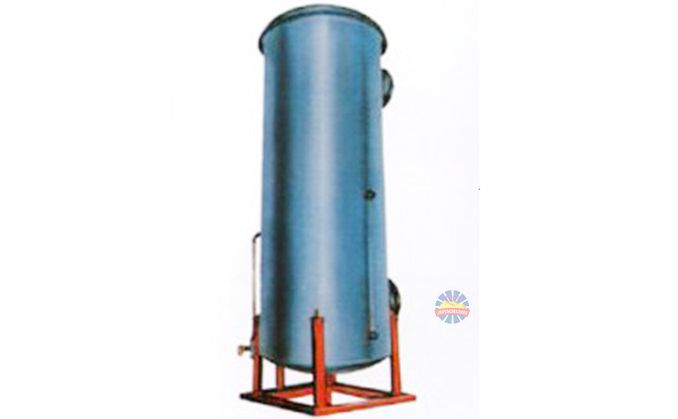

1. DE oxygenation tower is a kind of vacuum DE oxidation equipment used for deoxygenating before Cyanidation solution displacement.
2. It is equipped with spray thrower and leveling device.
3. A batten grid structure is adopted for its packing layer, with good adhesively and deoxygenating effect better than that of plastic packing
A .High efficiency,
B .Energy saving,
c. easy to maintain
Deoxygenation tower | |||||
Model | Size | Working pressure vacuum degree | operating temperature | sprinkling rate | Weight |
(mm) | (Mpa) | (m³/㎡.h) | (kg) | ||
TY－830 | φ800×3000 | 0.09-0.096 | normal temperature | 1.56 | 747 |
TY－1030 | φ1000×3000 | 956.2 | |||
TY－1136 | φ1100×3600 | 1168 | |||
TY－1236 | φ1200×3600 | 1232 | |||
TY－1435 | φ1400×3500 | 1517 | |||
TY－1536 | φ1500×3600 | 1632 | |||
TY－1840 | φ1800×4000 | 2.08 | 2042 | ||
TY－2035 | φ2000×3500 | 2642 | |||
