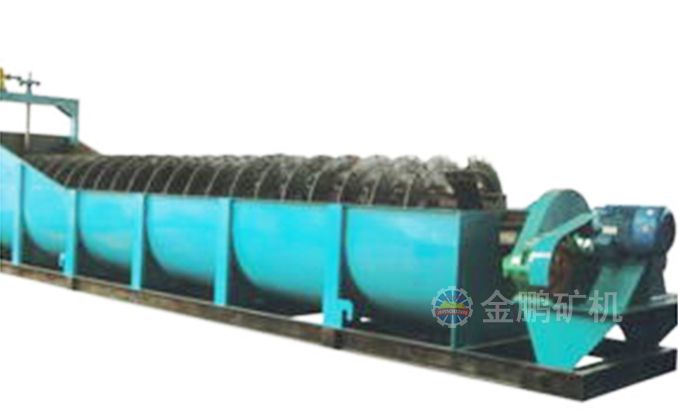

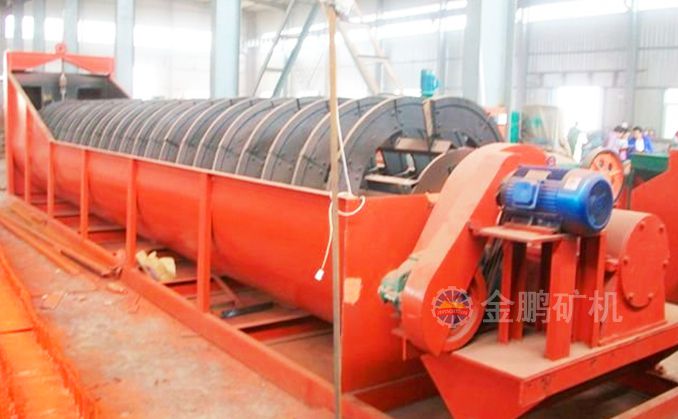

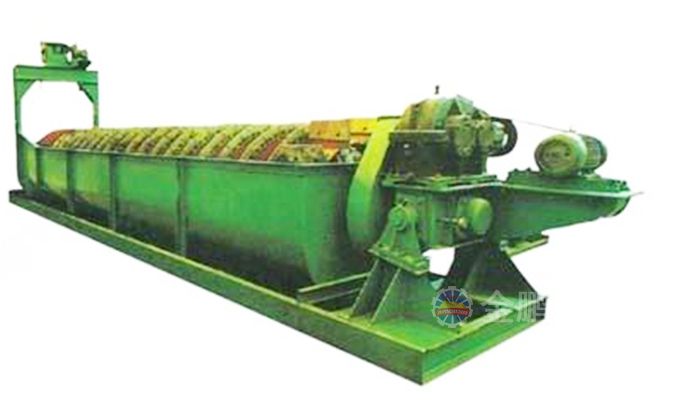

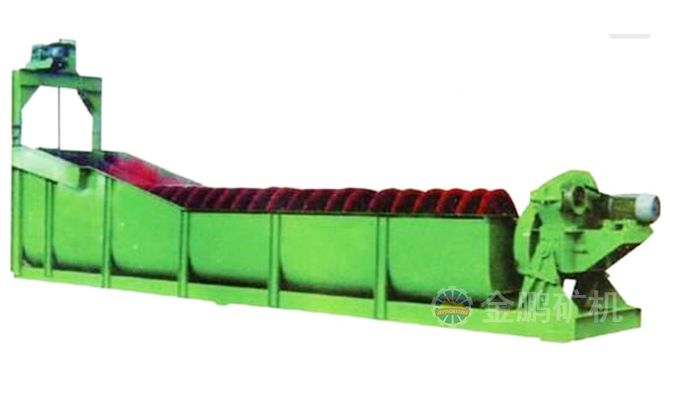

Submerged spiral classifier

The spiral classifier is widely used to pregrading and inspection grading in closed circuits when used in the production flow of metal processing. According to the difference in sedimentation rate of mineral particles and mud, the particle sizes of ores with 1.5mm-0.03mm are classified. Classification equipment---the spiral of overflow end is completely immersed below liquid level. An automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation

Scope of Application : overflow particle size is 0.15 ~ 0.07 mm of ore grade

Production capacity : 50～1410 t/d

Principle
Advantages
Parameters
Browse other product

Principle

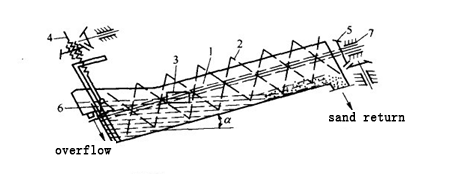

1. water channel 2. spiral 3.feed inlet 4. Spiral lifting device 5. Spiral gearing 6. downflow weir 7. Bearing

Fine ore pulps are fed into water tank through feeding opening located in the center of settling zone. Beneath the inclined water tank is the ore pulp classification zone where ore pulps are stirred by low-speeded impellers. Fine ore particles are lifted up and then spilled out the overflow opening; coarse ore particles precipitate down to tank bottom and are discharged via discharge opening

Advantages

Energy saving;

Increase the return sand sand back end automatic lifting device, unconfigure ball tablespoon head;

Per ton of ore can be saved 1 to 1.5 degrees;

Avoid maintenance tablespoon head frequently;

It slowed the uneven impact of the mill large and small gear.

Parameters

Submerged spiral classifier
Type	Model	Specification	spiral diameter(mm)	Spiral speed(r/min)	Flume			Production capacity(t/24h)		drive motor power(kw)	lifting motor power(kw)
Type	Model	Specification	spiral diameter(mm)	Spiral speed(r/min)	length(mm)	width(mm)	obliquity(°）	overflow Volume	Sand return Volume	drive motor power(kw)	lifting motor power(kw)
single-screw	FC-10	Φ1000	1000	6-7.4	6500	1110	10.5°-14°	75	473-1026	5.5
	FC-12	Φ1200	1200	5,6,7	8400	1372	10.5°-14°	120	1170-1630	7.5	2.2
	FC-15	Φ1500	1500	2.5,4,6	10500	1664	14°-18.5°	185	1140-2740	7.5	2.2
	FC-20	Φ2000	2000	5.4	12800	2396	14.5°-18.5°	400	5940	18.5	2.2
	FC-24	Φ2400	2400	3.6	14130	2600	14°-18.5°	455	6800	18.5	2.2
	FC-30	Φ3000	3000	3.2	14300	3200	14°-18.5°	705	11650	30	4
double-screw	2FC-12	Φ1200	1200	6	8400	2620	14°-10.5°	240	1770-2800	7.5X2	2.2×X2
	2FC-15	Φ1500	1500	2.5,4,6	10500	3200	14°-18.5°	370	2240-5360	7.5X2	2.2×2
	2FC-20	Φ2000	2000	5.4	12800	4280	14.5°-18.5°	640	7780-11880	18.5X2	2.2×2
	2FC-24	Φ2400	2400	3.6	14130	5040	14°-18.5°	910	13700	18.5X2	2.2×2
	2FC-30	Φ3000	3000	3.17	14300	6300	14°-18.5°	1410	23300	30X2	4×2
