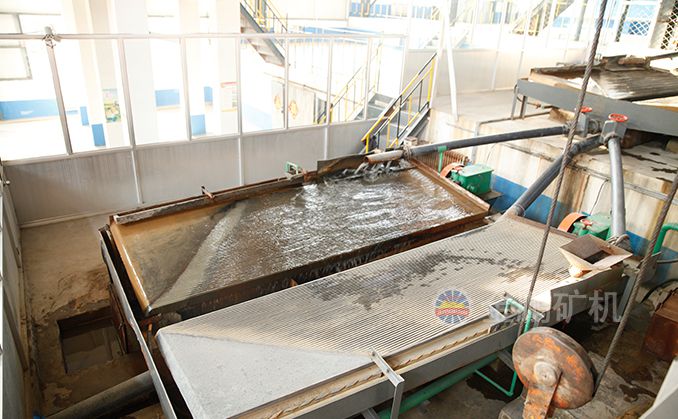

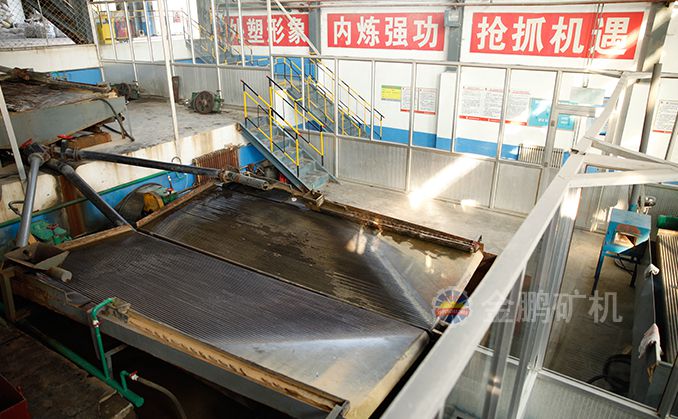

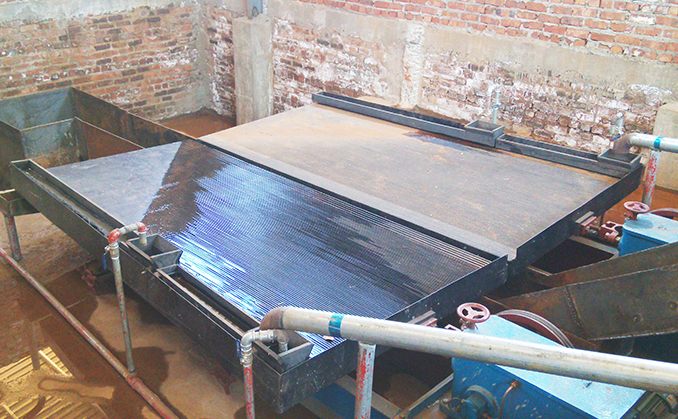

6-s Shaking table

6-S shaking table shaking table is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.037 millimeters.

6-S shaking table sh : 10-60T/d

Principle

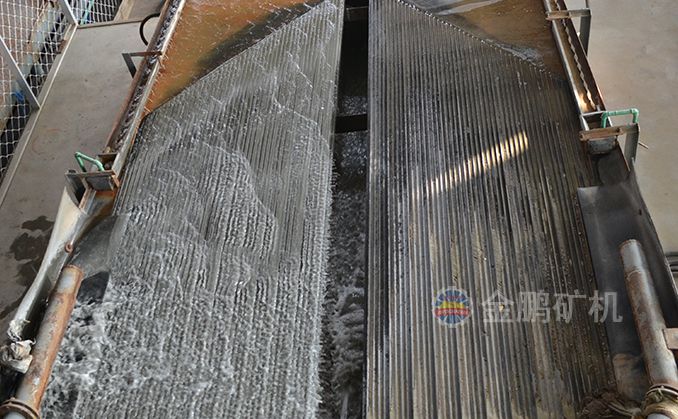

The working principle of 6-s shaking table  is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.


Advantages

a)         High recovery ratio

b)         High concentration ratio

c)         Easy installation

d)         Simple operation

e)         Deck constructed of fiber glass

f)          Adj

g)         Three different decks to choose

h)         Long working life

i)           ustable stroke length and speed

Parameters

6-s Shaking table

table length

4520mm

feeding mouth wide

1825mm

throat breadth

1560mm

stroke

8-36mm

jig frequency  c. p. m

245-380

Max particle

0.02-2mm

Feed density

25%-30%

Production capacity

15-108t/d

Transverse slope adjustment range

0-10度

water consumption

19-75kg/min

Motor

Y90S-4

motor power


1.1kw
