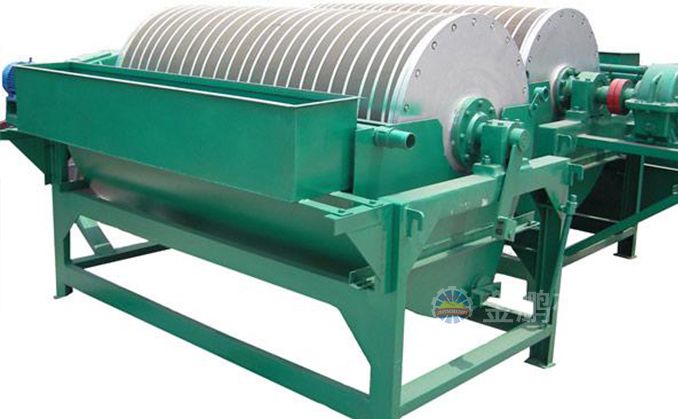

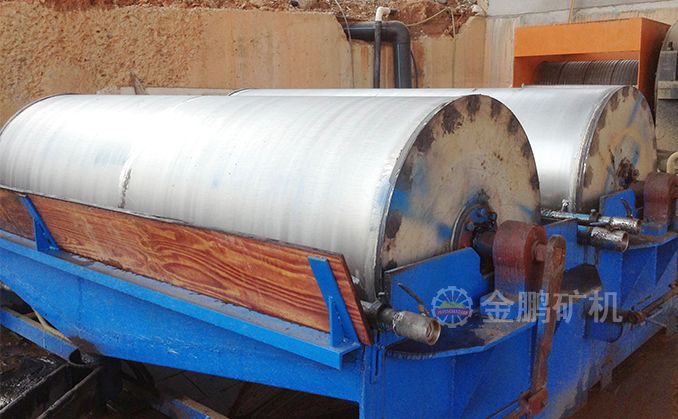

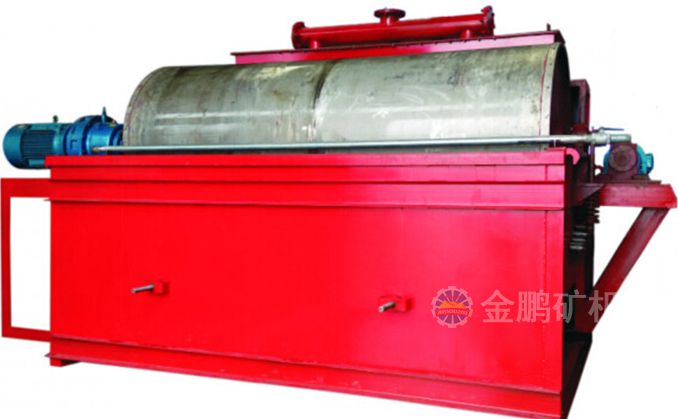

Wet weak magnetic field CXJ

Magnetic Separator CTS/CTN/CTB Series Application:Suitable for iron ore, fly ash of iron power plant separator with large capacity, high recovery rate, especially for iron ore concentrate select.

Production capacity : 10-150t/h

Principle

When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.

Advantages

--Optimized design;

--Scientific magnetic circuit, made of strong magnetic coercive force;

--High-remanence permanent magnet;

--Safe and reliable.

Product Parameters

Weak magnetic field Permanent magnetic drum wet separator
Modelcylinder size(diameter ×length)mmcylinder surface magnetic field strength(T)Production capacityMotorPower(kw)cylinder speed(r/min)gross weight(kg)
center poleScavenging districtMidfielder strong magnetic fieldt/hm3/h
CTB-44400×400130180250-4001-24-51.145350
CTB-46400×600130180250-4002-35-101.145600
CTB-63400×300140180250-4003-58-151.140600
CTB-66400×600140180250-4005-1010-301.140750
CTS-69
CTB-69
600×900180180250-4008-1520-501.140830
910
CTS-612
CTB-612
600×1200140180250-40010-2025-602.240960
1050
CTS-618
CTB-618
600×1800140180250-40015-3040-802.2401340
1340
CTS-712
CTB-712
750×1200160200300-50015-3040-803351500
CTS-718
CTB-718
750×1800160200300-50020-4560-1003352100
CTS-918
CTB-918
900×1800170200300-60025-5570-1204282900
CTS-924
CTB-924
900×2400170200300-60035-7080-1304283600
CTS-1018
CTB-1018
1050×1800180220300-70040-75110-1605.5224000
CTS-1021
CTB-1021
CTN-1201
1050×2100180220300-70050-100140-2005.5224500
CTS-1024
CTB-1024    CTN-1204
1050×2400180220300-70060-120170-2605.5225000

CTS-1030

CTN-1230

CTB-1030
1050×3000180220300-70070-150200-3207.5226300

CTS-1218

CTB-1218

1200×1800180220300-70060-110150-2305.5194900

CTS-1224

CTB-1224

1200×2400180220300-70070-13080-3007.5195900

CTS-1230

CTB-1230

1200×3000180220300-70080-160250-4007.5197200

CTS-1530

CTB-1530

1500×3000180220300-700100-180290-48011148900

CTS-1540

CTB-1540

1500×4000180220300-700115-220300-54011149900
