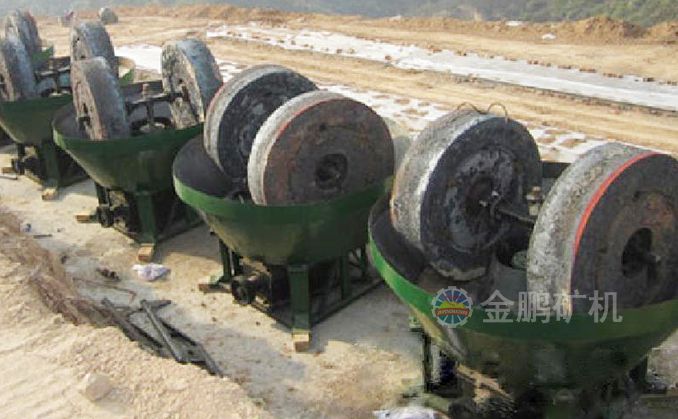

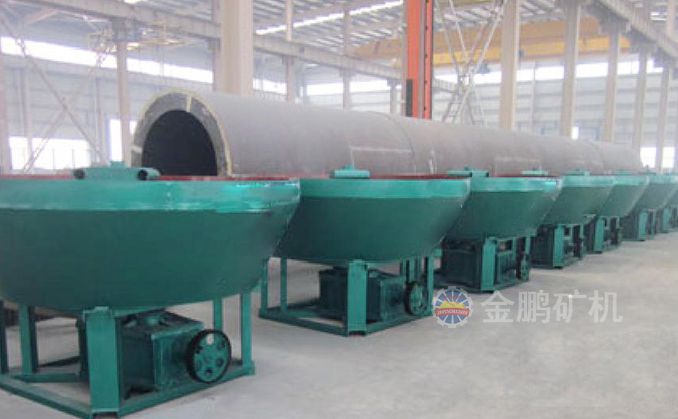

Grinding gold machine

The new energy-saving structure of motor built-in wet gold grinding machine, vacuum casting roller, large diameter grinding pot design, make the new rolled gold machine has stable structure, safe use, long service life, high efficiency and energy saving, high yield characteristics, widely used for grinding various ferrous metals, non-ferrous metals, non-metallic minerals, and dilute the precious metals gold and silver, grinding and processing operations, the effective resources can be fully utilized…

Max particle : ≤3cm

Structure

Introduction:

The new energy-saving structure of motor built-in wet gold grinding machine, vacuum casting roller, large diameter grinding pot design, make the new rolled gold machine has stable structure, safe use, long service life, high efficiency and energy saving, high yield characteristics, widely used for grinding various ferrous metals, non-ferrous metals, non-metallic minerals, and dilute the precious metals gold and silver, grinding and processing operations, the effective resources can be fully utilized, is the majority of small and medium sized concentrator, the mill first optimal grinding equipment.


Structure

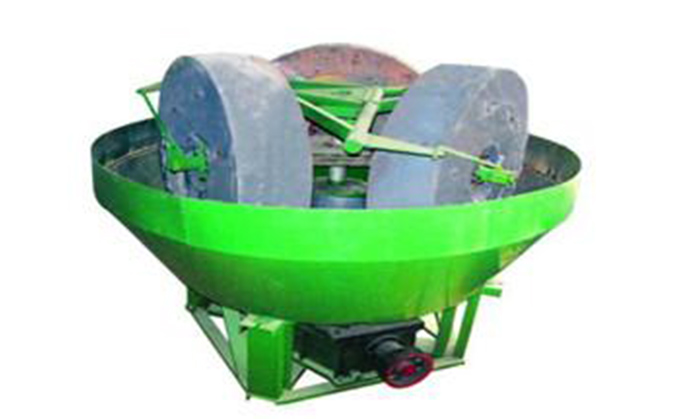

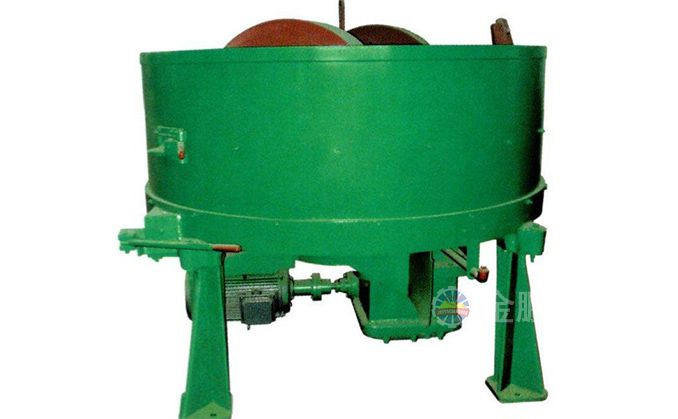

Our Wet Pan Mill for Gold is mainly consists of driving device, frame, water basin, grinding wheels and grinding base, etc.

Working Principle

First of all, the Wet Pan Mill for Gold motor will transmit power to the reducer, by the reducer, through a large vertical pass torque at the top of the horizontal axis and then it through a horizontal two axis pull rod to grinding wheel, the grinding wheel have driving force, along the horizontal axis do counterclockwise motion; Studio of the grinding wheel can be turning around wet mill big vertical shaft, and around the wheel of center shaft rotation, pan is stationary; Adding ore materials, in the mill from the extrusion wheel of its own weight, grinding wheel with the pan during the revolution of great friction, by repeated after extrusion, kneading, grinding, were crushed.

Working Step

1. When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles;

2. Kindly please put in 5 kg mercury at first, the mercury can absorb the gold or other metals;

3. At last, use a high-density red cloth to wrap mercury up;

4. Then squeeze it, the mercury will be pressed out and pure gold stayed;

5. If large capacity, we will use mercury shaking machine and mercury steamer to replace the manual work.

Feature

1.Strong applicability, high efficiency;

2.High productivity;

3.Labor saving;

4.Suitable for various materials.

Product Parameters

Water stone roller

Model

specification

feed particle

Speed (r/min)

Motor model

Motor power(Kw)

Weight(T)

1600A

1600×400×200×500±20mm

进料粒度不大于3cm

20-22

Y225M-6

30

14.5

1500A

1500×350×200×460±20mm

20-22

Y200L2-6

22

13.3

1500B

1500×350×150×460±20mm

20-22

Y200L2-6

22

12.3

1500C

1500×300×150×420±20mm

20-22

Y200L2-6

22

11.3

1400A

1400×250×150×350±20mm

16-18

Y200L1-6

18.5

8.5

1400B

1400×250×150×350±20mm

21-23

Y180M-4

18.5

8.5

1350A

1350×250×150×350±20mm

16-18

Y200L1-6

18.5

8

1350B

1350×250×150×350±20mm

21-23

Y180M-4

18.5

8

1300A

1300×250×150×350±20mm

16-18

Y180L-6

15

7.5

1300B

1300×250×150×350±20mm

21-23

Y160L-4

15

7.5

1200A

1200×220×80×270±20mm

17-19

Y160M-6

7.5

5.5

1200B

1200×220×80×250±20mm

23-25

Y132M-4

7.5

5.5

1100A

1100×220×80×250±20mm

17-19

Y160M-6

7.5

5

1100B

1100×220×80×250±20mm

23-25

Y132M-4

7.5

5

1000

1000×220×80×250±20mm

13-15

Y132S-4

5.5

4.5
