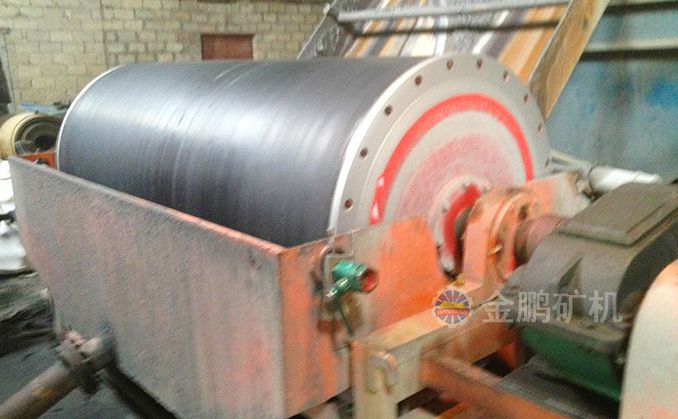

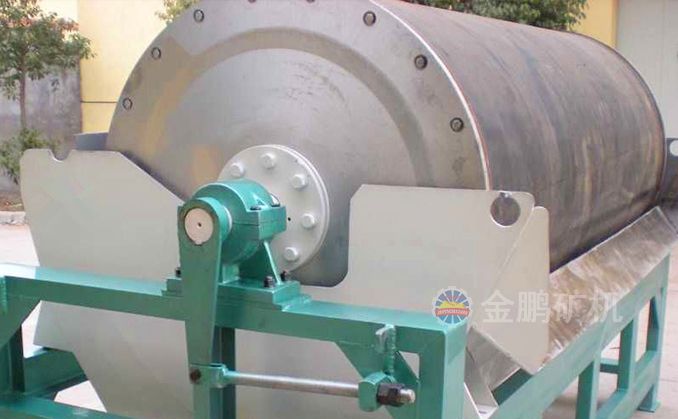

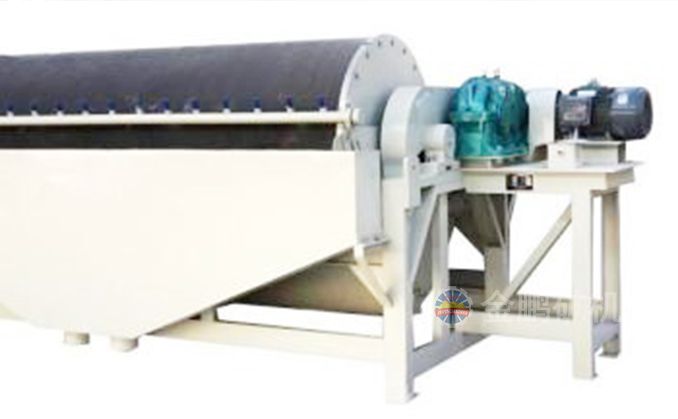

CTB permanent magnetic drum separator

Suitable for iron ore, fly ash of iron power plant separator with large capacity, high recovery rate, especially for iron ore concentrate select;The downstream tank (Series of CTS) is applicable to rougher flotation and concentration of ore with size: 6-0 mm.;The half upstream tank (Series of CTS) is applicable to rougher flotation and concentration of ore with size: O~0.5mm, the granularity of granule is 0.15-0.8mm.

Production capacity : 10-125t/h

working principle

When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials cannot be attracted and will flow to the discharge pipe for tailings.

Features

 --Optimized design

--Scientific magnetic circuit, made of strong magnetic coercive force
--High-eminence permanent magnet

--Safe and reliable.

 (Different Gauss can be expected at the drum surface.)

Parameters

CTB permanent magnetic drum separator

Model

cylinder size(diameter ×length)mm

cylinder surface magnetic field strength(mT)

Production capacity

Motor power(kw)

cylinder speed(r/min)

center pole

Scavenging district average value

High magnetic induction intensity

T/h

m3/h

CTB(N.S)-612

600×1200

145

170

10-20

32

2.2

40

CTB(N.S)-618

600×1800

145

170

15-30

48

2.2

40

CTB(N.S)-712

750×1200

120

155

180

15-30

48

3

35

CTB(N.S)-718

750×1800

120

155

180

20-45

72

3

35

CTB(N.S)-918

900×1800

148

165

190

25-55

90

4

28

CTB(N.S)-924

900×2400

148

165

190

35-70

110

4

28

CTB(N.S)-1018

1050×1800

148

165

190

40-75

120

5.5

22

CTB(N.S)-1021

1050×2100

148

165

190

45-88

140

5.5

22

CTB(N.S)-1021

1050×2100

160

240

280

45-88

140

5.5

22

CTB(N.S)-1024

1050×2400

148

165

190

52-100

160

5.5

22

CTB(N.S)-1024

1050×2400

160

240

280

52-100

160

5.5

22

CTB(N.S)-1030

1050×3000

160

240

280

65-125

200

7.5

22

CTB(N.S)-1218

1200×1800

148

165

190

47-90

140

5.5

19
