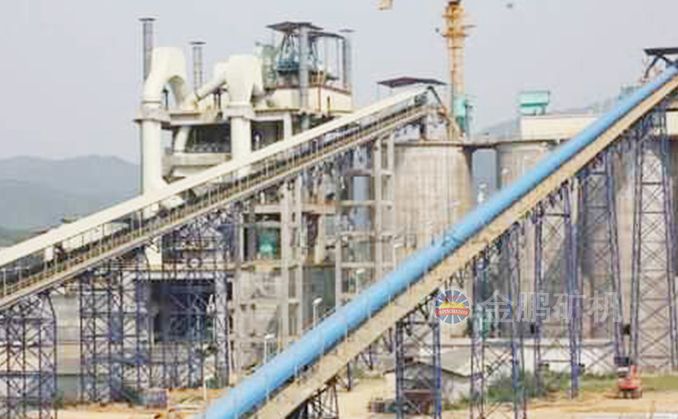

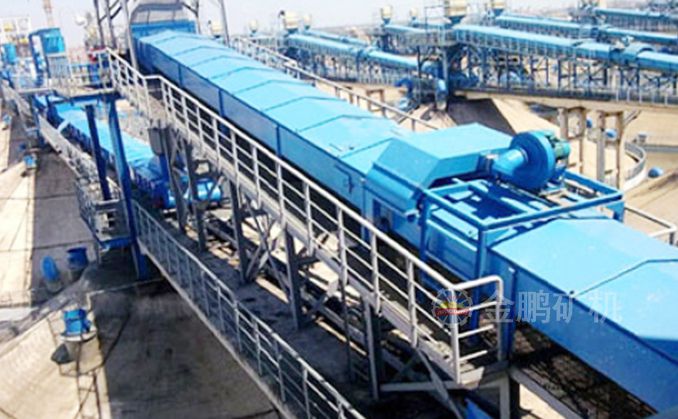

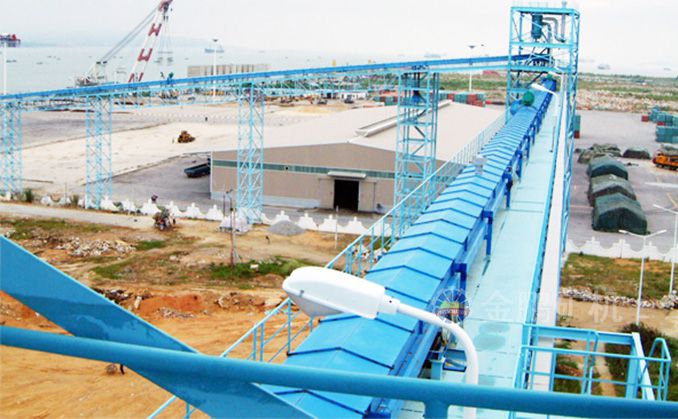

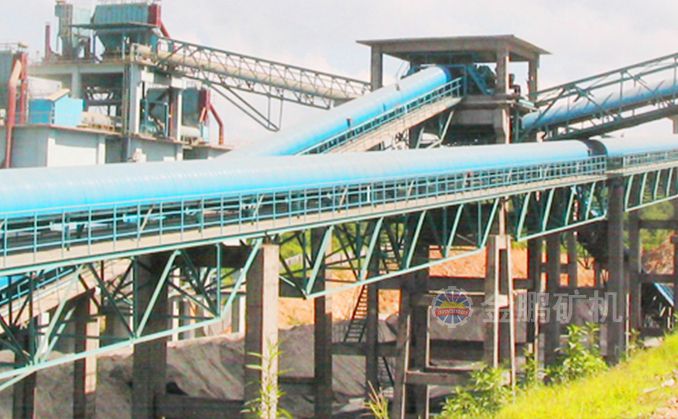

Air-cushion conveyor

Air-cushion conveyor is the new generation long distance conveying equipment,compared with ordinary belt conveyor,having characteristics of high efficiency, big delivered quantity,the belt is not easy deviation.This series conveyor is with simple structure,few damageable parts, saving maintenance expense above 50%, not only used for bulk and package materials conveying, but also use circular enclosed chamber to satisfy poisonous materials conveying of chemical and medicine.Widely used in metallurgy,coal,chemical,medicine,grain,feed,ports and wharves.

Delivery capacity : 80-1500m

Application material : Loading and delivery of soil, sand, coal, gravel, grain, powder and pieces of material

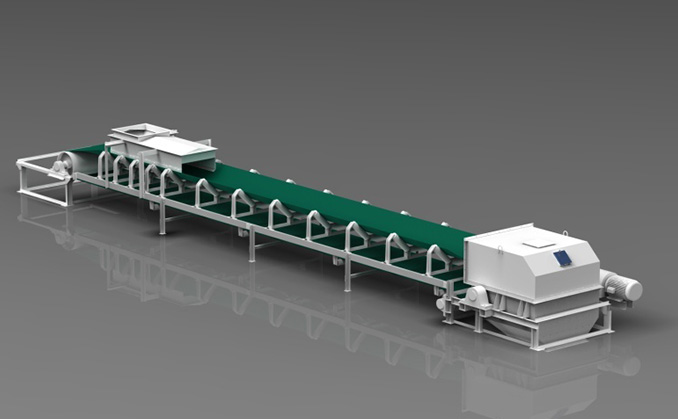

Structure

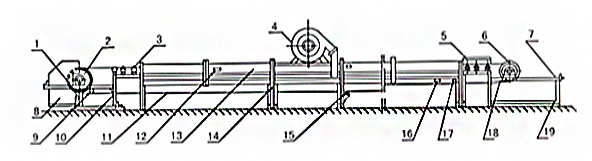

1. sweeper   2. transmission drum  3. Trough idler  4. draught fan  5. guide chute  6. Redirection roller  7. Screw tension device  8. head cover  9. rotary controller  10. Headstock  11. rubber belt  12. Observation hole door  13. enclosed fitting  14. Air box joint  15. Pinto on disk  16. Pullswitch  17. Tension protect  18. nonloaded cleanser  19. tailstock

The operation principles of Air-cushion belt conveyor:

air pressure from the blower goes into air tank and then through the air hole of air tank panel between the panel and conveyor belt (along with materials). Thus if choose the correct parameters of air-cushion, it will form air-cushion to hold up the belt and materials. When the belt acts at a set speed, it forms gas friction between air tank panel and lower surface of the belt so that to reduce resistance of the belt of drag machine and drag efficiency showing remarkable energy-saving effect. It is more than 25% of roller machine in energy saving.Then, because of low resistance and continuity of transport direction, conveyor belt moves stable without bumps, and that can increase its speed greatly and enhance efficiency more than one time. If deviation occurs, it will be in a limit scope of the belt deviation due to self-regulating of air-cushion pressure and the general amount of deviation is only half of the roller machine. As the amount of roller is reduced about 90%, it is correspondingly reduced more than 60% of work and costs.



Advantages

An ability to convey product at steeper inclines due to the low product agitation on a continuously supported air belt

Fewer moving parts result in less noise and maintenance requirements

The enclosed design reduces dust and noise and improves safety by providing a physical barrier between personnel and the loaded belt

Lower power consumption results in smaller drives, reduced power requirements and overall lighter weight conveyor construction

Parameters

Air-cushion conveyor

Model

Type

max length (m)

belt speed (m/s)

dip angle(°)

QJG-300

stationary type

80

0.8-4

0-25

QJY-300

mobile type

20

5-22

QJG-400

stationary type

100

0-25

QJY-400

mobile type

20

5-22

QJG-500

stationary type

120

0.8-5

0-25

QJY-500

mobile type

20

5-22

QJG- 650

stationary type

260

0-25

QJY- 650

mobile type

20

5-22

QJG- 800

stationary type

1000

1-5

0-25

QJY-800

mobile type

20

5-22

QJG -1000

stationary type

1000

0-25

QJG- 1200

mobile type

1-6.3

QJG-1400

stationary type

QJG- 1600

mobile type

1500
