Belt feeder

Belt feeder

Belt feeders are commonly used when material that is either stockpiled or loaded (at an uncontrolled rate) in a bin or hopper needs to be introduced into the system at a controlled feed rate.

Scope of Application : Cement plant, metallurgy, electric power departments, building materials, mining, road construction and other industries

Production capacity : 10~450t/h

Structure
Advantages
Parameters
相关案例
Browse other product

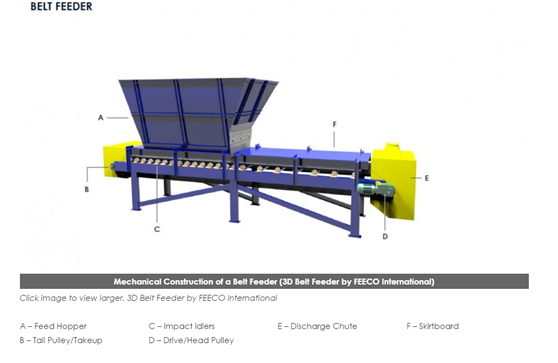

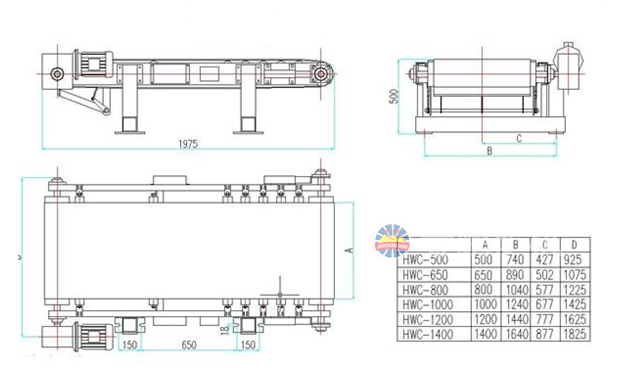

Structure

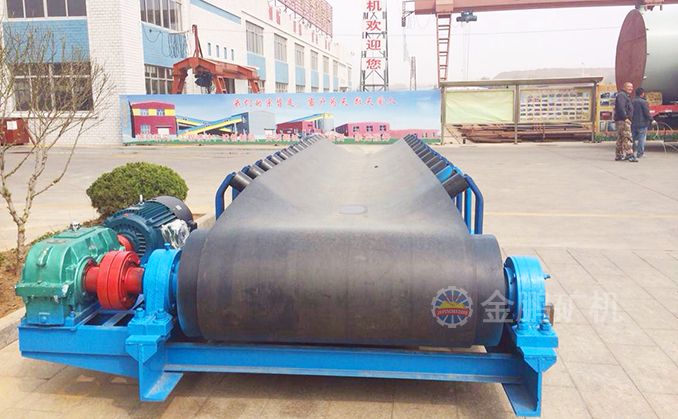

Open belt feeder

Belt feeders that are capable of handling nearly any material.

Belt feeders are commonly used when material that is either stockpiled or loaded (at an uncontrolled rate) in a bin or hopper needs to be introduced into the system at a controlled feed rate. Able to handle a variety of materials, belt feeders are reliable and useful in an endless amount of applications.

Comprised of a conveyor belt on rollers, belt feeders are available in a variety of sizes and capacities, based on the needs of your process and material.


Advantages

Heavy-duty construction;

Engineered hopper/feed bin;

Fully enclosed belt skirting;

Manual material leveling gate;

Variable speed.

Parameters

Belt feeder
Model	Belt width(mm)	Fore and aft wheel center distance（mm)	Fore and aft wheel diameter(mm)	Feeding capacity (t/h)	Feeding particle(mm)	Electromotor model	Electromotor power (kW)	Weight (kg)
Model	Belt width(mm)	Fore and aft wheel center distance（mm)	Fore and aft wheel diameter(mm)	Feeding capacity (t/h)	Feeding particle(mm)	Electromotor model	Electromotor power (kW)	Weight (kg)
500×1000	500	1000	219	10~100	0~50	YCT112-4B	0.75	266
500×1300		1300		10~100	0~50	YCT160-4A	2.2	503
500×1500		1500		10~100	0~50	Y2.2-1.0-50-32	2.2	552.7
500×2000		2000		10~100	0~50	Y2.2-1.0-50-32	2.2	609.4
500×2800		2800		10~100	0~50	YCT160-4A	2.2	670
500×3000		3000		10~100	0~50	YCT160-4A	2.2	697
500×4000		4000		10~100	0~50	YCT160-4A	2.2	736
650×1500	650	1500		10~100	0~50	YCT160-4A	2.2	610
650×2600	650	2600		10~100	0~50	YCT160-4A	2.2	636
650×4000	650	4000		10~100	0~50	YCT160-4A	2.2	893
800×2000	800	2000		15~150	0~80	YCT160-4A	2.2	721
800×3000	800	3000		15~150	0~80	YCT200-4B	7.5	857.3
800×4000	800	4000		15~150	0~80	YCT200-4B	7.5	1012
800×4500	800	4500	400	15~150	0~80	YCT160-4A	2.2	1200
1000×2000	1000	2000		200~450	0~80	YCT160-4B	3	1549
1000×2500		2500		200~450	0~100	YCT160-4B	3	2105
1000×6000		6000		200~450	0~100	YCT225-4A	11	5214
