Swaying feeder

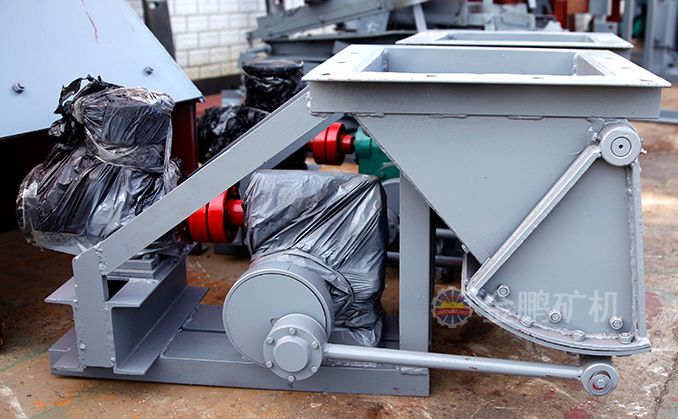

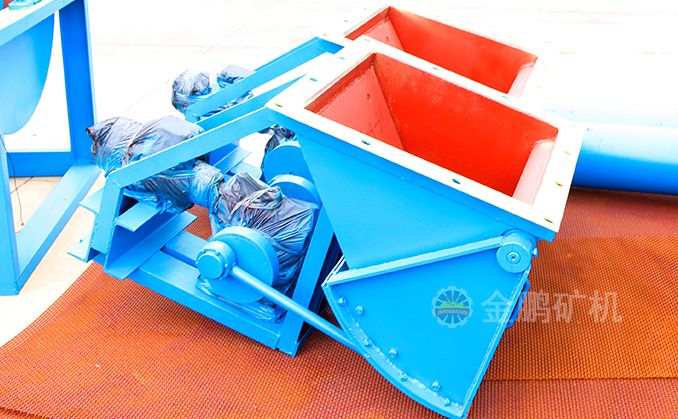

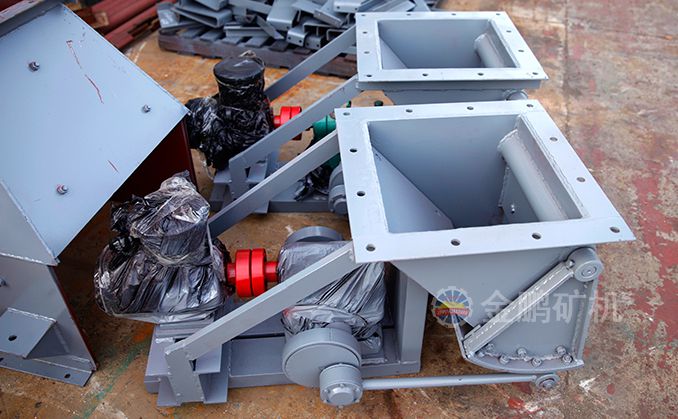

Structure

Product Structure

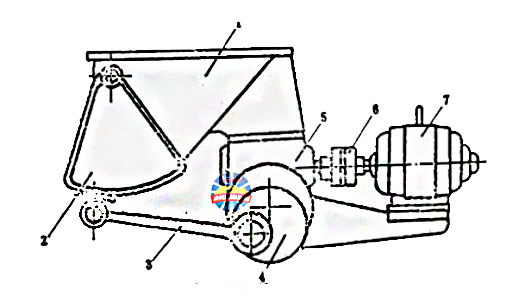

1.valve body  2.Valve door  3.Connecting rod  4.Eccentric wheel  5.Reduction gearbox  6.Coupling  7.Electromotor

Product working principle

This machine uses the principle of eccentric wheel mechanism, so that the jaw plate do reciprocating movement.The material will be evenly distributed. The driving force of the utility model is that the eccentric wheel is driven by a motor through a turbine speed reducer, and then the circular motion is changed into reciprocating motion after the connecting rod, and the reciprocating motion of the jaw plate is driven. When the jaw plate clockwise swing on it making the accumulation of material due to friction and driven with movement, to fill the body outwards by the space formed from the storage hopper in the pouring down part of the new material, when the jaw does anti clockwise movement, because the barrier material within the material cannot follow the jaw plate into the body inside, so it is in its under the push by the feeding tube or conveyor feeding funnel,all in all short periodic oscillation can make the jaw plate continuous material feeding.

Advantages

It is installed in the bottom of the storage tank or funnel to transport the particle size does not exceed 50mm, dry and not easy to agglomerate material, such as ore, etc.. However, it is not suitable for conveying powder material, which can easily lead to clogging, but also can cause the powder to fly and influence the cleaning of the workplace.

Parameters

Related case

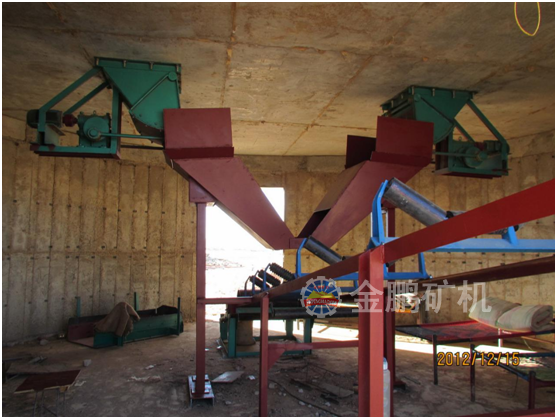

Sudan 500t/d CIL plant
