Home > Product > ZSW Vibrating feeder

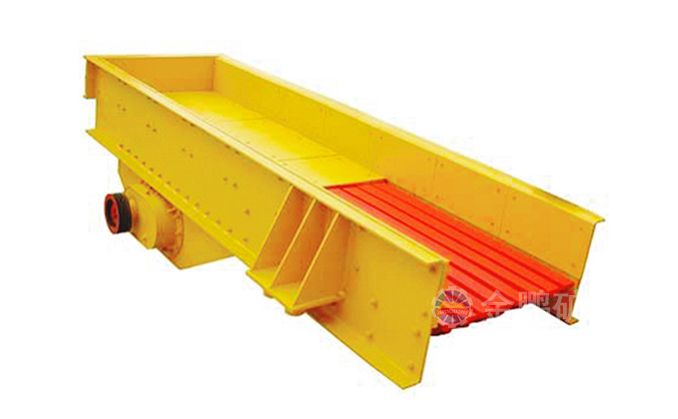

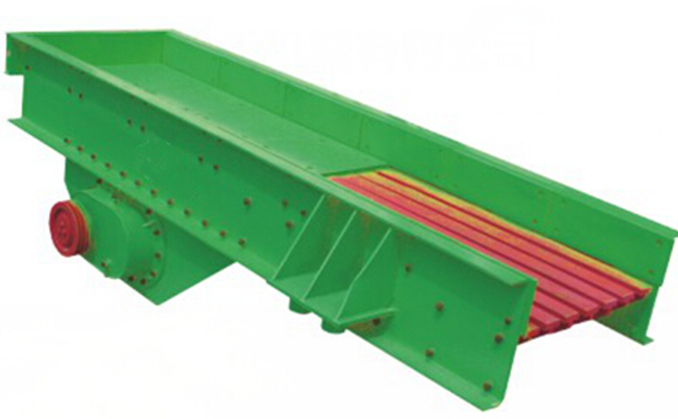

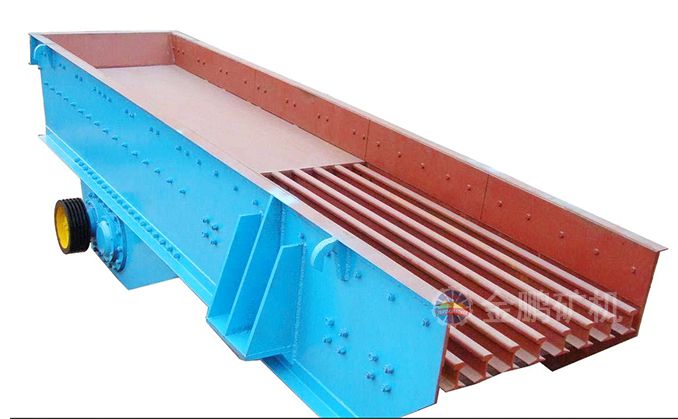

ZSW Vibrating feeder

This product is mainly used for coarse crushing machine before continuous, uniform feeding, at the same time it can be screened for fine material, so that the crusher capacity. The utility model has the advantages of simple structure, convenient installation, stable vibration, reliable operation, long service life, convenient maintenance and maintenance, easy realization of automatic control, etc..

Production capacity : 96~560t/h

Structure

Scope of application

widely used in metallurgy, mineral processing, building materials, chemical, abrasive and other industries in the crushing, screening equipment.

Applicable materials

used for conveying ferrous or non-ferrous metal ore, building materials; not suitable for conveying sticky wet material.

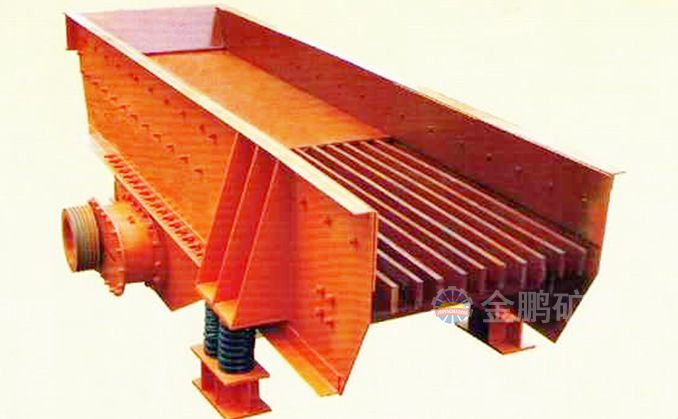

ZSW系列振动给料机-04 .jpg

Product working principle

The vibrator is composed of two the specific location of the eccentric shaft gear meshing, the assembly must be marked by the two gear meshing, driven by the motor, the two eccentric shaft rotation, resulting in huge linear vibration synthesis, so that the body for forced vibration in the spring, then vibration material as a driving force, slip and throwing motion in the trough, so that the material forward to achieve the purpose of feeding. When the material through the slot on the screen strip, the smaller material can fall through the sieve gap, not through the next crushing, the screening effect.

Advantages

1 smooth operation, reliable work, long service life, can be crushing machinery for continuous and uniform feeding, and screening of rough materials, widely used in mineral processing, building materials, silicate and chemical industry in the rubble, screening equipment.

2 simple structure, easy installation, stable vibration, reliable operation, long life, easy maintenance and repair, easy to achieve automatic control, etc.;

3 using a double shaft vibrator, vibrating, feeding and screening technology, improve equipment utilization, reduce the cost;

4 for the coarse crusher continuously and evenly feeding and screening of rough materials;

5 optional motor speed, adjust the frequency, thus changing the production, easy to control the feeding amount, without frequent start motor.

Parameters

ZSW Vibrating feeder

Model

Input Measure(mm)

Max particle(mm)

production capacity(t/h)

Eccentric wheel speed(r/min)

Dynamo power(kw)

Weight(kg)

ZSW-380×95

3800×950

500

96-160

800

11

4082

ZSW-420×110

4200×1100

580

120-240

800

15

4149

ZSW-490×960

4900×960

500

120-240

800

15

5351

ZSW-490×110

4900×1100

630

120-280

800

15

5352

ZSW-590×110

5900×1100

630

350-500

800

22

6130

ZSW-600×130

6000×1300

750

400-560

800

22

7800

Related case

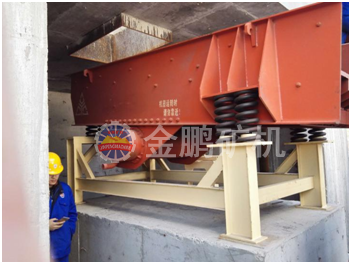

Qixia 300t/d copper lead and zinc project
