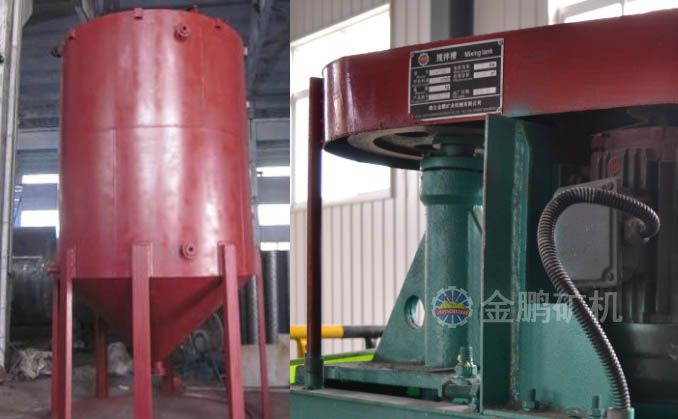

Conical bottom mixing tank

The stirring tank is composed of a vertical shaft part, a frame, a barrel body part, an overflow port, an electric motor, a motor seat, a motor seat, etc.. The rotation of the impeller is caused by the rotation of the impeller by the motor through a belt pulley and a triangular belt.<br/>Scope of application: mineral processing plants and other industrial sites<br/>Effective volume: 0.26-18.5m3

Effective volume : 0.26-18.5m3

Structure

Suitable material

concentration of not more than 30% mixing and ore density of not more than 3.5 of the pulp and flotation reagent.

product construction

The stirring tank is composed of a vertical shaft part, a frame, a barrel body part, an overflow port, an electric motor, a motor seat, a motor seat, etc..

Product working principle

The rotation of the impeller is caused by the rotation of the impeller by the motor through a belt pulley and a triangular belt.

Advantages

1 uniform mixing, high discharge capacity;

2 flow through the rotating impeller in the slurry tank, make the particle contact with chemicals, high production efficiency, energy saving, stable operation, convenient maintenance.

Parameters

Conical bottom mixing tank

Model

Effective volume

(m3)

Impeller

Motor

Weight

Speed(r.p.m)

Diameter(mm)

Model

Power(kw)

(kg)

BJZ-750×750

0.26

530

240

Y90L-4

1.5

240

BJZ-1000×1000

0.62

Y100L-6

680

BJZ-1500×1500

2.38

360

380

Y132S-6

3

1375

BJZ-2000×2000

5.6

233

550

Y160M-6

7.5

2000

BJZ-2500×2500

13.5

233

650

Y160L-6

11

2968

BJZ-3000×3000

18.5

200

800

Y225M-8

22

5210

New type Conical bottom mixing tank

Model

Effective volume(m3)

Impeller

Motor

Weight(kg)

Speed(r.p.m)

Diameter(mm)

Model

Power(kw)

RJZ——1000×1000

0.62

610

250

Y90L-4

1.5

750

RJZ——1250×1250

1.51

492

310

Y100L1-4

2.2

950

RJZ——1600×1600

2.8

332

400

Y132M1-6

4

1330

RJZ——2000×2000

5.6

305

500

Y160M-6

7.5

2600
