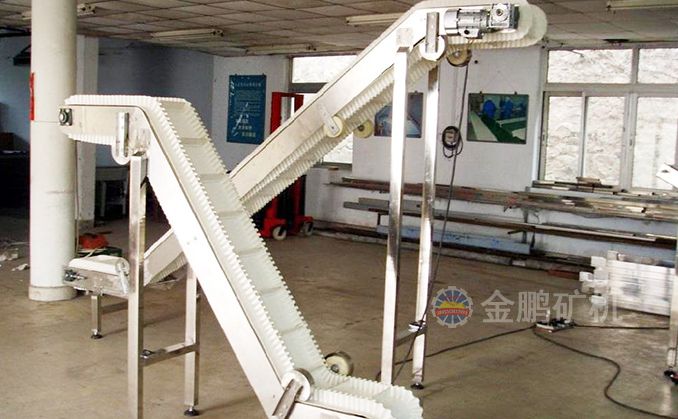

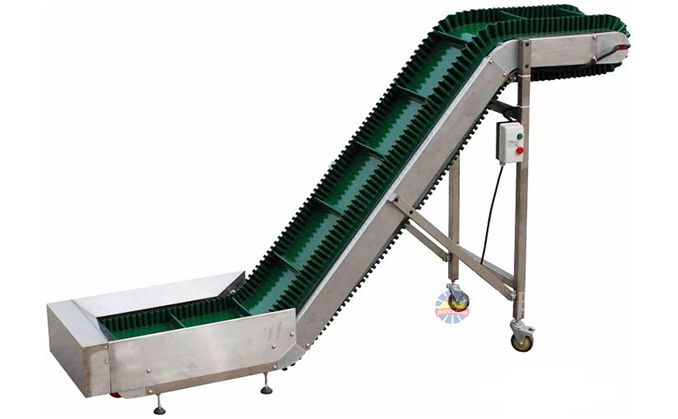

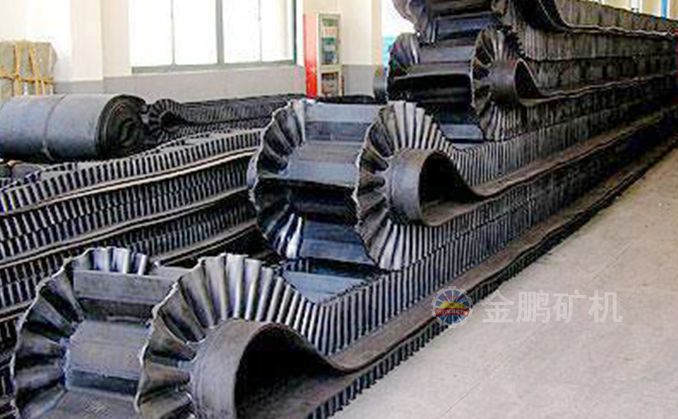

Corrugated sidewall angle belt conveyor

Structure
Advantages
Parameters
Browse other product

Structure

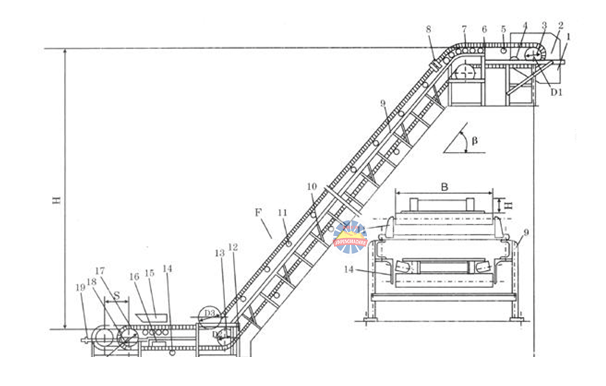

1.Discharging hopper 2. head cover 3. transmission drum 4. Pat sweeper 5. Guard band 6. convex section rack 7. pinch roller 8. Block roll 9. intermediate stand 10. intermediate stand outrigger 11. upper supporting roller 12. Concave section rack 14. lower supporting roller 15. guide chute 16. nonloaded cleanser 17. stern roll 18. tension device 19. tailstock

working principle

Belt conveyor systems are generally fairly similar in construction consisting of a metal frame with rollers at either end of a flat metal bed. The belt is looped around each of the rollers and when one of the rollers is powered (by an electrical motor) the belting slides across the solid metal frame bed, moving the product. In heavy use applications the beds which the belting is pulled over are replaced with rollers. The rollers allow weight to be conveyed as they reduce the amount of friction generated from the heavier loading on the belting. Belt conveyor can now be manufactured with curved sections which use tapered rollers and curved belting to convey products around a corner.

Advantages

1. Low noise, simple structure

2. Can be horizontal, tilt and vertical transportation

3. Strong transport capacity, high speed

4. High output.

Parameters

Various parameters of transmission capacity when belt speed is 1m/s

Baffle spacing

belt width（mm)		500							650							800
Guard height		80		120			160		80		120			160		120			160		200
(mm)		80		120			160		80		120			160		120			160		200
Baffle spacing(mm)		126	252	126	252	378	252	378	126	252	126	252	378	252	378	126	252	378	252	378	252	378	504
dip angle	30°	39	21	—	52	34	65	45	59	32	—	78	52	105	73	—	99	65	136	94	—	148	113
	40°	31	16	—	40	26	52	34	47	24	—	60	40	85	56	—	76	50	110	72	—	114	87
	50°	25	13	60	32	—	42	27	37	19	90	48	—	68	45	113	60	—	88	58	139	91	—
	60°	20	11	50	26	—	34	23	31	16	75	39	—	55	36	95	49	—	72	47	113	74	—
	70°	17	—	41	21	—	28	18	25	—	62	32	—	45	30	77	40	—	58	38	92	61	—
	90°	10	—	25	—	—	17	—	15	—	38	—	—	28	—	47	—	—	36	—	57	37	—
belt width（mm)						1000							1200
Guard height（mm)						160		200			240			160		200			240			300
252	378	252	378	504	252	378	504	252	378	252	378	504	252	378	504	336	504
dip angle	30°					186	129	—	207	159	—	283	229	223	154	—	250	191	—	342	278	410	350
	40°					150	99	—	160	122	—	231	176	180	118	—	193	147	—	280	213	352	276
	50°					120	79	195	128	—	—	185	141	144	95	235	154	—	—	224	170	290	221
	60°					98	64	159	105	—	229	151	—	117	77	191	126	—	278	183	—	237	180
	70°					80	52	130	85	—	187	123	—	96	63	156	103	—	226	149	—	193	147
	90°					49	—	80	52	—	115	76	—	59	—	96	63	—	139	91	—	118	90
belt width（mm)				1400										1600
Guard height（mm)				200			240			300		400		200			240			300		400
Baffle spacing(mm)				252	378	504	252	378	504	336	504	420	504	252	378	504	252	378	504	336	504	420	504
dip angle	30°				299	229	—	422	342	512	437	780	707	—	355	272	—	501	406	614	525	940	852
	40°			281	231	175	—	345	262	440	345	709	614	—	274	208	—	410	311	527	413	855	740
	40°			229	231	175	—	345	262	440	345	709	614	—	274	208	—	410	311	527	413	855	740
	50°			187	185	—	342	276	210	363	276	634	515	334	220	—	406	328	249	436	331	764	621
	60°			115	151		279	225		296	225	549	420	272	179		331	267		355	270	662	507
	70°				123			184		241	183	451	343	222	146			218		289	220	543	413
	90°				75	—	171	113	—	148	112	277	210	136	90	—	203	134	—	178	135	333	253

不同带宽、挡边高、倾角的许用最大粒度amax和最大带速vmax

belt width（mm)		500			650			800			1000
Guard height（mm)		80	120	160	80	120	160	120	160	200	160	200	240
dip angle	30°	2	2	2	1.6	2	2	2	2.5	2.5	2.5	2.5	2.5
	30°	100	120	120	100	140	160	140	180	200	180	250	280
	40°	2	2	2	1.6	2	2	2	2	2	2	2	2.5
	40°	100	120	120	100	140	160	140	180	200	180	250	280
	50°	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	2
	50°	80	120	140	80	120	140	120	140	180	140	180	220
	60°	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
	60°	80	120	140	80	120	140	120	140	180	140	180	220
	70°	1.3	1.3	1.3	1.3	1.3	1.3	1.6	1.6	1.6	1.6	1.6	1.6
	70°	50	60	100	50	60	100	120	100	140	100	140	180
	90°	1	1	1	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
	90°	50	60	80	50	60	80	60	80	100	80	100	140
belt width（mm)		1200				1400				1600
Guard height（mm)		160	200	240	300	200	240	300	400	200	240	300	400
dip angleR	30°	2.5	3.2	3.2	3.2	3.2	3.2	3.2	3.2	3.2	3.2	3.2	3.2
	30°	160	250	280	310	250	280	350	350	250	280	350	350
	40°	2.5	2.5	3.2	3.2	2.5	3.2	3.2	3.2	2.5	3.2	3.2	3.2
	40°	200	250	280	310	250	280	350	350	250	280	350	350
	50°	1.6	2	2.5	2.5	2	2.5	2.5	2.5	2	2.5	2.5	2.5
	50°	140	180	220	280	180	220	280	320	180	220	280	320
	60°	1.6	1.6	1.6	2	1.6	1.6	2	2	1.6	1.6	2	2
	60°	140	180	220	280	180	220	280	320	180	220	280	320
	70°	1.6	1.6	1.6	2	1.6	1.6	2	2	1.6	1.6	2	2
	70°	100	140	180	200	140	180	200	250	140	180	200	250
	90°	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
	90°	80	100	140	160	100	140	160	200	100	140	160	200

Note：The form online—vmax（m/s），The form offline—amax（mm）。

带速为1m/s时各种参数下的输送能力

带宽（mm)		500							650							800
挡边高		80		120			160		80		120			160		120			160		200
(mm)		80		120			160		80		120			160		120			160		200
隔板间距 (mm)		126	252	126	252	378	252	378	126	252	126	252	378	252	378	126	252	378	252	378	252	378	504
倾角	30°	39	21	—	52	34	65	45	59	32	—	78	52	105	73	—	99	65	136	94	—	148	113
	40°	31	16	—	40	26	52	34	47	24	—	60	40	85	56	—	76	50	110	72	—	114	87
	50°	25	13	60	32	—	42	27	37	19	90	48	—	68	45	113	60	—	88	58	139	91	—
	60°	20	11	50	26	—	34	23	31	16	75	39	—	55	36	95	49	—	72	47	113	74	—
	70°	17	—	41	21	—	28	18	25	—	62	32	—	45	30	77	40	—	58	38	92	61	—
	90°	10	—	25	—	—	17	—	15	—	38	—	—	28	—	47	—	—	36	—	57	37	—
带宽（mm)						1000							1200
挡边高（mm)						160		200			240			160		200			240			300
隔板间距(mm)						252	378	252	378	504	252	378	504	252	378	252	378	504	252	378	504	336	504
倾角	30°					186	129	—	207	159	—	283	229	223	154	—	250	191	—	342	278	410	350
	40°					150	99	—	160	122	—	231	176	180	118	—	193	147	—	280	213	352	276
	50°					120	79	195	128	—	—	185	141	144	95	235	154	—	—	224	170	290	221
	60°					98	64	159	105	—	229	151	—	117	77	191	126	—	278	183	—	237	180
	70°					80	52	130	85	—	187	123	—	96	63	156	103	—	226	149	—	193	147
	90°					49	—	80	52	—	115	76	—	59	—	96	63	—	139	91	—	118	90
带宽（mm)				1400										1600
挡边高（mm)				200			240			300		400		200			240			300		400
隔板间距(mm)				252	378	504	252	378	504	336	504	420	504	252	378	504	252	378	504	336	504	420	504
倾角	30°				299	229	—	422	342	512	437	780	707	—	355	272	—	501	406	614	525	940	852
	40°			281	231	175	—	345	262	440	345	709	614	—	274	208	—	410	311	527	413	855	740
	40°			229	231	175	—	345	262	440	345	709	614	—	274	208	—	410	311	527	413	855	740
	50°			187	185	—	342	276	210	363	276	634	515	334	220	—	406	328	249	436	331	764	621
	60°			115	151		279	225		296	225	549	420	272	179		331	267		355	270	662	507
	70°				123			184		241	183	451	343	222	146			218		289	220	543	413
	90°				75	—	171	113	—	148	112	277	210	136	90	—	203	134	—	178	135	333	253

不同带宽、挡边高、倾角的许用最大粒度amax和最大带速vmax

带宽（mm)		500			650			800			1000
挡边高（mm)		80	120	160	80	120	160	120	160	200	160	200	240
倾角	30°	2	2	2	1.6	2	2	2	2.5	2.5	2.5	2.5	2.5
	30°	100	120	120	100	140	160	140	180	200	180	250	280
	40°	2	2	2	1.6	2	2	2	2	2	2	2	2.5
	40°	100	120	120	100	140	160	140	180	200	180	250	280
	50°	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	2
	50°	80	120	140	80	120	140	120	140	180	140	180	220
	60°	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
	60°	80	120	140	80	120	140	120	140	180	140	180	220
	70°	1.3	1.3	1.3	1.3	1.3	1.3	1.6	1.6	1.6	1.6	1.6	1.6
	70°	50	60	100	50	60	100	120	100	140	100	140	180
	90°	1	1	1	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
	90°	50	60	80	50	60	80	60	80	100	80	100	140
带宽（mm)		1200				1400				1600
挡边高（mm)		160	200	240	300	200	240	300	400	200	240	300	400
倾角R	30°	2.5	3.2	3.2	3.2	3.2	3.2	3.2	3.2	3.2	3.2	3.2	3.2
	30°	160	250	280	310	250	280	350	350	250	280	350	350
	40°	2.5	2.5	3.2	3.2	2.5	3.2	3.2	3.2	2.5	3.2	3.2	3.2
	40°	200	250	280	310	250	280	350	350	250	280	350	350
	50°	1.6	2	2.5	2.5	2	2.5	2.5	2.5	2	2.5	2.5	2.5
	50°	140	180	220	280	180	220	280	320	180	220	280	320
	60°	1.6	1.6	1.6	2	1.6	1.6	2	2	1.6	1.6	2	2
	60°	140	180	220	280	180	220	280	320	180	220	280	320
	70°	1.6	1.6	1.6	2	1.6	1.6	2	2	1.6	1.6	2	2
	70°	100	140	180	200	140	180	200	250	140	180	200	250
	90°	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
	90°	80	100	140	160	100	140	160	200	100	140	160	200

注：表格上线为vmax（m/s），下线为amax（mm）。
