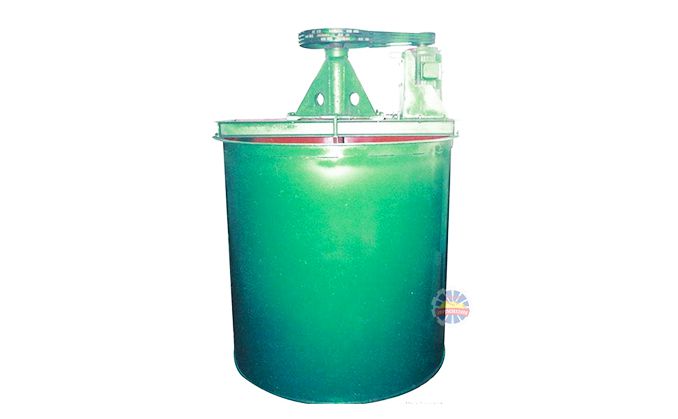

Flocculant mixing tank

Flocculant mixing tank is a kind of a stirring machine for high efficiency thickener designed for adding flocculant, the impeller is specially designed. The principle of equipment is through the flow driven by the rotation of the impeller in the slurry tank, the liquid can be fully mixed flocculant in the thickener concentration system operation mixing and storage purposes.

Effective volume : 0.58-5.46 m³

Scope : flocculant stirring machine

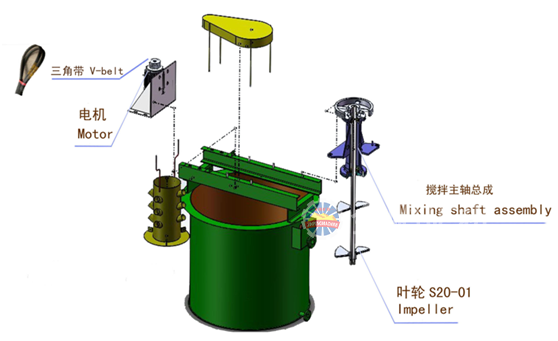

Structure


Product working principle

Pulp flow through the rotating impeller in the slurry tank, the liquid medicine mixing fully.

Advantages

1 for the storage of mixed liquid with a stirring flocculant;

2 do not agglomerate in the process of mixing, no precipitation, etc.;

3 axis and impeller is a stainless steel material, of course, can also this be customized according to customer requirements.

Parameters

Flocculant mixing tank

ModelSpeed(r/min)

Effective volumem(m³)

Impeller

MotorWeight(KG)

r/min

diameter

ModelPower(KW)

XBJ——1000×1750

0.58


310




XBJ——1500×1500

2.2

320

400

Y132S-6

3

1260

XBJ——2000×2000

5.46

320

550

Y132M2-6

5.5

2000
