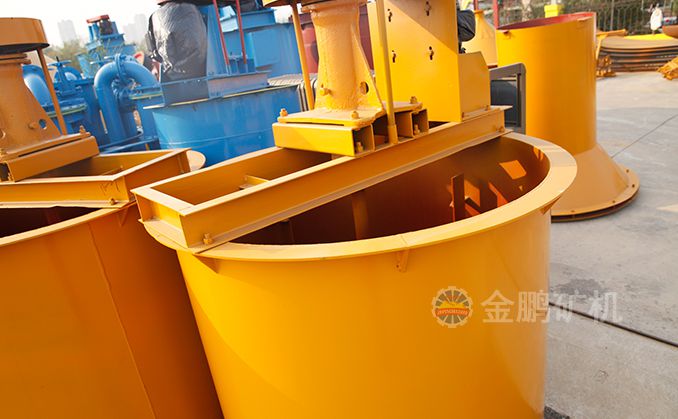

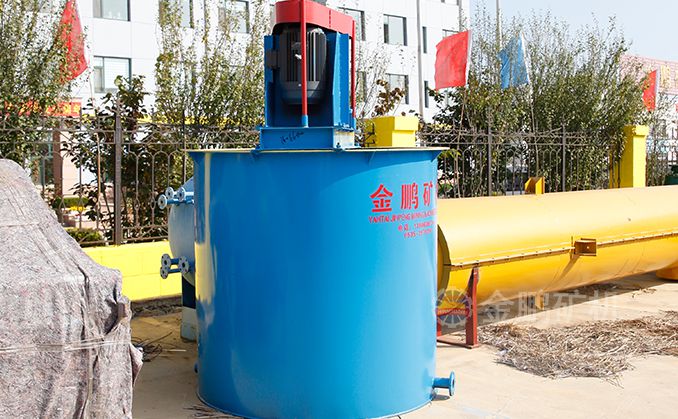

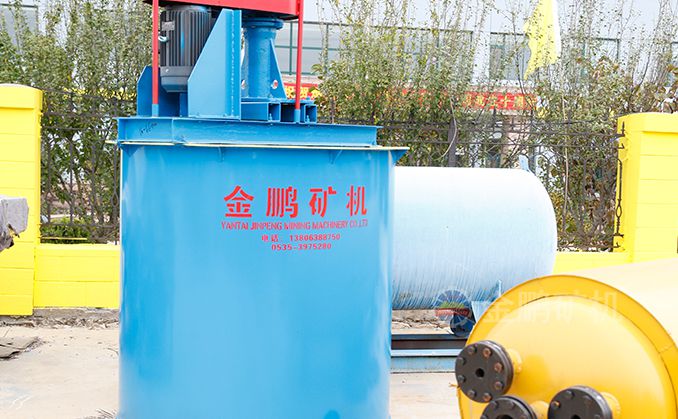

High efficiency mixing tank

Efficient mixing tank is a kind of slurry mixing equipment can make do motion cycle on the inside of the tank. The company has made a great improvement on the original process, the use of the fan impeller exert downward pressure on the pulp, the pulp can be up and down along the guide device of the circular motion, is a fusion of medicament and full of pulp, on the basis of the original greatly improve work efficiency, reduce the cost.

Effective volume : 0.58-37m fand

Structure

Scope of application

mining, chemical building materials, cyanide chemical plant, sewage treatment plant, coal preparation plant and other industrial sectors

Applicable material

concentration of not more than 30% mixing and ore density of not more than 3.5 of the pulp and flotation reagent

product mix

The stirring tank is composed of a vertical shaft part, a frame, a barrel body part, an overflow port, an electric motor, a motor seat and a motor seat.

Product working principle

Efficient mixing tank is a kind slurry mixing equipment which can make motion cycle on the inside of the tank. Through the rotation of the impeller it is composed of a motor through a belt pulley and a triangular belt and the rotation of the impeller and makes the chemical pulp mixing evenly.

The company has made a great improvement on the original process, the use of the fan impeller exert downward pressure on the pulp, the pulp can be up and down along the guide device of the circular motion,and is a fusion of medicament and full of pulp, on the basis of the original greatly improving work efficiency and reducing the cost.

Advantages

What are some of the advantages of the mixing tank?

1, the impeller diameter increased, the line speed increased, the drug and pulp mixing ability improved.

2, the impeller is shaped of umbrella impeller,improving drugs and pulp mixing ability.

3, a guide groove in the guide impeller fluid, fluid, enhance mixing ability, negative pressure generated by the operation of the pulp, and guide fluid make the negative compress in a limited space, thus speeding up the pumping capacity for drugs and pulp, the pulp and drug circulation capacity further strengthened.

4, there is an umbrella impeller downward pressure in the process of operation, and thus accelerate the pumping capacity of slurry, the slurry circulation ability has been strengthened and drug.

5, the lower part of the jet diversion rooate, drugs and pulp into the circulation capacity further strengthened. Drug and pulp fully halved and circulation, make the mineral surface full agent, is conducive to flotation.

Parameters

High efficiency mixing tank

Model

Effective volume(m3)

Impeller

Motor

Weight(kg)

speed(r/min)

diamete(mm)

Model

Power(kw)

GBJ-1000×1000

0.58

530

240

Y112M-6

2.2

1548

GBJ-1250×1250

1.4

350

240

Y100L2-4

3

1808

GBJ-1500×1500

2.2

320

420

Y132M2-6

5.5

2207

GBJ-2000×2000

4.4

240

560

Y160L-6

11

3150

GBJ-2500×2500

11.2

271

560

Y180L-6

15

3943

GBJ-3000×3000

19.1

240

700

Y225S-8

18.5

4613

GBJ-4000×4000

37

180

900

Y280S-6

45

9249
