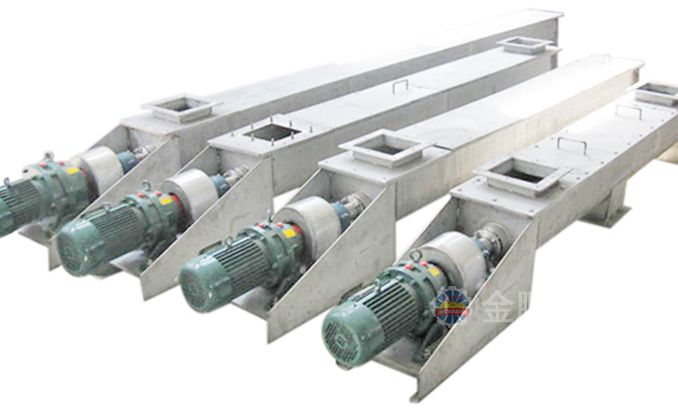

LS Screw conveyer

Screw conveyor is the updated model of the GX type screw conveyor. The whole conveyor is reliable, durable, adaptable, easy to install. It is suitable for conveying the powder, granular, and block materials (temperature <200℃),such as coal powder, coal ash, argil, sand, cement, carbamide etc. The screw conveyor is not only used for the concrete batching plant, bituminous concrete batching, but also for the chemical, building, food, metallurgy and so on.

Application material : Granular material, powder material and a small piece of material

Delivery capacity : 0.45-416.4 m³/h

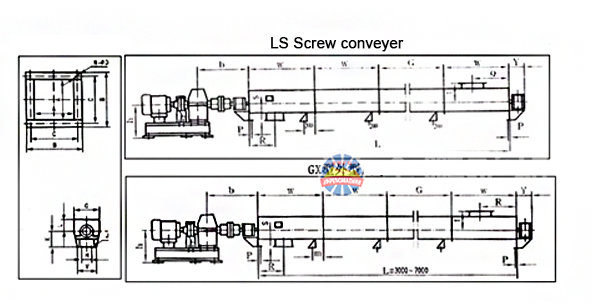

Structure


The head and tail bearing was moved outside hard surface, the hanging bearing adopt sliding bearing, with dust-proof seals, bearing commonly used powder metallurgy, transport cement used blankets bearing, shaft and screw shaft adopt slider connection, it need not move the drive when helix demolition, remove bearings without moving spiral hanging, you can not remove the cover to lubricating bearing, the machine reliability, long life, adaptable, easy installation and maintenance.

LS型螺旋输送机-03 .jpg

Advantages

Feature of screw conveyor is by: Simple, safe and convenient operation, small size cross-section, good sealing, reliable, easy to intermediate loading and unloading, conveying direction can reverse, while the opposite may also be transported in both directions. During transportation of materials can also be stirring, mixing, heating and cooling operations. Gate can be adjusted by the material handling flow. Large power units. Use to maintain the tightness of the trough and the screw with the proper clearance between the trough.

Parameters


LS Screw conveyer
Model and Specificationscrew diameter(mm)screw pitch (mm)speed(r/min)Standard volume throughput
Standard volume throughput
Standard volume throughput
Standard volume throughput
Iv(m3/h)speed(r/min)Iv(m3/h)speed(r/min)Iv(m3/h)speed(r/min)Iv(m3/h)
0.450.330.15n0.450.330.15n0.450.330.15n0.450.330.15

    minitype
LS10010010014032.211122.41.70.8901.91.40.6711.51.10.5
LS1251251251255.23.81.71004.131.4803.32.41.1632.61.90.9
LS1601601601129.77.13.2907.85.72.6716.24.52.1564.93.61.6
LS20020020010016.912.45.68013.59.94.56310.77.83.6508.56.22.8
middle-sizedLS2502502509029.721.89.97123.517.27.85618.513.66.24514.910.95
LS3153153158052.938.817.66341.630.513.95033.124.2114026.419.48.8
LS4004003557185.362.528.45667.349.322.44554.139.6183643.231.714.4

large-size
LS50050040063133.297.744.450105.877.635.34084.66228.23267.749.622.6
LS63063045050188.9138.56340151.1110.850.432120.988.640.32594.469.331.5
LS80080050040270.7198.590.232216.6158.872.225169.2124.156.420135.499.345.1
outsizeLS1000100056032379277.9126.325296.1217.198.720236.9173.77916189.513963.2
LS1250125063025520.5381.7173.520416.4305.4138.816333.1244.311113270.7198.590.2
Blocks of materialgrinding cut sex of materialFilling coefficientKA
powderywithout/half0.35-0.400.041575
powderywith
0.25-0.300.056535
Small blocka<60mmwithout/half0.25-0.300.053745
Small block a<60mmwith0.20-0.250.064525
