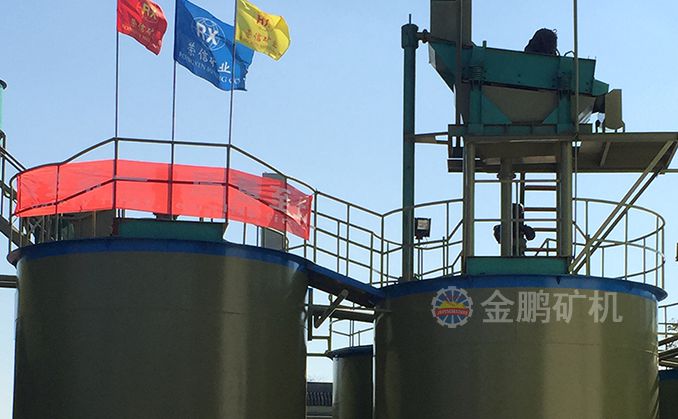

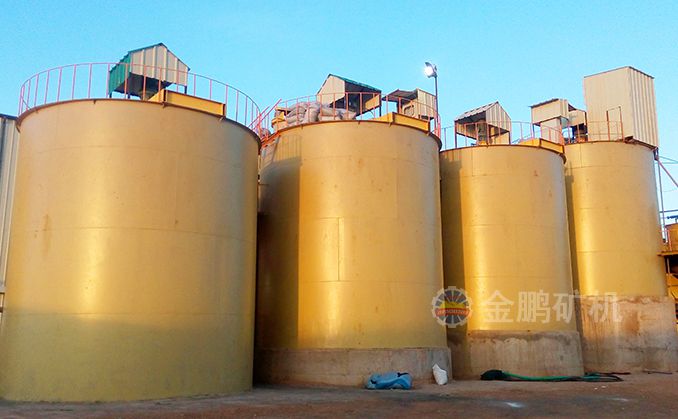

Lifting mixing tank

The stirring tank is composed of a vertical shaft part, a frame, a barrel body part, an overflow port, an electric motor, a motor seat, a motor seat, etc.. The rotation of the impeller is caused by the rotation of the impeller by the motor through a belt pulley and a triangular belt.

Effective volume : 0.9-20.5 m³

Structure

Scope of application

mineral processing plants and other industrial sites

Suitable material

concentration of not more than 30% mixing and ore density of not more than 3.5 of the pulp and flotation reagent

Product construction

The stirring tank is composed of a vertical shaft part, a frame, a barrel body part, an overflow port, an electric motor, a motor seat, a motor seat, etc..

Product working principle

The rotation of the impeller is caused by the rotation of the impeller by the motor through a belt pulley and a triangular belt.

Advantages

1 uniform mixing, high discharge capacity;

2 flow through the rotating impeller in the slurry tank, make the particle contact with chemicals, high production efficiency, energy saving, stable operation, convenient maintenance.

Parameters

Lifting mixing tank

Model

Deep

Effective volume(m3)

Impeller

Lifting height

Motor

Weight(kg)

speed(r/min)

diameter(mm)

Model

Power(kw)

TBJ-1000

1439

0.9

500

350

980

Y132M2-6

5.5

765

TBJ-1250

1682

1.4

460

350

1220

Y132M2-6

5.5

975

TBJ-1500

1850

2.8

464

450

1470

Y160L-6

11

1110

TBJ-2000

2000

5.8

312

550

1570

Y180L-6

15

3122

TBJ-2500

2500

11.5

310

600

2070

Y225M-8

22

3760

TBJ-3150

3150

20.5

258

750

2300

Y250M-6

37

6339
