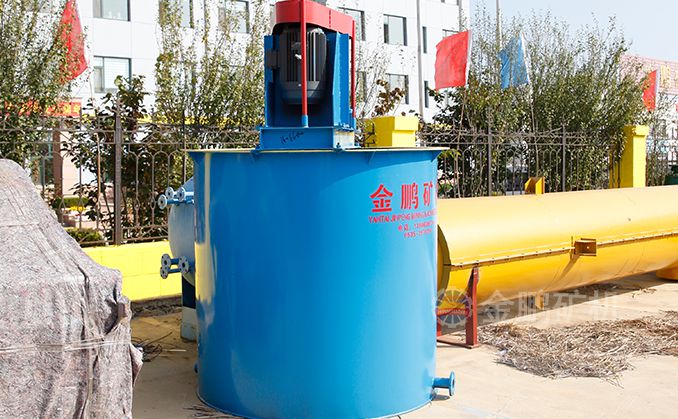

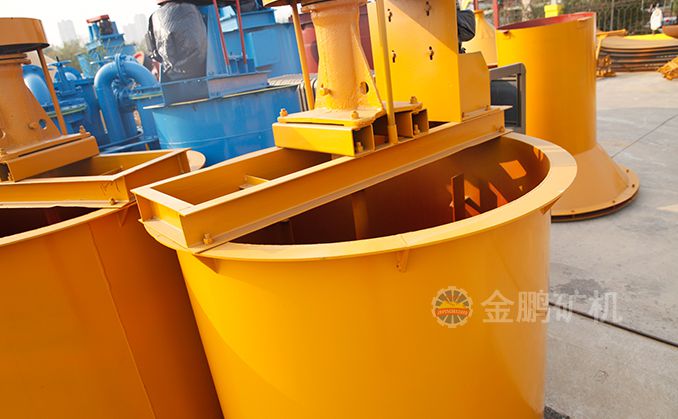

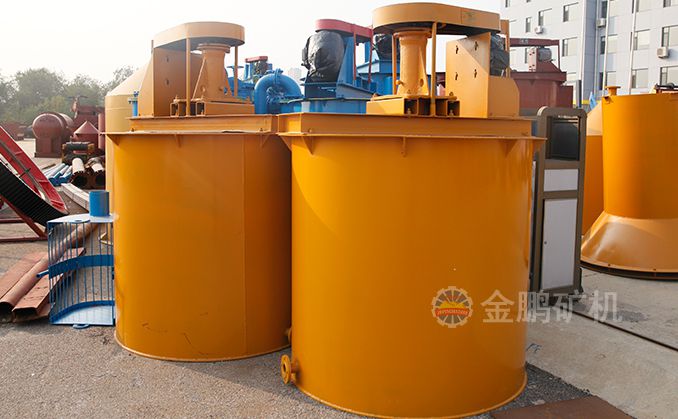

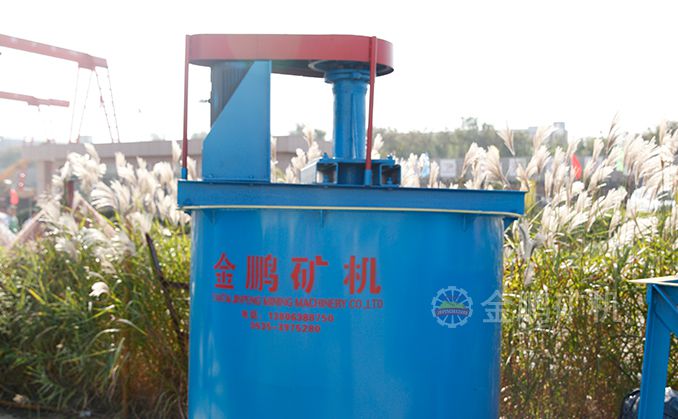

Pulp mixing tank

It is mainly used in the front of the flotation machine for the pulp mixing, the main function is to make the pulp and medicament can fully contact and blending, in preparation for the flotation operation, it can also be used in alumina production for desilication cutting, stripping tank, washing tank, also can be used in the chemical industry, building materials industry ,cyanide plant, sewage treatment plants and other industrial sectors.

Effective volume : 0.25 to 11.2 m³

Structure

Applicable scope

mining, chemical industry, building materials, slurry mixing and cyanide plant, sewage treatment plant
Applicable material

density less than 30% and ore concentration is not more than 3.5% of the pulp ,and mixing of flotation reagents

Product Structure

Mixing tank by the spindle assembly, shelves, tub, circular barrel, motor, motor base.The rotation of the impeller is passed by motor pulley, triangle and get the rotation of the impeller causes the pulp and medicament.

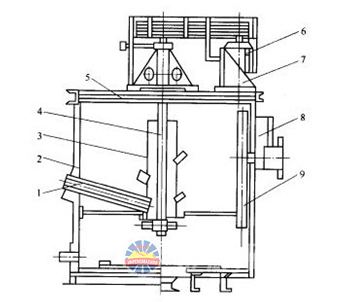

1.Feed tube 2.Tank body 3.Circular barrel 4.Transmission shaft 5.Crossbeam 6.Electromotor 7.Electromotor bracket

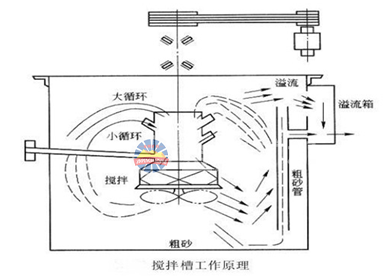

operating principle

With the rotary of impeller,the pulp and chemical mixed together,the even suspension will be discharged by the overflow point.



Advantages

1.The impeller diameter is big, pulp and chemical mixing ability is strong

2.The impeller speed is big, pulp and chemical mixing ability is strong

3.Mixing ability enhancement, make pulp and chemical circulation ability also strengthened

Parameters

General Pulp mixing tank

Model

Effective volume

Impeller speed

Impeller diameter

Electromotor

Weight

(m3)

(r.p.m)

(mm)

Model

Power(kw)

(kg)

BJ-500×500

0.074

525

240

Y802-4

0.75

162

BJ-750×750

0.25

530

240

Y100L-6

1.5

305

BJ-1000×1000

0.58

513

230

Y90L-4

1.5

680

BJ-1250×1250

1.4

401

380

Y100L1-4

2.2

1008

BJ-1500×1500

2.1

332

380

Y132M1-6

4

1310

BJ-1600×1600

2.56

332

380

Y132M2-6

5.5

1630

BJ-2000×2000

4.4

305

550

Y160M-6

7.5

1900

BJ-2000×2500

5.97

285

630

Y160M-6

7.5

2360

BJ-2500×2500

9.2

285

630

Y160L-6

11

2766

BJ-3000×3000

17.5

200

800

Y225M-8

22

4808

BJ-3500×3500

29.5

190

800

Y225M-8

22

5580

BJ-3550×4000

35

194

850

Y250M-8

30

5939

New type Pulp mixing tank

Model

Effective volume

Impeller speed

Impeller diameter

Electromotor

Weight

(m3)

(r.p.m)

(mm)

Model

Power(kw)

(kg)

RJ-1000×1000

0.58

610

250

Y90L-4

1.5

532

RJ-1250×1250

1.4

492

310

Y100L1-4

2.2

700

RJ-1600×1600

2.67

332

400

Y132M1-6

4

1170

RJ-2000×2000

5.46

305

500

Y160M-6

7.5

2205

RJ-2500×2500

11.2

244

625

Y160L-6

11

3500
