Reagent mixing tank

Reagent mixing tank is composed of vertical shaft, rack, tank, small pulley, motor, motor seat, safety hood. The rotation of the impeller is driven by a motor through a belt pulley and a triangular belt, and the rotation of the impeller that makes the chemical pulp mixing evenly.

Effective volume : 0.0074-46m³

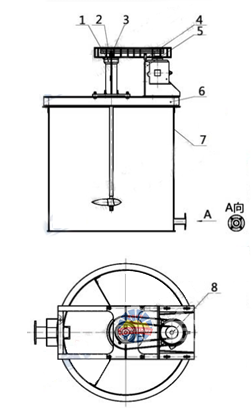

Structure

Scope of application

Reagent mixing tank for the preparation of a variety of Reagent before flotation operations

Applicable material

mixing pulp and flotation reagent concentration of not more than 30% strength and less than 3.5% of the mineral density

product construction


Reagent mixing tank composed of vertical shaft, rack, tank, small pulley, motor, motor seat, safety hood. The rotation of the impeller is driven by a motor through a belt pulley and a triangular belt, and the rotation of the impeller that makes the chemical pulp mixing evenly.

Working principle

The mixing method of flat bottom barrel shaped radial circulation spiral impeller is used for mixing operation. When stirred tank work motor drive V-belt device driving the rotation of the impeller, impeller rotational speed by reagent in mixing, mixing pulp and medicament in the next stage to make necessary preparations.

Advantages

Chemical mixing tank is a kind of application in the chemical mixing vessel equipment, the company made a great adjustment on the basis of the original, the effective volume in general 0.0074-46m3, has high production efficiency, energy saving, stable operation, convenient maintenance and other advantages, at the same time, we are still on the impeller stirred tank outsourcing corrosion resistant rubber according to corrosion agents, have very good protection effect, improve the service life of the tank, saving cost for customers.

Parameters

Reagent mixing tank

Model

Effective volume(m³)

Impeller

Motor

Weight(KG)

speed(r/min)

diameter(mm)

Model

Power(KW)

BJW-500×500

0.074

525

240

Y802-4

0.75

142

BJW-500×600

0.094

525

240

Y802-4

0.75

210

BJW-750×750

0.25

530

240

Y100L-6

1.5

280

BJW-1000×1000

0.58

513

230

Y90L-4

1.5

420

BJW-1250×1250

1.4

401

380

Y100L1-4

2.2

973

BJW-1500×1500

2.2

320

380

Y132M1-6

4

1265

BJW- 1600×1600

2.56

332

380

Y132M2-6

5.5

1530

BJW-2000×2000

5.46

233

550

Y132M2-6

5.5

1850

BJW- 2500×2500

12.26

285

630

Y160L-6

11

2681

BJW-3000×3000

17.5

200

800

Y225S-8

18.5

4620

BJW- 3500×3500

29.5

190

800

Y225M-8

22

5380

BJW- 4000×4000

46

200

1000

Y250M-8

30

5380

New type Reagent mixing tank

Model

Effective volume(m³)

Impeller

Motor

Weight(KG)

speed(r/min)

diameter(mm)

Model

Power(KW)

RJW——1000×1000

0.58

535

250

Y90S-4

1.1

489

RJW——1250×1250

1.4

492

310

Y100L1-4

2.2

610

RJW——1600×1600

2.67

332

400

Y112M-6

2.2

1100

RJW——2000×2000

5.46

267

500

Y132M1-6

4

2030
