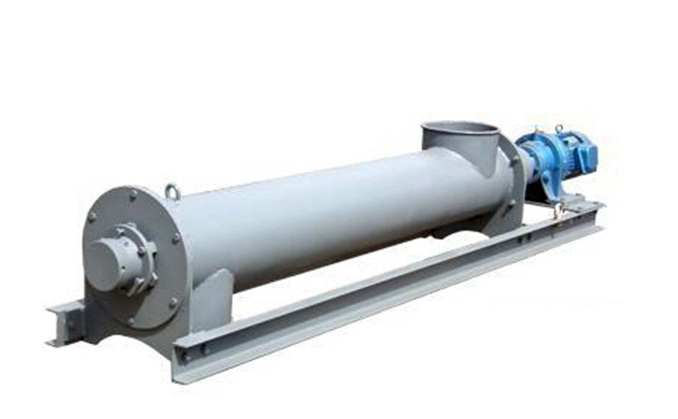

Single-pipe spiral feeder

Single pipe and screw feeder is used to convey dry and powder material continuously, such as raw material, coal powder, and cement etc. powder to convey in short distance. It is used to feed material at the bottom silo.

Scope of Application : Mining, mill plant, chemical, cement, building materials and other departments

Application material : From storage bin to crushing, transport machinery, such as uniform continuous feeding

Production capacity : 6-50m³/h

Introduction

Single pipe and screw feeder is used to convey dry and powder material continuously, such as raw material, coal powder, and cement etc. powder to convey in short distance. It is used to feed material at the bottom silo.

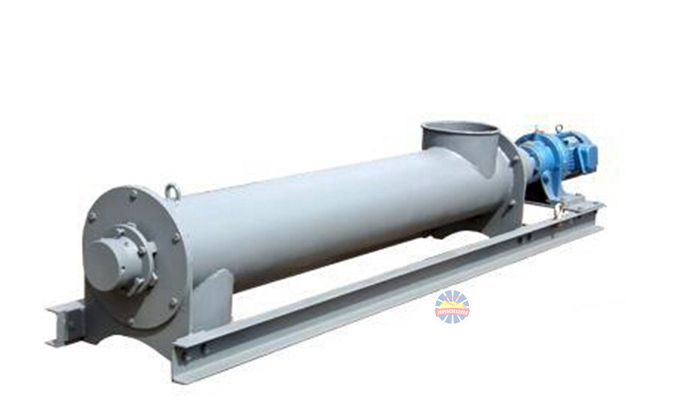

单螺旋给料机 -02.jpg


Features

Material is not easy to block in square inlet. Thus it can guarantee high filling rate of powder material in conveying pipeline. Different screw impeller of inlet opening can mix the material evenly and it will be easy to feed. The structure of the whole screw impeller complies with the conveying regulation of material receiving, providing and steady flow. Thus the even filling rate in pipeline is guaranteed. The products of this series has I-fixed speed, II-manual and no grade tunning speed according to the driving way. All are used high efficiency and high ratio cycloid pin wheel reducer. Type II is matched with new electronmagnetic tunning speed motor. It is characterized by wide tunning speed range, stable driving, low noise, and tight structure and it is easy to adjust material flow and meets different manufacture requests.

Parameters

Single pipe spiral feeder

Model

Spiral diameter(mm)

Spiral length(mm)

Spiral Speed (r/min)

Feeding capacity(m³/h)

Electromotor

Weight(kg)

Note

Model

power(kw)

250

250

1200

34

6

XWD2.2-4-29

2.2

459

Single-spiral

300

300

28000

59

21.3

XWD7-23-11

11

3329

350

350

1500

43

30

XWD5-23-5.5

5.5

629

350

350

3000

43

30

XWD5-23-5.5

5.5

881

350

350

4000

43

45

XWD5-23-5.5

5.5

1316

Double-spiral

400

400

3000

43

50

XWD5-23-5.5

5.5

1439
