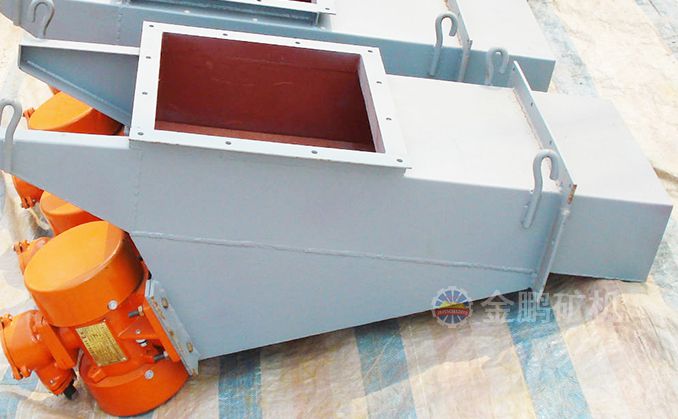

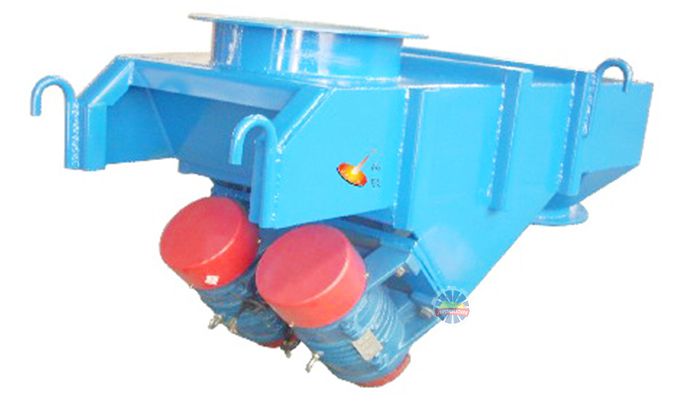

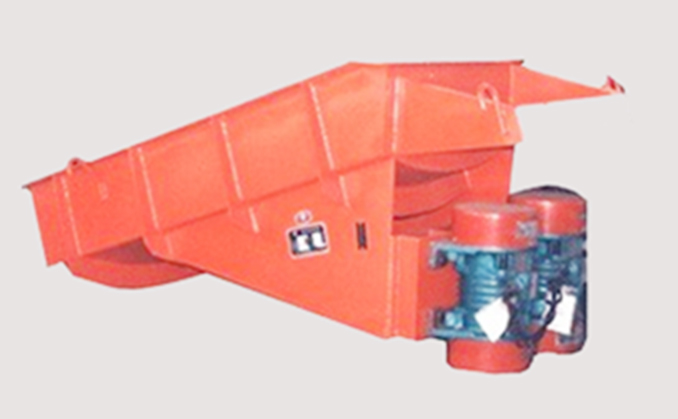

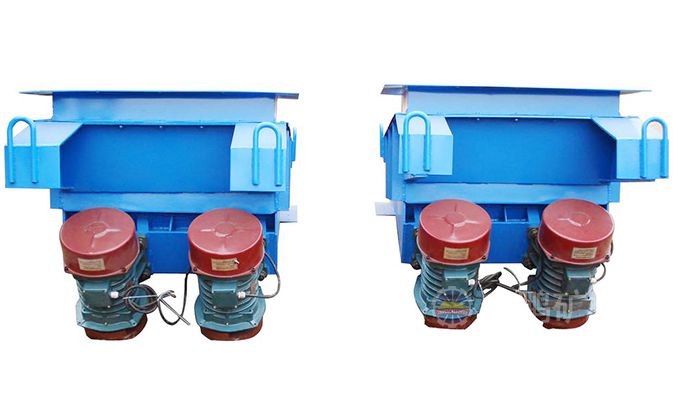

Y47 Electromagnetic Vibrating feeder

An electromagnetic vibrating feeder is a very useful device to handle feeding operations irrespective of the physical state like hot cold damp, granular dusty etc. The electromagnetic feeder also helps in taking the feeds to the next level as to scalping, blending, packing, washing crushing cooling etc. The efficiency of electromagnetic vibrating feeder is such that it suites many operation.

Production capacity : 40-480m³/h

Max particle : 100-300m³

Principle

Once the Electromagnetic Vibratory Feeder is engaged to work the electrical pulse in the coils produce a series of pulls that attracts the armature and deck. The counter force or restoring force pulls back the feeder. Thus creating the vibrating motion. The operating speed of the feeder is 60 cycles in a second which accounts to 3600 times per minute. With such pulls of the Electromagnetic Vibratory Feeder the feed experiences jumps and is conveyed forward. The vibrations are responsible for the forward movement and so with longer jump more the conveying of the feed. To increase the jumps the voltage supplied to the Electromagnetic Vibratory Feeder can be altered. By adjusting the voltage the discharge of feeds by the Electromagnetic Vibratory Feeder is modified and on keeping an account of the discharge the output rate is derived.

Y47系列自同步电机振动给料机-01 .jpg

Characteristic

1)extra heavy-duty construction

2)exclusive vibrator technology

3)Good performance-conditioning, no flushing phenomenon of materials

4)easy maintenance and low operating cost

Parameters

Y47 Electromagnetic Vibrating feeder

Model

feeding capacity(m³/h)

Max particle(mm)

Power

Weight

(mm)

 horizontal

(-10°)

(kw)

(kg)

Y4740100

400×1000×200

40

60

100

2×0.4

230

Y4740150

400×1500×200

40

60

100

2×0.75

340

Y4740200

400×2000×200

40

60

100

2×0.75

410

Y4750100

500×1000×250

60

90

120

2×0.75

350

Y4750150

500×1500×250

60

90

120

2×1. 5

420

Y4750250

500×2500×250

60

90

120

2×1. 5

760

Y4763150

630×1500×315

90

180

150

2×1. 5

660

Y4763200

630×2000×315

90

180

150

2×1. 5

750

Y4763250

630×2500×315

90

180

150

2×1. 5

890

Y4780150

800×1500×315

120

180

180

2×1. 5

650

Y4780200

800×2000×315

120

180

180

2×1. 5

700

Y4780250

800×2500×315

120

180

180

2×1. 5

780

Y47100150

1000×1500×315

200

200

200

2×1. 5

900

Y47100200

1000×2000×315

200

200

200

2×1. 5

1050

Y47100250

1000×2500×315

200

200

200

2×2. 2

1250

Y47120200

1200×2000×315

280

250

250

2×2. 2

1100

Y47120250

1200×2500×315

280

250

250

2×2. 2

1250

Y47120300

1200×3000×315

280

250

250

2×2. 2

1400

Y47160250

1600×2500×315

480

300

300

2×3 .7

1700

Y47160300

1600×3000×315

480

300

300

2×3 .7

2050
