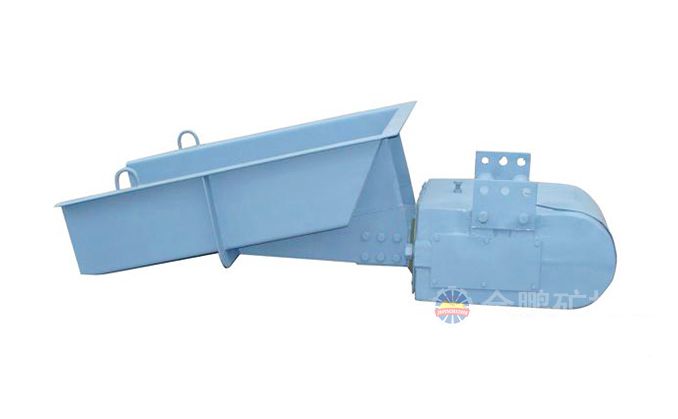

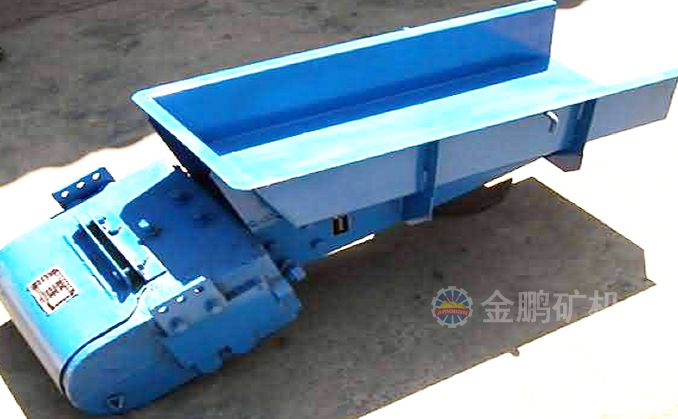

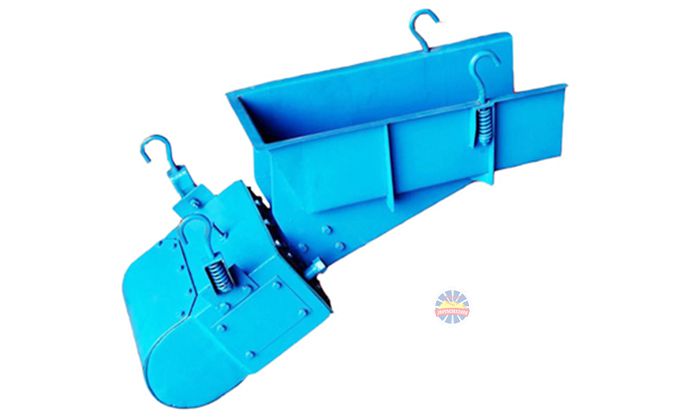

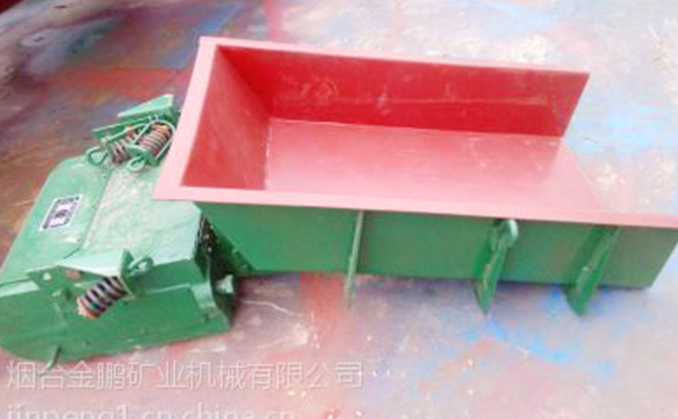

ZG Inertial vibration feeder

ZG(F) vibratory linear feeder is a new feeding equipment,which is widely used in metallurgy,coal,chemical,building materials,ceramics,grinding,food and other industrial and mining industries.

Scope of Application : Concentrator, smelter, cement plant, sands, mechanized foundry etc

Max particle : 60-420m³

Production capacity : 25-2000t/h

Principle

ZG vibratory linear feeder is a new feeding equipment,which is widely used in metallurgy,coal,chemical,building materials,ceramics,grinding,food and other industrial and mining industries.

ZG系列敞开型自同步惯性振动给料机-05 .jpg

Features

1. Feeding capacity is adjustable

2. Small volume, light weight, simple structure

3. Easy installation and convenient maintenance

4. Long service life of feeding trough

5. Flow stability, low noise and small power consumption

Parameters

Model

Max particle(mm)

Productivity(t/h)

Electromotor model

Power(KW)

Vibrational frequency(r/min)

Weight(Kg)

ZG-25

60

25

YZU-2.5-4

0.25×2

1500

90

ZG-30

60

30

YZU-2.5-4

0.25×2

1500

102

ZG-60

90

60

YZU-5-4

0.4×2

1500

158

ZG-80

160

80

YZU-5-4

0.4×2

1500

162

ZG-100

210

100

YZU-8-4

0.75×2

1500

209

ZG-200

270

200

YZU-17-4

0.75×2

1500

372

ZG-300

300

300

YZU-17-4

0.75×2

1500

556

ZG-400

300

400

YZU-20-4

2.0×2

1500

606

ZG-500

300

500

YZU-20-4

2.0×2

1500

672

ZG-750

400

750

YZU-30-6

2.5×2

1000

1720

ZG-1200

400

1200

YZU-30-6

2.5×2

1000

2986

ZG-1800

420

1800

YZU-75-6

5.5×2

1000

3965

ZG-2000

420

2000

YZU-75-6

5.5×2

1000

4440
